Cleaning & Surface Treatment
Ultrasonic Cleaner
KYG0457

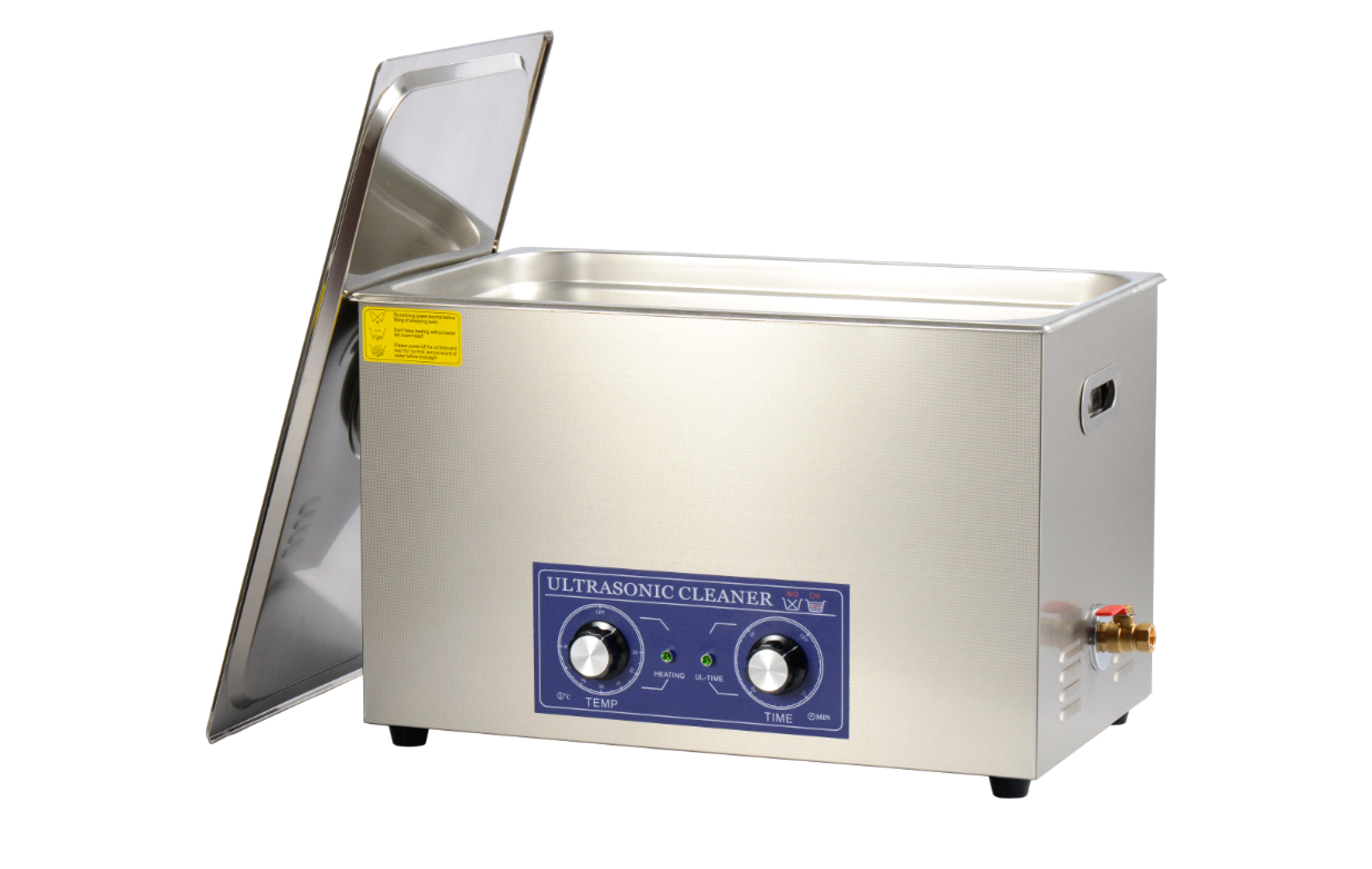

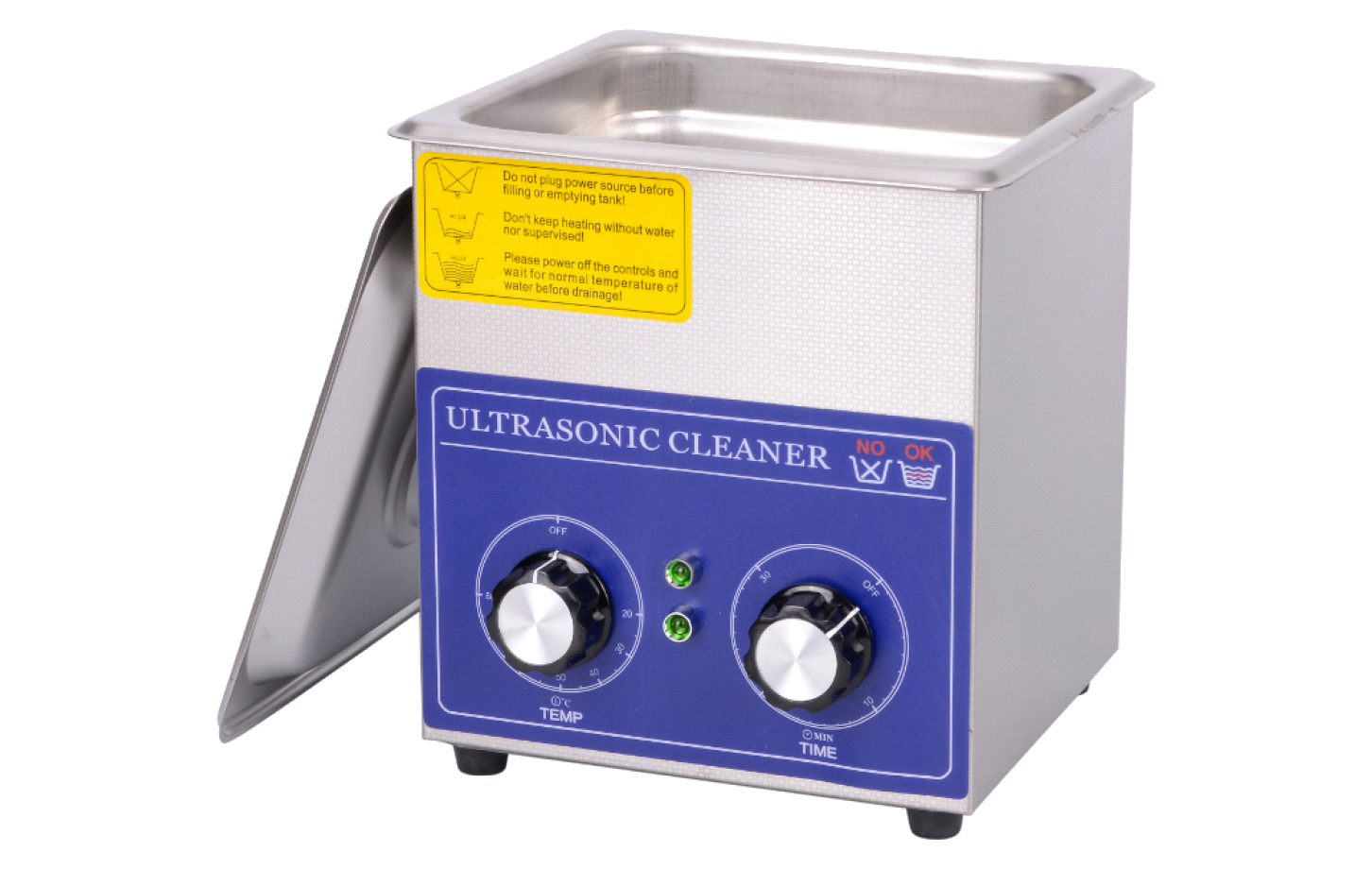

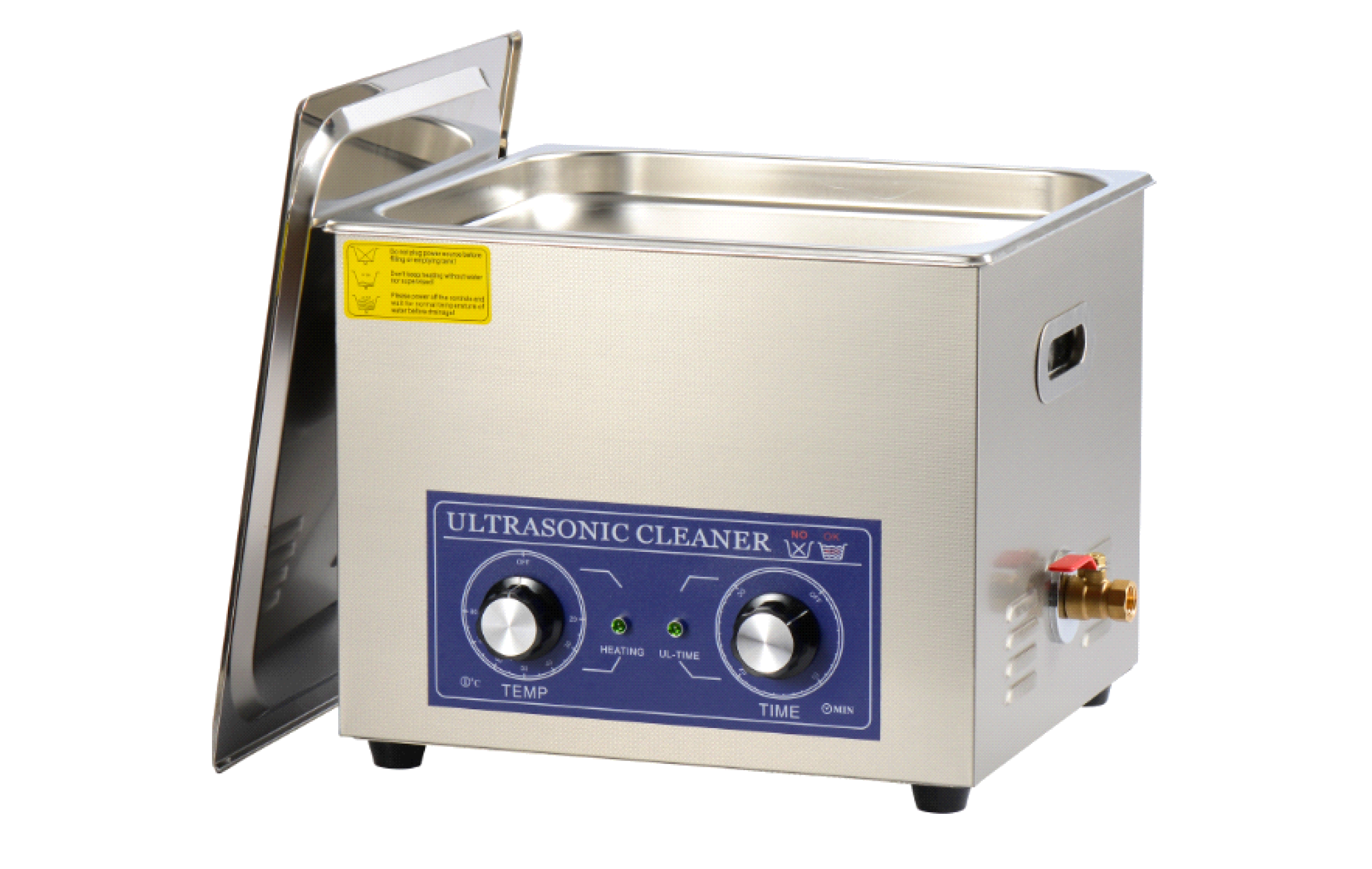

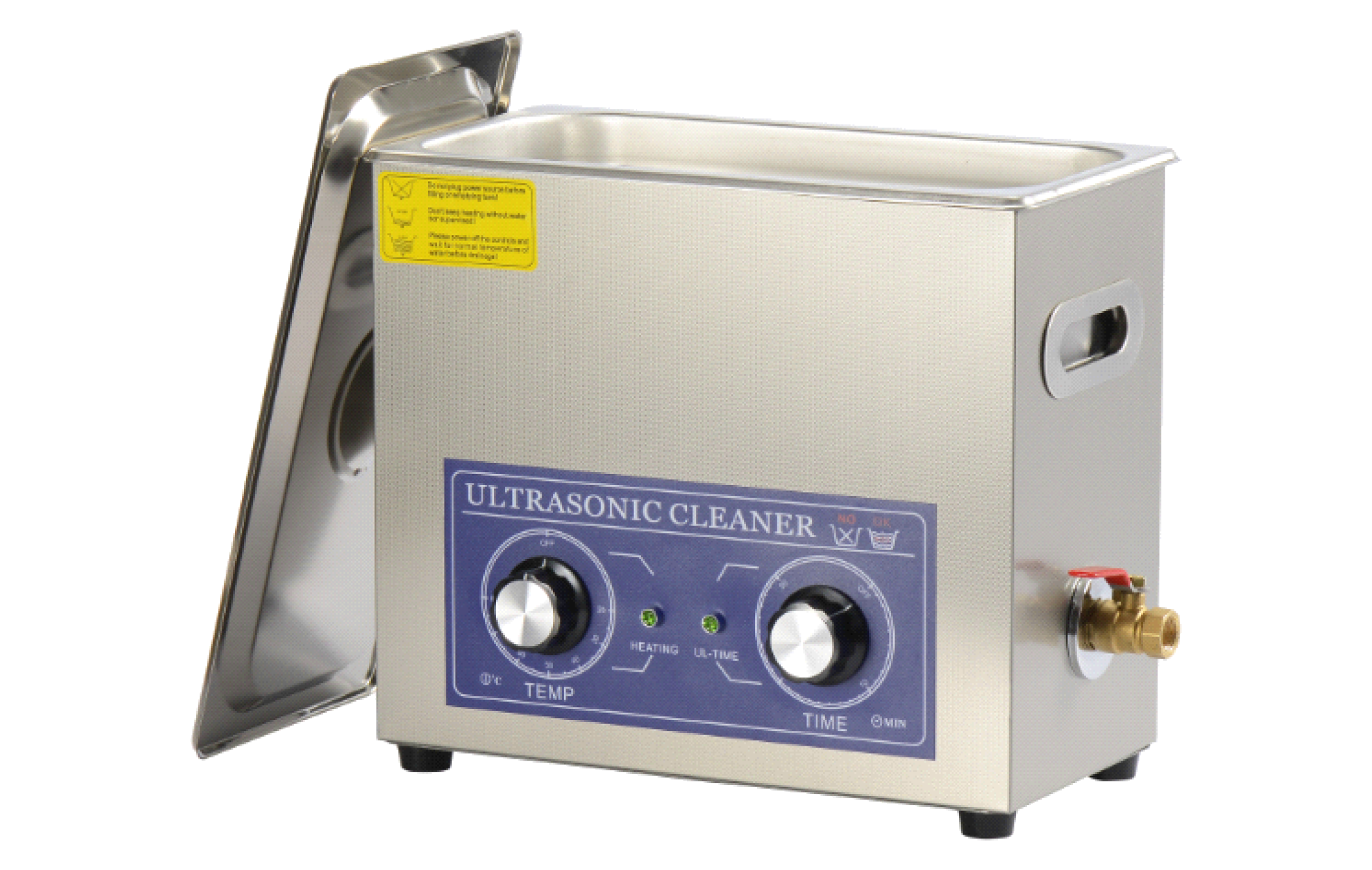

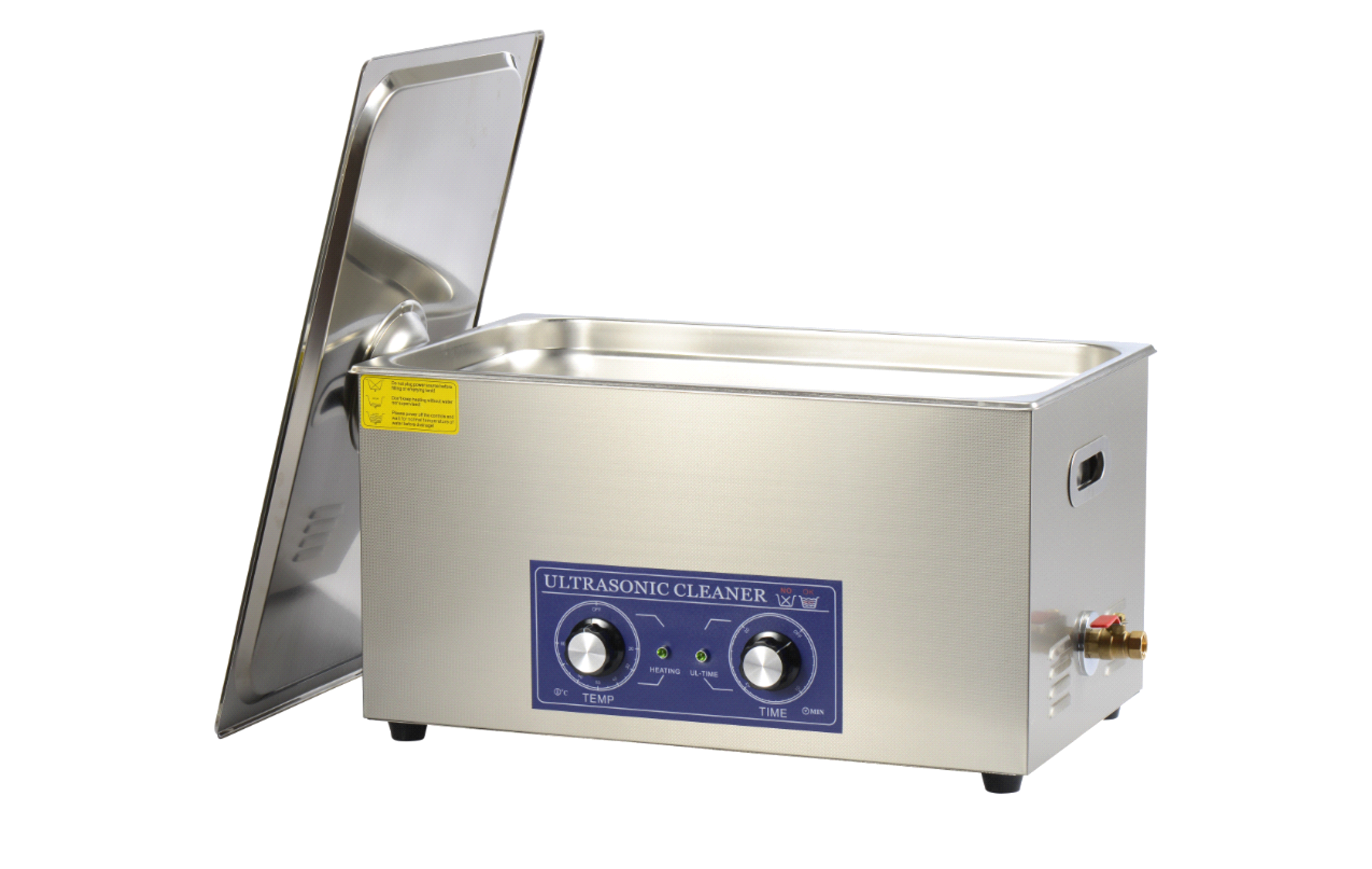

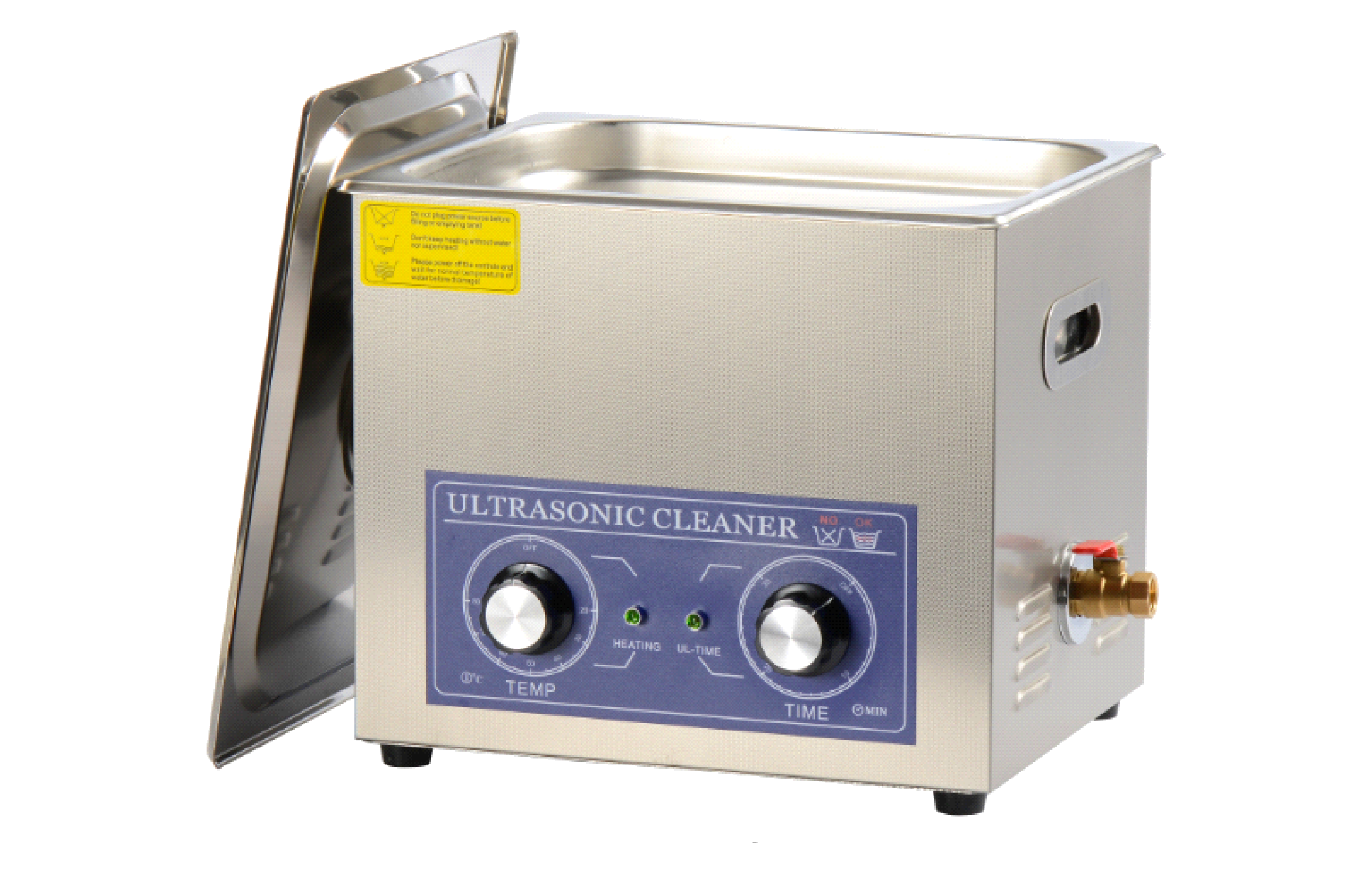

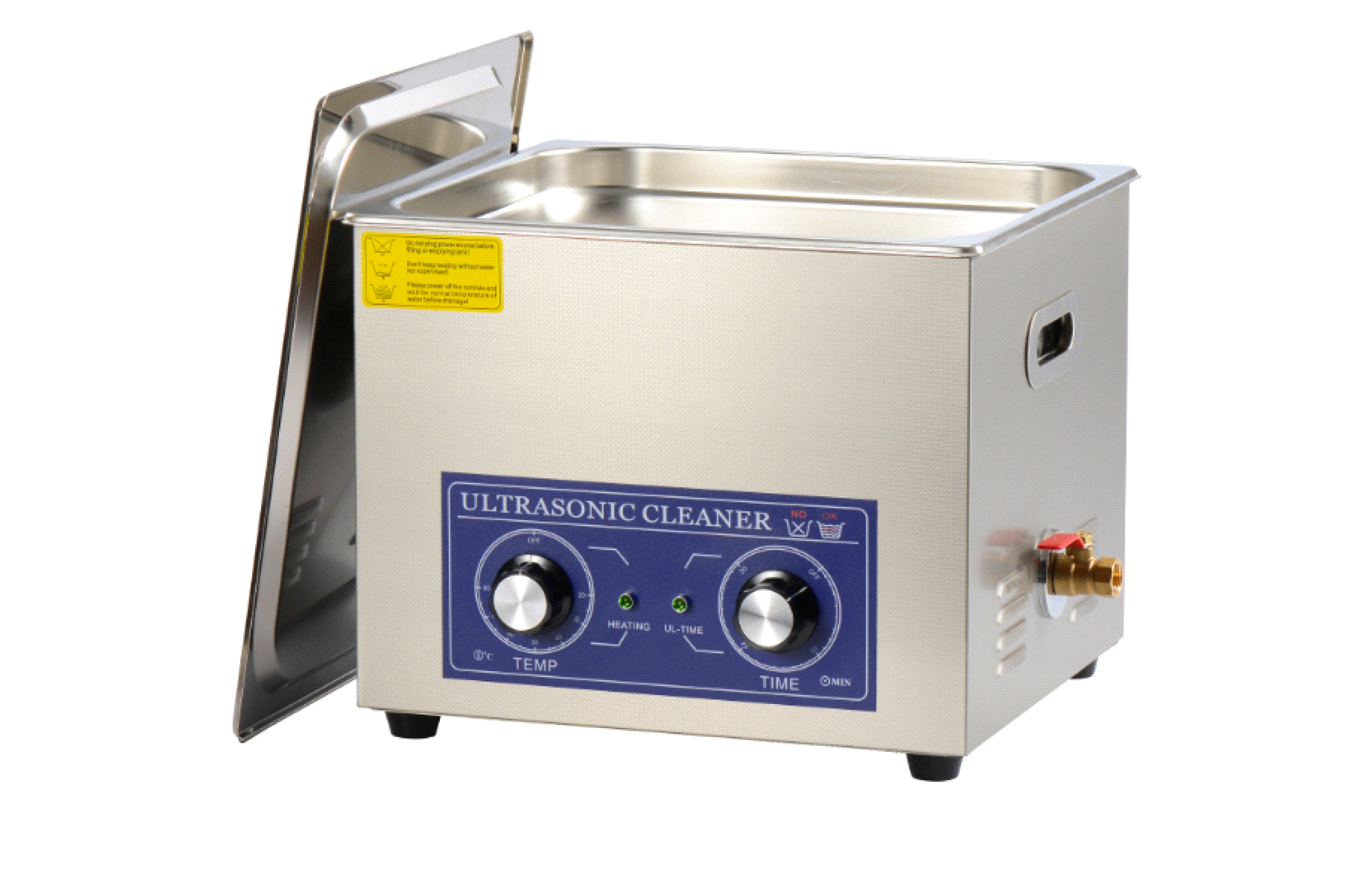

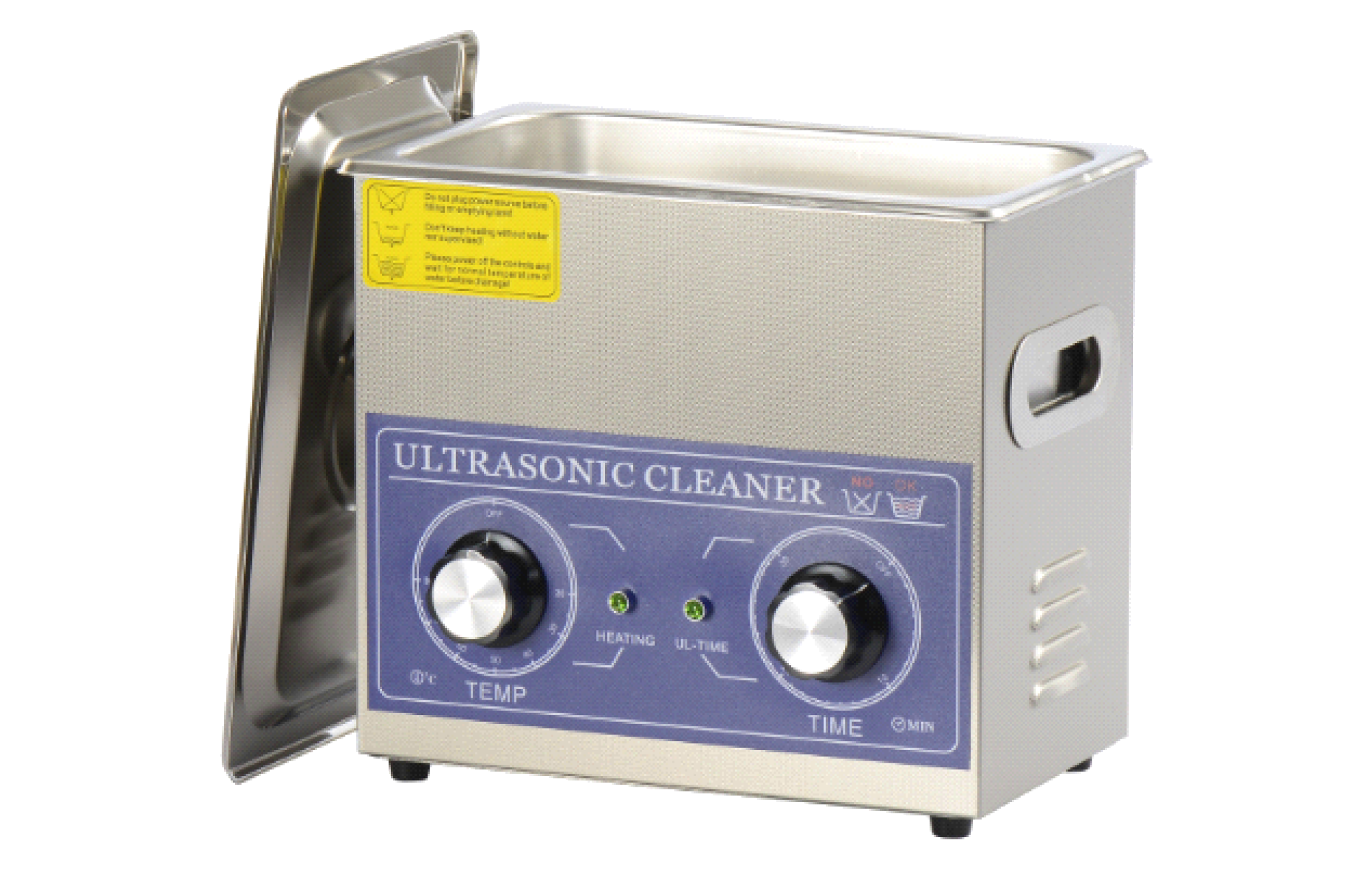

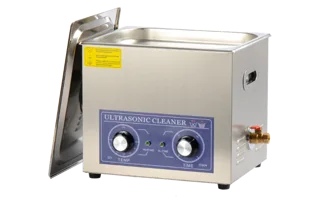

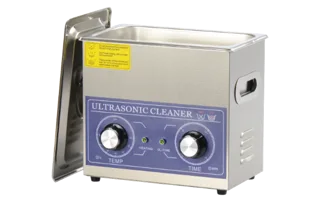

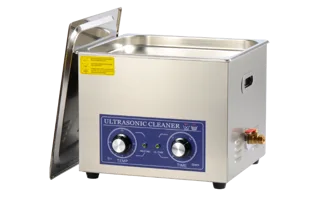

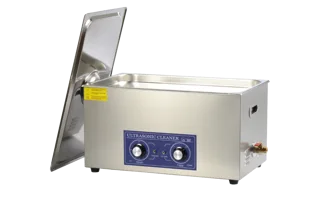

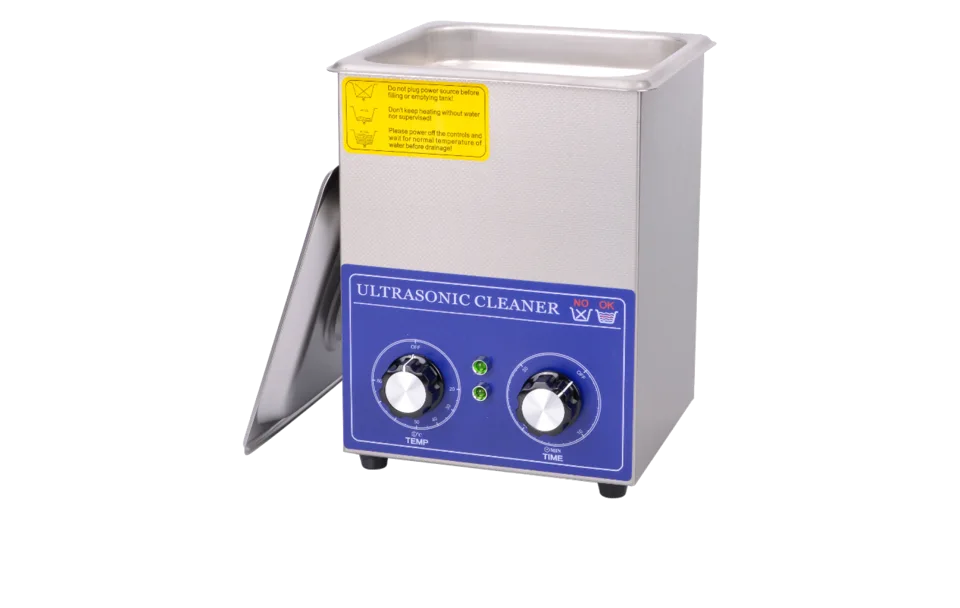

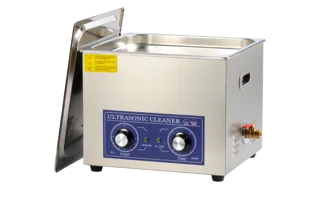

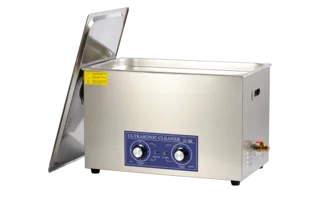

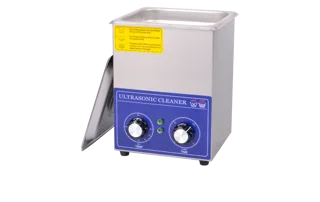

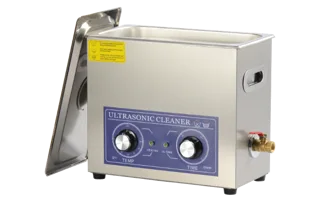

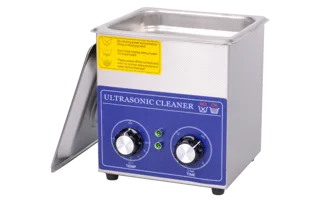

PS Series Ultrasonic Cleaner (Mechanical Timer Heating))
Stainless steel ultrasonic cleaner with mechanical timer and heater, suitable for diverse batch sizes.
Configure enquiry
Select model
Model: PS-08
Parameter comparison
Model parameter comparison
Compare PS-08, PS-10, PS-20, and PS-30.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected model
PS-08
KYG0457-PS-08
| Capacity | 1.3L |
|---|---|
| Heating Power | 100W |
| Ultrasonic Power | 60W |
| Inner Groove Size | 150*140*65mm |
| Net/Gross Weight | 2.3KG/2.4KG |
| Outline Dimension | 190*170*180mm |
| Packing Size | 245*240*265mm |
| Vibrator Quantity | 1 |
Selected model
PS-10
KYG0457-PS-10
| Capacity | 2L |
|---|---|
| Heating Power | 100W |
| Ultrasonic Power | 60W |
| Inner Groove Size | 150*140*100mm |
| Net/Gross Weight | 2.3KG/2.5KG |
| Outline Dimension | 190*170*210mm |
| Packing Size | 250*240*280mm |
| Vibrator Quantity | 1 |
Selected model
PS-20
KYG0457-PS-20
| Capacity | 3.2L |
|---|---|
| Heating Power | 100W |
| Ultrasonic Power | 120W |
| Inner Groove Size | 240*140*100mm |
| Net/Gross Weight | 3.65KG/3.94KG |
| Outline Dimension | 335*240*220mm |
| Packing Size | 350*260*310mm |
| Vibrator Quantity | 2 |
Selected model
PS-30
KYG0457-PS-30
| Capacity | 6.5L |
|---|---|
| Heating Power | 200W |
| Ultrasonic Power | 180W |
| Inner Groove Size | 300*150*150mm |
| Net/Gross Weight | 4.7KG/5.2KG |
| Outline Dimension | 325*180*280mm |
| Packing Size | 410*280*340mm |
| Vibrator Quantity | 3 |
Selected model
PS-40
KYG0457-PS-40
| Capacity | 10L |
|---|---|
| Heating Power | 200W |
| Ultrasonic Power | 240W |
| Inner Groove Size | 300*240*150mm |
| Net/Gross Weight | 5.7KG/7.56KG |
| Outline Dimension | 325*270*280mm |
| Packing Size | 435*395*340mm |
| Vibrator Quantity | 4 |
Selected model
PS-60
KYG0457-PS-60
| Capacity | 15L |
|---|---|
| Heating Power | 400W |
| Ultrasonic Power | 360W |
| Inner Groove Size | 330*300*150mm |
| Net/Gross Weight | 7.5KG/9.64KG |
| Outline Dimension | 360*330*310mm |
| Packing Size | 480*350*380mm |
| Vibrator Quantity | 6 |
Selected model
PS-80
KYG0457-PS-80
| Capacity | 22L |
|---|---|
| Heating Power | 600W |
| Ultrasonic Power | 480W |
| Inner Groove Size | 500*150*150mm |
| Net/Gross Weight | 12KG/12.5KG |
| Outline Dimension | 530*330*310mm |
| Packing Size | 600*420*390mm |
| Vibrator Quantity | 8 |
Selected model
PS-100
KYG0457-PS-100
| Capacity | 30L |
|---|---|
| Heating Power | 600W |
| Ultrasonic Power | 600W |
| Inner Groove Size | 500*300*200mm |
| Net/Gross Weight | 13.8KG/14.3KG |
| Outline Dimension | 530*330*340mm |
| Packing Size | 660*420*407mm |
| Vibrator Quantity | 10 |
Selected variant
PS-08
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
PS-08
Compare variant
PS-10
Heating Power
DifferentSelected variant
Compare variant
Ultrasonic Power
DifferentSelected variant
Compare variant
Inner Groove Size
DifferentSelected variant
Compare variant
Net/Gross Weight
DifferentSelected variant
Compare variant
Outline Dimension
DifferentSelected variant
Compare variant
Packing Size
DifferentSelected variant
Compare variant
Vibrator Quantity
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonModel | ||||||||
|---|---|---|---|---|---|---|---|---|
| Capacity | 1.3L | 2L | 3.2L | 6.5L | 10L | 15L | 22L | 30L |
| Heating Power | 100W | 100W | 100W | 200W | 200W | 400W | 600W | 600W |
| Ultrasonic Power | 60W | 60W | 120W | 180W | 240W | 360W | 480W | 600W |
| Inner Groove Size | 150*140*65mm | 150*140*100mm | 240*140*100mm | 300*150*150mm | 300*240*150mm | 330*300*150mm | 500*150*150mm | 500*300*200mm |
| Net/Gross Weight | 2.3KG/2.4KG | 2.3KG/2.5KG | 3.65KG/3.94KG | 4.7KG/5.2KG | 5.7KG/7.56KG | 7.5KG/9.64KG | 12KG/12.5KG | 13.8KG/14.3KG |
| Outline Dimension | 190*170*180mm | 190*170*210mm | 335*240*220mm | 325*180*280mm | 325*270*280mm | 360*330*310mm | 530*330*310mm | 530*330*340mm |
| Packing Size | 245*240*265mm | 250*240*280mm | 350*260*310mm | 410*280*340mm | 435*395*340mm | 480*350*380mm | 600*420*390mm | 660*420*407mm |
| Vibrator Quantity | 1 | 1 | 2 | 3 | 4 | 6 | 8 | 10 |
Specifications
| Power Supply | 110V/60Hz/220V/50Hz |
|---|---|
| Ultrasonic Frequency | 40KHz |
Overview
Highlights
- Simple rotary controls streamline operation for any user
- Multiple tank sizes accommodate diverse cleaning tasks
- Stainless steel body stands up to heavy-duty conditions
Applications
- Precision instrument cleaning
- Manufacturing and maintenance workshops
- Medical and dental tool cleaning
Overview
PS Series Ultrasonic Cleaner (Mechanical Timer Heating)) combines high-frequency ultrasonic waves with mechanical heating controls to deliver thorough and efficient cleaning. Its stainless steel construction ensures durability and reliability for repeated industrial and laboratory use. Featuring easy-to-use rotary dial controls for both timer and heater, this series allows precise adjustments to cleaning duration and temperature, optimizing cleaning outcomes. Available in various tank capacities ranging from 1.3L up to 30L, it caters to both small and large cleaning demands, effectively removing contaminants without harsh chemicals.
Typical uses
- Precision cleaning of scientific instruments and glassware
- Maintenance cleaning of mechanical components
- Cleaning delicate electronics, jewelry, and medical tools
