Cleaning & Surface Treatment
Ultrasonic Cleaner
KYG0450

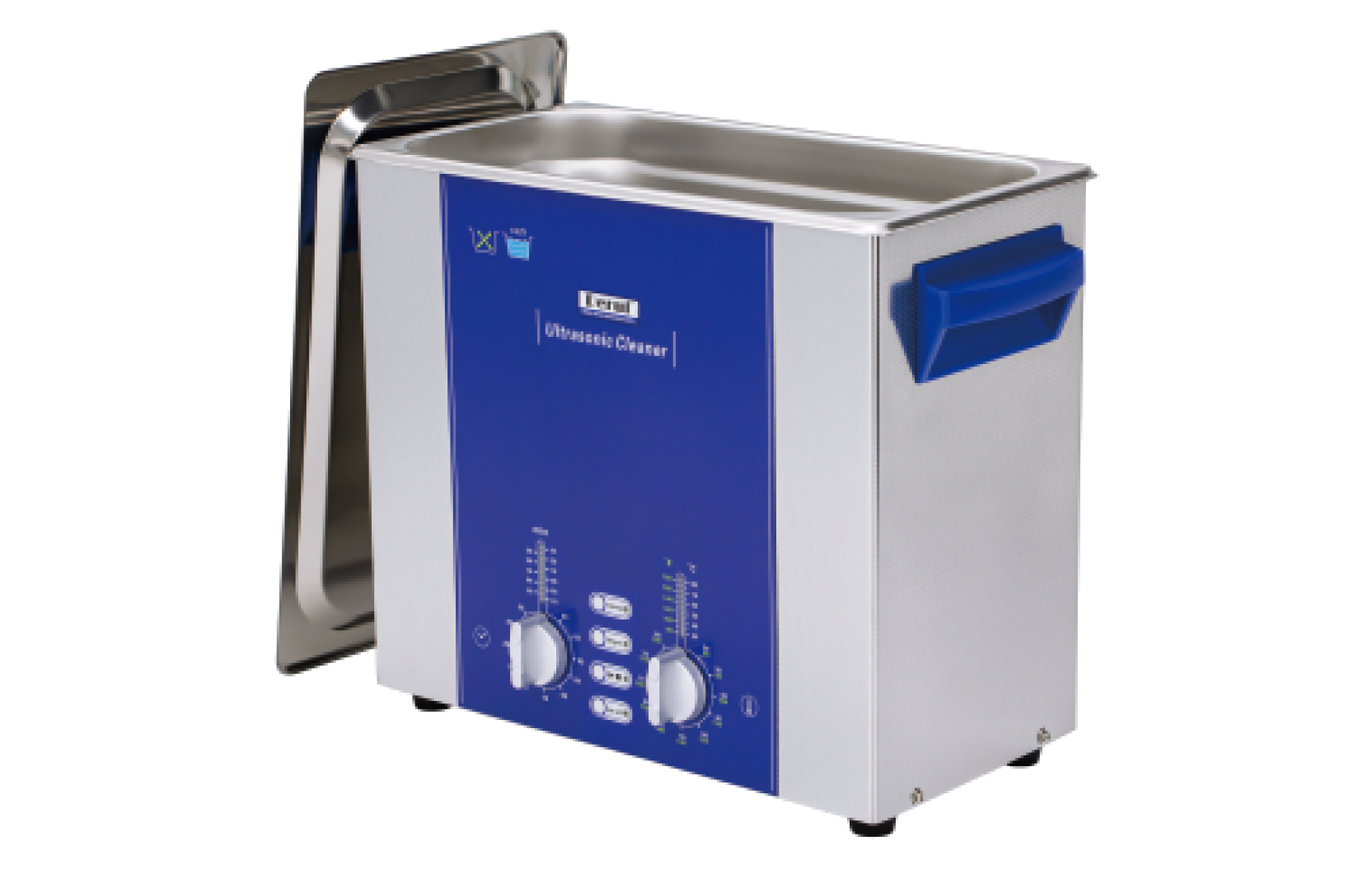

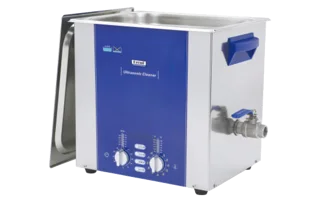

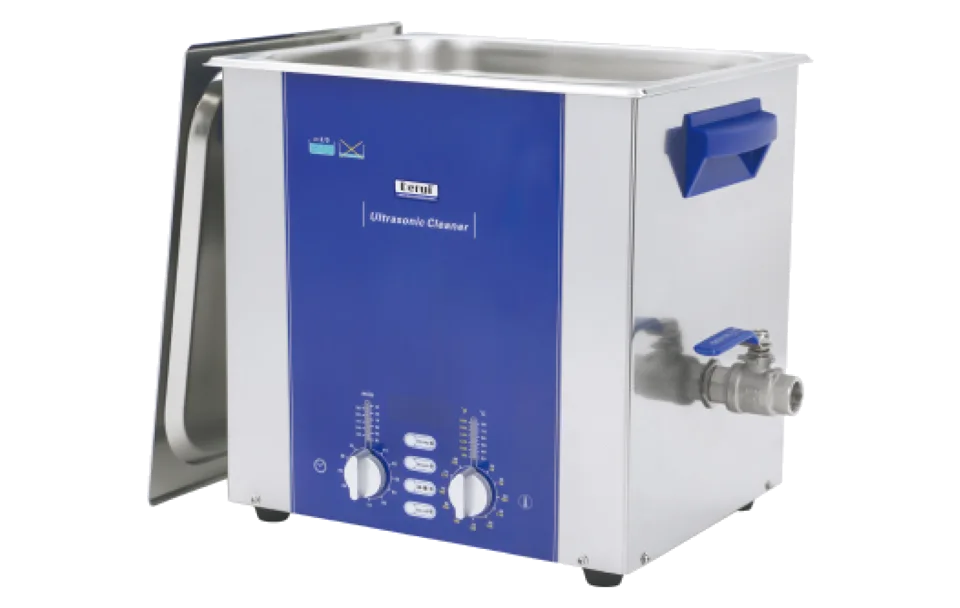

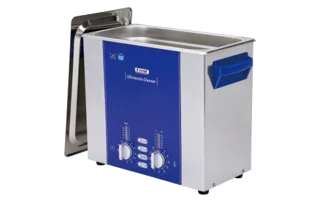

DR-DS Series Ultrasonic Cleaner
Versatile ultrasonic cleaners with mechanical and touch controls, timer, temperature adjustment, and varied capacities.
Configure enquiry
Select model
Model: DR-DS20
Parameter comparison
Model parameter comparison
Compare DR-DS20, DR-DS30, DR-DS40, and DR-DS60.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected model
DR-DS20
KYG0450-DR-DS20
| Capacity | 2L |
|---|---|
| Heating Power | 100W |
| Ultrasonic Power | 80W |
| Inner Groove Size | 150*138*100mm |
| Outline Dimension | 178*165*220mm |
| Packing Size | 250*260*300mm |
| Weight | 2.2kg |
| Drain Valve | No |
| Vibrating Head | 1 |
Selected model
DR-DS30
KYG0450-DR-DS30
| Capacity | 3L |
|---|---|
| Heating Power | 150W |
| Ultrasonic Power | 160W |
| Inner Groove Size | 240*138*100mm |
| Outline Dimension | 270*160*220mm |
| Packing Size | 350*250*310mm |
| Weight | 3.2kg |
| Drain Valve | No |
| Vibrating Head | 2 |
Selected model
DR-DS40
KYG0450-DR-DS40
| Capacity | 4L |
|---|---|
| Heating Power | 220W |
| Ultrasonic Power | 160W |
| Inner Groove Size | 300*150*105mm |
| Outline Dimension | 325*175*240mm |
| Packing Size | 420*300*350mm |
| Weight | 3.7kg |
| Drain Valve | No |
| Vibrating Head | 2 |
Selected model
DR-DS60
KYG0450-DR-DS60
| Capacity | 6L |
|---|---|
| Heating Power | 270W |
| Ultrasonic Power | 240W |
| Inner Groove Size | 300*150*150mm |
| Outline Dimension | 330*180*300mm |
| Packing Size | 420*300*400mm |
| Weight | 4.7kg |
| Drain Valve | No |
| Vibrating Head | 4 |
Selected model
DR-DS100
KYG0450-DR-DS100
| Capacity | 10L |
|---|---|
| Heating Power | 310W |
| Ultrasonic Power | 320W |
| Inner Groove Size | 300*240*160mm |
| Outline Dimension | 330*270*320mm |
| Packing Size | 430*360*420mm |
| Weight | 5.2kg |
| Drain Valve | Yes |
| Vibrating Head | 5 |
Selected model
DR-DS130
KYG0450-DR-DS130
| Capacity | 13L |
|---|---|
| Heating Power | 420W |
| Ultrasonic Power | 400W |
| Inner Groove Size | 300*240*200mm |
| Outline Dimension | 330*270*340mm |
| Packing Size | 430*360*450mm |
| Weight | 6.5kg |
| Drain Valve | Yes |
| Vibrating Head | 6 |
Selected model
DR-DS150
KYG0450-DR-DS150
| Capacity | 15L |
|---|---|
| Heating Power | 470W |
| Ultrasonic Power | 480W |
| Inner Groove Size | 325*300*150mm |
| Outline Dimension | 350*330*350mm |
| Packing Size | 450*420*420mm |
| Weight | 7.5kg |
| Drain Valve | Yes |
| Vibrating Head | 6 |
Selected model
DR-DS200
KYG0450-DR-DS200
| Capacity | 20L |
|---|---|
| Heating Power | 470W |
| Ultrasonic Power | 480W |
| Inner Groove Size | 325*300*200mm |
| Outline Dimension | 350*330*380mm |
| Packing Size | 460*420*450mm |
| Weight | 8kg |
| Drain Valve | Yes |
| Vibrating Head | 6 |
Selected model
DR-DS220
KYG0450-DR-DS220
| Capacity | 22L |
|---|---|
| Heating Power | 470W |
| Ultrasonic Power | 480W |
| Inner Groove Size | 500*300*110mm |
| Outline Dimension | 530*330*350mm |
| Packing Size | 640*420*450mm |
| Weight | 8.75kg |
| Drain Valve | Yes |
| Vibrating Head | 6 |
Selected model
DR-DS300L
KYG0450-DR-DS300L
| Capacity | 30L |
|---|---|
| Heating Power | 620W |
| Ultrasonic Power | 640W |
| Inner Groove Size | 500*300*200mm |
| Outline Dimension | 530*330*360mm |
| Packing Size | 640*420*450mm |
| Weight | 8.9kg |
| Drain Valve | Yes |
| Vibrating Head | 8 |
Selected model
DR-DS450
KYG0450-DR-DS450
| Capacity | 45L |
|---|---|
| Heating Power | 1000W |
| Ultrasonic Power | 1280W |
| Inner Groove Size | 500*300*300mm |
| Outline Dimension | 600*440*530mm |
| Packing Size | 600*440*530mm |
| Weight | 30kg |
| Drain Valve | Yes |
| Vibrating Head | 16 |
Selected variant
DR-DS20
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
DR-DS20
Compare variant
DR-DS30
Heating Power
DifferentSelected variant
Compare variant
Ultrasonic Power
DifferentSelected variant
Compare variant
Inner Groove Size
DifferentSelected variant
Compare variant
Outline Dimension
DifferentSelected variant
Compare variant
Packing Size
DifferentSelected variant
Compare variant
Weight
DifferentSelected variant
Compare variant
Drain Valve
DifferentSelected variant
Compare variant
Vibrating Head
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonModel | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | 2L | 3L | 4L | 6L | 10L | 13L | 15L | 20L | 22L | 30L | 45L |
| Heating Power | 100W | 150W | 220W | 270W | 310W | 420W | 470W | 470W | 470W | 620W | 1000W |
| Ultrasonic Power | 80W | 160W | 160W | 240W | 320W | 400W | 480W | 480W | 480W | 640W | 1280W |
| Inner Groove Size | 150*138*100mm | 240*138*100mm | 300*150*105mm | 300*150*150mm | 300*240*160mm | 300*240*200mm | 325*300*150mm | 325*300*200mm | 500*300*110mm | 500*300*200mm | 500*300*300mm |
| Outline Dimension | 178*165*220mm | 270*160*220mm | 325*175*240mm | 330*180*300mm | 330*270*320mm | 330*270*340mm | 350*330*350mm | 350*330*380mm | 530*330*350mm | 530*330*360mm | 600*440*530mm |
| Packing Size | 250*260*300mm | 350*250*310mm | 420*300*350mm | 420*300*400mm | 430*360*420mm | 430*360*450mm | 450*420*420mm | 460*420*450mm | 640*420*450mm | 640*420*450mm | 600*440*530mm |
| Weight | 2.2kg | 3.2kg | 3.7kg | 4.7kg | 5.2kg | 6.5kg | 7.5kg | 8kg | 8.75kg | 8.9kg | 30kg |
| Drain Valve | No | No | No | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Vibrating Head | 1 | 2 | 2 | 4 | 5 | 6 | 6 | 6 | 6 | 8 | 16 |
Specifications
| Temperature Range | 30-80°C |
|---|---|
| Timer Range | 1-4h |
| Functionality | Degas, Sweep, Pause |
Overview
Highlights
- Easy operation with both mechanical knobs and touch buttons
- Powerful cleaning with degas and sweep modes for high performance
- Available in sizes from 2L to 45L to fit various cleaning needs
Applications
- Cleaning laboratory glassware and medical tools
- Maintenance of automotive and mechanical parts
- Jewelry and watch ultrasonic cleaning
Overview
The DR-DS Series ultrasonic cleaners are built for precision cleaning tasks, offering both mechanical and touch button controls for user convenience. With adjustable temperature settings (30–80°C) and timer options from 1 to 4 hours, these units deliver reliable and customizable cleaning power. Enhanced by degas and sweep functionalities, they ensure thorough results, even for delicate or complex items.
Available in a wide range of capacities, the DR-DS Series supports laboratory, industrial, and maintenance environments alike—enabling efficient cleaning of tools, glassware, and mechanical components. Multiple vibrating head options and power levels provide targeted ultrasonic action for different cleaning demands.
Typical uses
These ultrasonic cleaners are ideal for use in labs, repair shops, and medical facilities, as well as for cleaning precision parts, jewelry, and small machinery components.
