Cleaning & Surface Treatment
Ultrasonic Cleaner
KYG0451

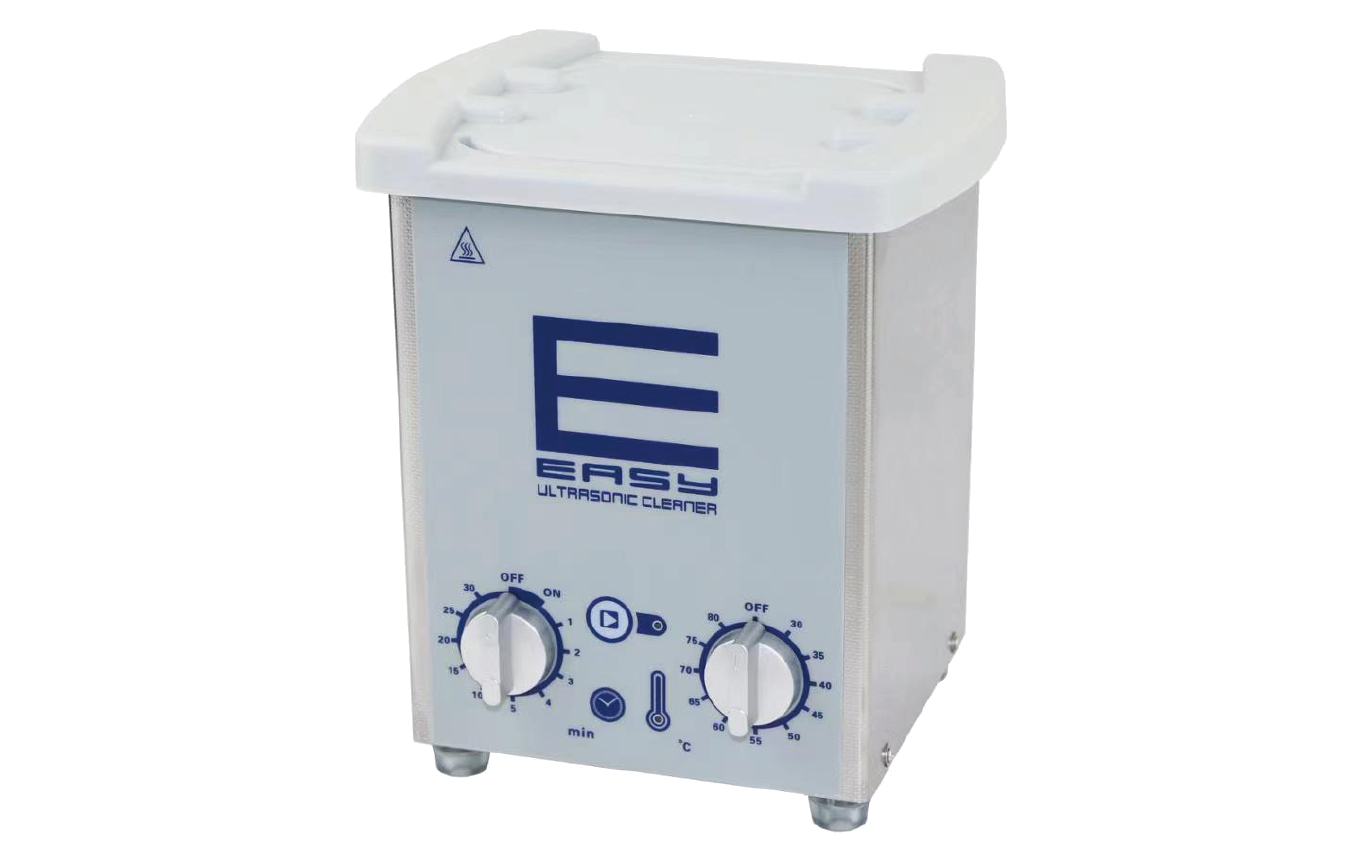

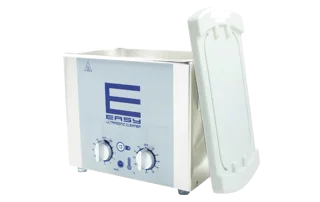

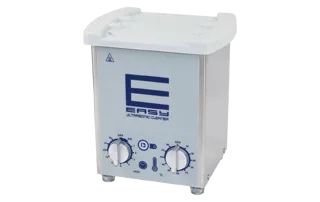

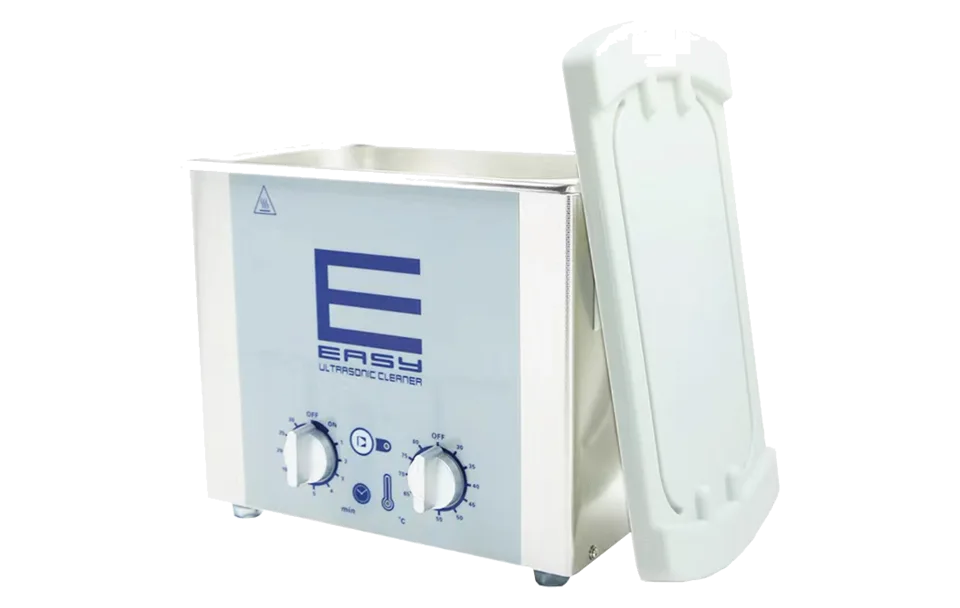

DE Series Ultrasonic Cleaner
Versatile ultrasonic cleaner for precise and thorough component and instrument cleaning in labs or industry.
Configure enquiry
Select model
Model: DR-DE20
Parameter comparison
Model parameter comparison
Compare DR-DE20, DR-DE30, DR-DE40, and DR-DE60.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected model
DR-DE20
KYG0451-DR-DE20
| Capacity | 2L |
|---|---|
| Heating Power (W) | 100 |
| Ultrasonic Power (W) | 80 |
| Inner Groove Size | 150×138×100 |
| Outline Dimension | 178×165×220 |
| Packing Size | 250×260×300 |
| Weight (Kg) | 2.2 |
| Drain Valve | No |
| Vibrating Head | 1 |
Selected model
DR-DE30
KYG0451-DR-DE30
| Capacity | 3L |
|---|---|
| Heating Power (W) | 150 |
| Ultrasonic Power (W) | 160 |
| Inner Groove Size | 240×138×100 |
| Outline Dimension | 270×160×220 |
| Packing Size | 350×250×310 |
| Weight (Kg) | 3.2 |
| Drain Valve | No |
| Vibrating Head | 2 |
Selected model
DR-DE40
KYG0451-DR-DE40
| Capacity | 4L |
|---|---|
| Heating Power (W) | 220 |
| Ultrasonic Power (W) | 160 |
| Inner Groove Size | 300×152×100 |
| Outline Dimension | 325×175×240 |
| Packing Size | 420×300×350 |
| Weight (Kg) | 3.7 |
| Drain Valve | No |
| Vibrating Head | 2 |
Selected model
DR-DE60
KYG0451-DR-DE60
| Capacity | 6L |
|---|---|
| Heating Power (W) | 270 |
| Ultrasonic Power (W) | 240 |
| Inner Groove Size | 300×150×150 |
| Outline Dimension | 330×180×300 |
| Packing Size | 420×300×400 |
| Weight (Kg) | 4.7 |
| Drain Valve | No |
| Vibrating Head | 4 |
Selected model
DR-DE100
KYG0451-DR-DE100
| Capacity | 10L |
|---|---|
| Heating Power (W) | 310 |
| Ultrasonic Power (W) | 320 |
| Inner Groove Size | 300×240×150 |
| Outline Dimension | 330×270×320 |
| Packing Size | 430×360×420 |
| Weight (Kg) | 5.2 |
| Drain Valve | Yes |
| Vibrating Head | 5 |
Selected model
DR-DE130
KYG0451-DR-DE130
| Capacity | 13L |
|---|---|
| Heating Power (W) | 420 |
| Ultrasonic Power (W) | 400 |
| Inner Groove Size | 300×240×200 |
| Outline Dimension | 330×270×340 |
| Packing Size | 430×360×450 |
| Weight (Kg) | 6.5 |
| Drain Valve | Yes |
| Vibrating Head | 6 |
Selected model
DR-DE150
KYG0451-DR-DE150
| Capacity | 15L |
|---|---|
| Heating Power (W) | 470 |
| Ultrasonic Power (W) | 480 |
| Inner Groove Size | 325×300×150 |
| Outline Dimension | 350×330×350 |
| Packing Size | 450×420×420 |
| Weight (Kg) | 7.5 |
| Drain Valve | Yes |
| Vibrating Head | 6 |
Selected model
DR-DE200
KYG0451-DR-DE200
| Capacity | 20L |
|---|---|
| Heating Power (W) | 480 |
| Ultrasonic Power (W) | 480 |
| Inner Groove Size | 325×300×200 |
| Outline Dimension | 350×330×400 |
| Packing Size | 460×420×450 |
| Weight (Kg) | 8 |
| Drain Valve | Yes |
| Vibrating Head | 8 |
Selected model
DR-DE220
KYG0451-DR-DE220
| Capacity | 22L |
|---|---|
| Heating Power (W) | 470 |
| Ultrasonic Power (W) | 480 |
| Inner Groove Size | 500×300×150 |
| Outline Dimension | 530×330×350 |
| Packing Size | 640×420×450 |
| Weight (Kg) | 8.75 |
| Drain Valve | Yes |
| Vibrating Head | 6 |
Selected model
DR-DE300
KYG0451-DR-DE300
| Capacity | 30L |
|---|---|
| Heating Power (W) | 620 |
| Ultrasonic Power (W) | 640 |
| Inner Groove Size | 500×300×200 |
| Outline Dimension | 530×330×360 |
| Packing Size | 640×420×450 |
| Weight (Kg) | 13 |
| Drain Valve | Yes |
| Vibrating Head | 8 |
Selected model
DR-DE450
KYG0451-DR-DE450
| Capacity | 45L |
|---|---|
| Heating Power (W) | 1000 |
| Ultrasonic Power (W) | 1280 |
| Inner Groove Size | 500×300×300 |
| Outline Dimension | 600×440×530 |
| Packing Size | 650×490×580 |
| Weight (Kg) | 30 |
| Drain Valve | Yes |
| Vibrating Head | 16 |
Selected variant
DR-DE20
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
DR-DE20
Compare variant
DR-DE30
Heating Power (W)
DifferentSelected variant
Compare variant
Ultrasonic Power (W)
DifferentSelected variant
Compare variant
Inner Groove Size
DifferentSelected variant
Compare variant
Outline Dimension
DifferentSelected variant
Compare variant
Packing Size
DifferentSelected variant
Compare variant
Weight (Kg)
DifferentSelected variant
Compare variant
Drain Valve
DifferentSelected variant
Compare variant
Vibrating Head
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonModel | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | 2L | 3L | 4L | 6L | 10L | 13L | 15L | 20L | 22L | 30L | 45L |
| Heating Power (W) | 100 | 150 | 220 | 270 | 310 | 420 | 470 | 480 | 470 | 620 | 1000 |
| Ultrasonic Power (W) | 80 | 160 | 160 | 240 | 320 | 400 | 480 | 480 | 480 | 640 | 1280 |
| Inner Groove Size | 150×138×100 | 240×138×100 | 300×152×100 | 300×150×150 | 300×240×150 | 300×240×200 | 325×300×150 | 325×300×200 | 500×300×150 | 500×300×200 | 500×300×300 |
| Outline Dimension | 178×165×220 | 270×160×220 | 325×175×240 | 330×180×300 | 330×270×320 | 330×270×340 | 350×330×350 | 350×330×400 | 530×330×350 | 530×330×360 | 600×440×530 |
| Packing Size | 250×260×300 | 350×250×310 | 420×300×350 | 420×300×400 | 430×360×420 | 430×360×450 | 450×420×420 | 460×420×450 | 640×420×450 | 640×420×450 | 650×490×580 |
| Weight (Kg) | 2.2 | 3.2 | 3.7 | 4.7 | 5.2 | 6.5 | 7.5 | 8 | 8.75 | 13 | 30 |
| Drain Valve | No | No | No | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Vibrating Head | 1 | 2 | 2 | 4 | 5 | 6 | 6 | 8 | 6 | 8 | 16 |
Specifications
| Capacity | 2L / 3L / 4L / 6L / 10L / 13L / 15L / 20L / 22L / 30L / 45L |
|---|---|
| Ultrasonic Power (W) | 80 / 160 / 160 / 240 / 320 / 400 / 480 / 480 / 480 / 640 / 1280 |
| Heating Power (W) | 100 / 150 / 220 / 270 / 310 / 420 / 470 / 480 / 470 / 620 / 1000 |
| Vibrating Head | 1 / 2 / 2 / 4 / 5 / 6 / 6 / 6 / 6 / 8 / 16 |
| Drain Valve | Available on 10L and up models |
| Weight (Kg) | 2.2–30 |
| Inner Groove Size (Mm) | 150×138×100 (2L) up to 500×300×300 (45L) |
| Outline Dimension (Mm) | 178×165×220 (2L) up to 600×440×530 (45L) |
| Packing Size (Mm) | 250×260×300 (2L) up to 650×490×580 (45L) |
Overview
Highlights
- Flexible capacities and configurations for diverse cleaning needs
- Integrated heating improves removal of tough residues
- Durable stainless steel build, with drain valves for larger models
Applications
- Laboratory glassware cleaning
- Automotive and industrial parts degreasing
- Jewelry and medical instrument cleaning
Overview
The DE Series Ultrasonic Cleaner from EASY delivers powerful and efficient cleaning for a wide range of applications. Engineered for deep, precision cleaning, it utilizes advanced ultrasonic technology to remove contaminants from equipment, parts, and tools—reaching surfaces and crevices that manual cleaning cannot. Its rugged stainless steel body offers lasting durability, and larger capacity models feature convenient drain valves for ease of use in demanding environments.
Multiple tank sizes and power options make the DE series a flexible solution for laboratories, industrial workshops, and maintenance settings. The integrated heating function enhances cleaning results by loosening stubborn residues, ensuring consistently high levels of cleanliness with minimal operator intervention.
Typical uses
- Cleaning laboratory glassware
- Maintenance of precision machinery parts
- Industrial component degreasing
