Laser Spot Welding Machine
View details
←Back to product range
Welding, Laser & Engraving
Laser Jewelry Spot Welder
KYG0788

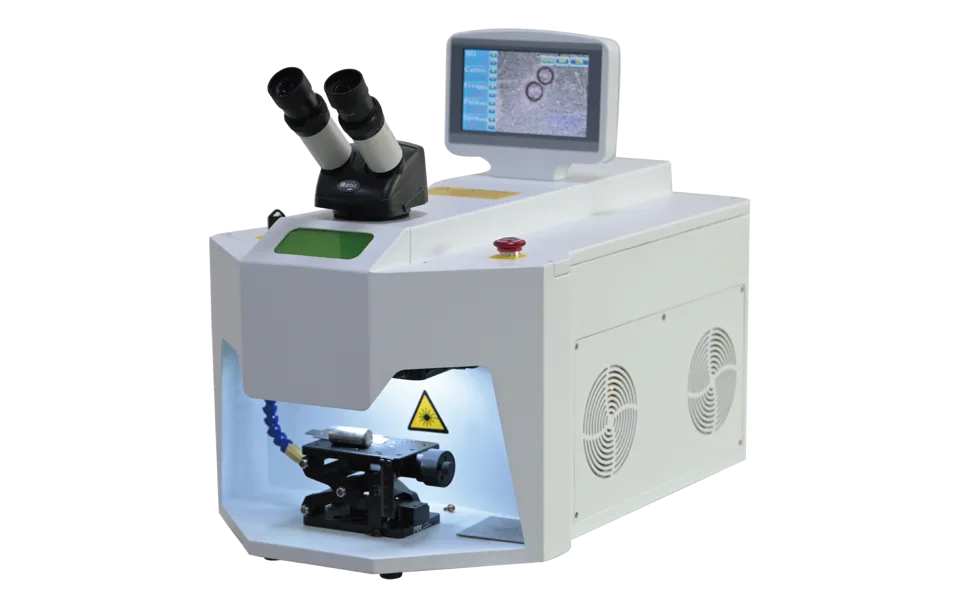

Laser Spot Welding Machine
High-power laser spot welder with advanced camera for demanding jewelry and industrial micro-welding.
Welding, Laser & Engraving
Specifications
| Input Voltage | AC220 V ± 10% 50 Hz |
|---|---|
| Laser Continuously Adjustable | 1.0~100 Hz Continuously Adjustable |
| Pulse Width | 0.1~20ms Grading Is Adjustable |
| Spot Adjustment Range | ± 3.0 mm |
| Maximum Laser Power | 200 W |
| Maximum Laser Pulse Energy | 60J |
| Power Consumption of Main Engine | ≤3.5 kW |
| Aiming and Positioning | Built-in Camera System and Microscope |
| Ambient Temperature | ≤40 °C |
| Cooling Mode | Water Cooling |
| Control Mode | Touch Control |
| Laser Wavelength | 1064nm |
| Display Touch Screen Size | 7寸 (inches) |
| Volume | L630 x W400 x H503 mm |
| Machine Weight | 44 kg |
Overview
Highlights
- Powerful output suits tough metals and larger parts
- Precision targeting via advanced camera/microscope
- Rugged build with advanced cooling for intensive use
Applications
- Heavy-duty jewelry and stainless steel spot welding
- Industrial small part repair or joining
- Laboratories and workshops with precision welding needs
Overview
This high-power laser spot welding machine delivers exceptional energy output, making it the preferred choice for demanding precision and heavy-duty welding. Equipped with an advanced camera and microscope system, it ensures pinpoint accuracy for intricate jobs. Enhanced cooling and a robust chassis provide durability even in continuous use environments, making it suitable for professional workshops and laboratories.
A large touch screen user interface enables easy fine-tuning and rapid switchovers between tasks, boosting productivity.
Typical uses
- Heavy-duty jewelry and stainless steel spot welding
- Repair or assembly of industrial small parts
- Laboratory micro-welding and high-precision workshop projects
