Laser Jewelry Spot Welder
KYG0784

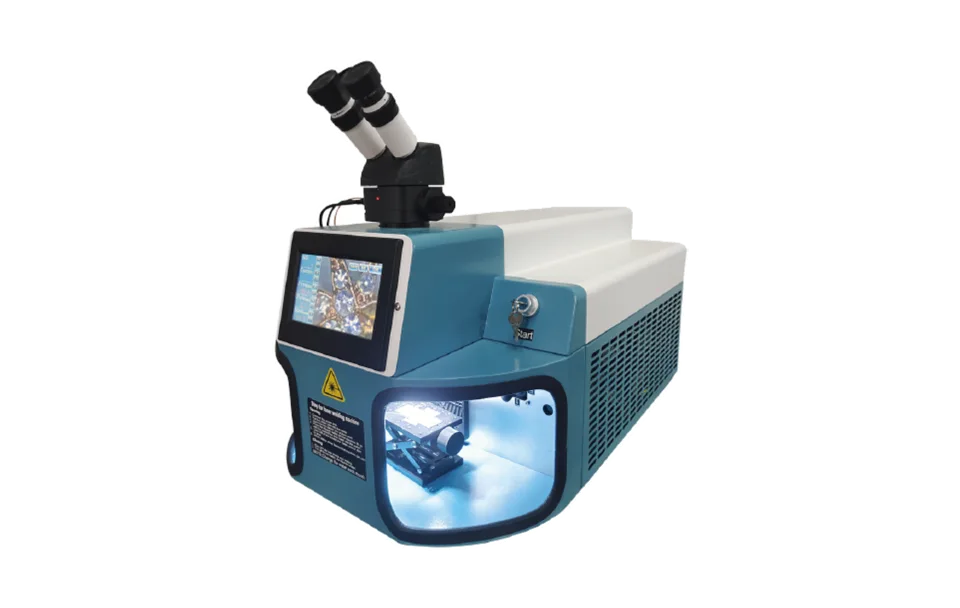

150W Laser Spot Welding Machine with Video Display
A1
150W Nd:YAG laser spot welder with integrated video display for precision tasks.
Welding, Laser & Engraving
Specifications
| Laser Type | Nd: YAG |
|---|---|
| Single Specification | 7*130 |
| Laser Tube Specification | 8*100*250 |
| Adjustable Current | 1%–100% |
| Laser Frequency | 1–20Hz |
| Pulse Width | 0.1–10ms |
| Maximum Laser Output Power | 150W |
| Peak Value of Electric Power | 2KW |
| Welding Depth | 3*3*5mm |
| Adjustable Spot | 0.1mm–3mm |
| Observation System | Microscope |
| Chiller | Natural Air Cooling |
| Power Consumption of Main Engine | 1kW/h |
| Power Demand | Single-phase Ac220V |
| Weldable Materials | Gold, Rose Gold, 18k, 925 Silver, Copper |
| Machine Size | 800 x 500 x 400mm |
| The Size of the Boxed Wooden Case | 960 x 610 x 700mm |
Overview
Highlights
- Real-time weld monitoring via integrated video display
- Fine control for delicate and high-precision work
- Suitable for a variety of precious metal and alloy jobs
Applications
- Jewelry manufacturing and repair
- Precision electronics assembly and repair
- Custom dental device fabrication
Overview
150W Laser Spot Welding Machine with Video Display features a built-in video display, enabling precise, real-time monitoring during delicate welding operations. Well-suited for high-value or intricate work, it’s a preferred choice in sectors such as jewelry making, electronics assembly, and dental appliance production, where accuracy and visibility are paramount.
