Welding, Laser & Engraving
Laser Jewelry Spot Welder
KYG0779

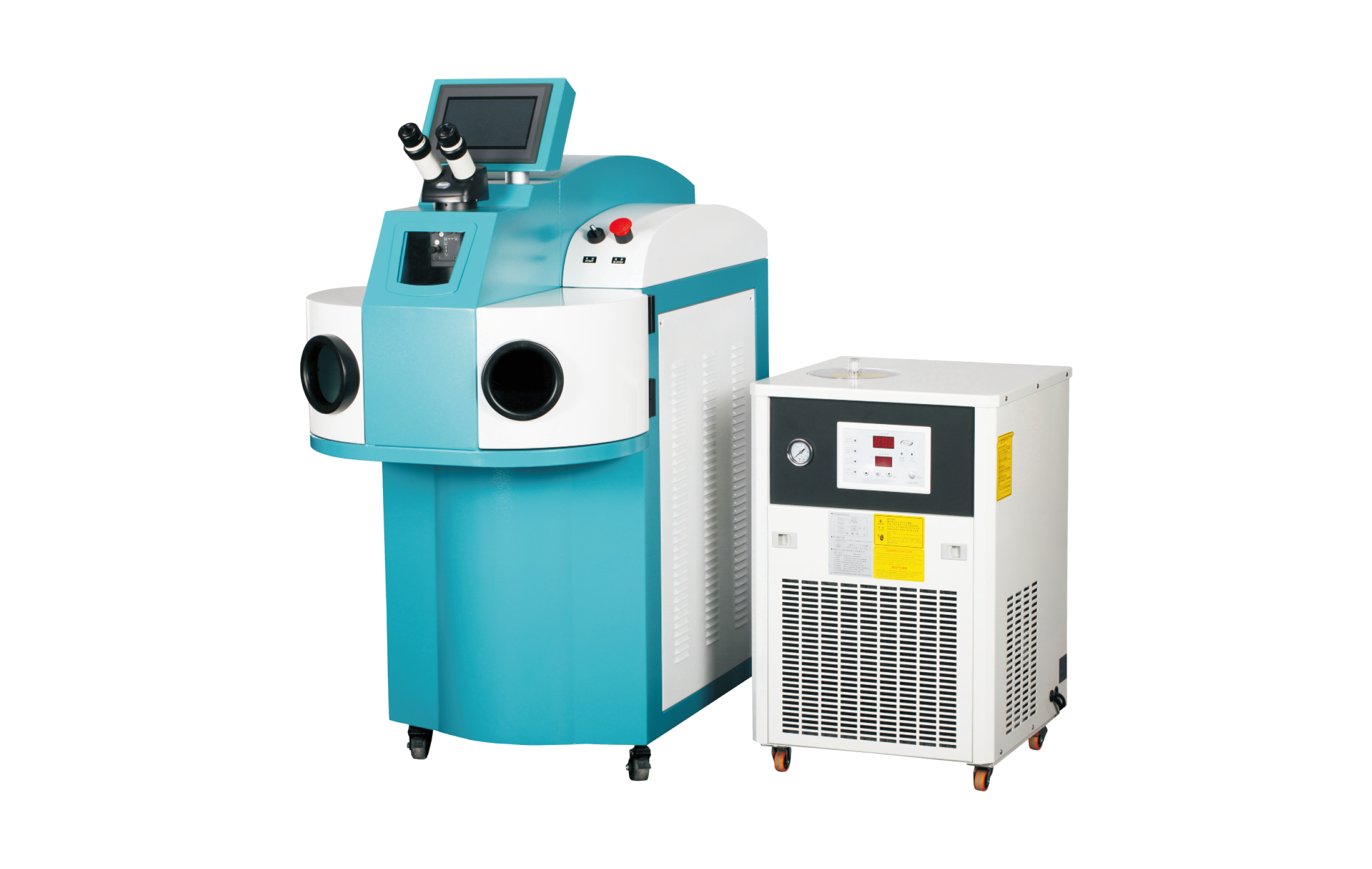

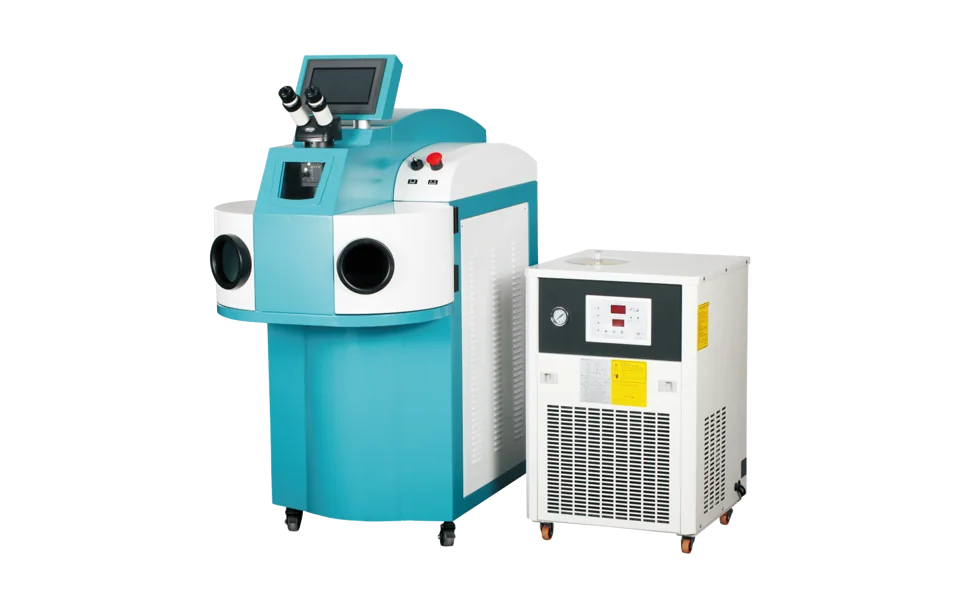

KYG Laser Spot Welding Machine
Customization Available
KYG Laser Spot Welding Machine offers high-precision Nd:YAG laser welding for metal repairs and restorations, ensuring minimal heat impact and enhanced operator comfort.
Configure enquiry
Select option
Laser Max Power: 200W
Parameter comparison
Variant parameter comparison
Compare 200W and 400W.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected option
200W
KYG0779-200W
| Power | 6.0KW |
|---|---|
| Power Supply | 220V |
| Chiller Size | 360x680x590mm |
| Gross Weight | 180kg |
| Main Unit Size | 670x1080x1200mm |
Selected option
400W
KYG0779-400W
| Power | 9.0KW |
|---|---|
| Power Supply | 380V |
| Chiller Size | 560x630x1000mm |
| Gross Weight | 230kg |
| Main Unit Size | 1030x590x1200mm |
Selected variant
200W
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
200W
Compare variant
400W
Power Supply
DifferentSelected variant
Compare variant
Chiller Size
DifferentSelected variant
Compare variant
Gross Weight
DifferentSelected variant
Compare variant
Main Unit Size
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonLaser Max Power | ||
|---|---|---|
| Power | 6.0KW | 9.0KW |
| Power Supply | 220V | 380V |
| Chiller Size | 360x680x590mm | 560x630x1000mm |
| Gross Weight | 180kg | 230kg |
| Main Unit Size | 670x1080x1200mm | 1030x590x1200mm |
Specifications
| Laser Medium | Nd: YAG |
|---|---|
| Laser Max Power | 200 W / 400 W |
| Power | 6.0 kW / 9.0 kW |
| Minimum Furnace Hearth | 0.1 mm |
| Wavelength | 1064 nm |
| Pulse Duration | ≤20 ms |
| Pulse Frequency | 50 Hz |
| Spot Diameter | 0.2–3.0 mm |
| Focusing Optics | Stereomicroscope with antidazzle protection |
| Spot Range | 0.1–3.0 mm |
| Power Supply | 220 V / 380 V |
| Main Unit Sizes | 670 × 1080 × 1200 mm / 1030 × 590 × 1200 mm |
| Chiller Sizes | 360 × 680 × 590 mm / 560 × 630 × 1000 mm |
| Gross Weight | 180 kg / 230 kg |
Overview
Highlights
- Delivers pinpoint accuracy for repairing fine and intricate metal pieces
- Minimizes heat-affected zones to protect delicate workpieces
- Safety features and clear optics enable comfortable, extended operation
Applications
- Jewellery creation, sizing, and repair
- Restoring and welding titanium eyeglass frames
- Precision restoration of watches and antique metalwork
Overview
KYG Laser Spot Welding Machine is engineered for detailed repair and restoration of metals, such as jewelry, watches, and titanium frames. Its Nd:YAG laser technology provides fine spot control for delicate joining, while minimal heat-affected zones help prevent damage to sensitive parts. Ergonomic features and built-in safety systems support reliable, extended use, which makes this machine suitable for professional environments where precision, durability, and operator safety are priorities.
Customization options are available on request. Scope can include branding, packaging, documentation, voltage or plug options, and selected configuration adjustments, depending on the model, order quantity, and project requirements.
