Welding, Laser & Engraving

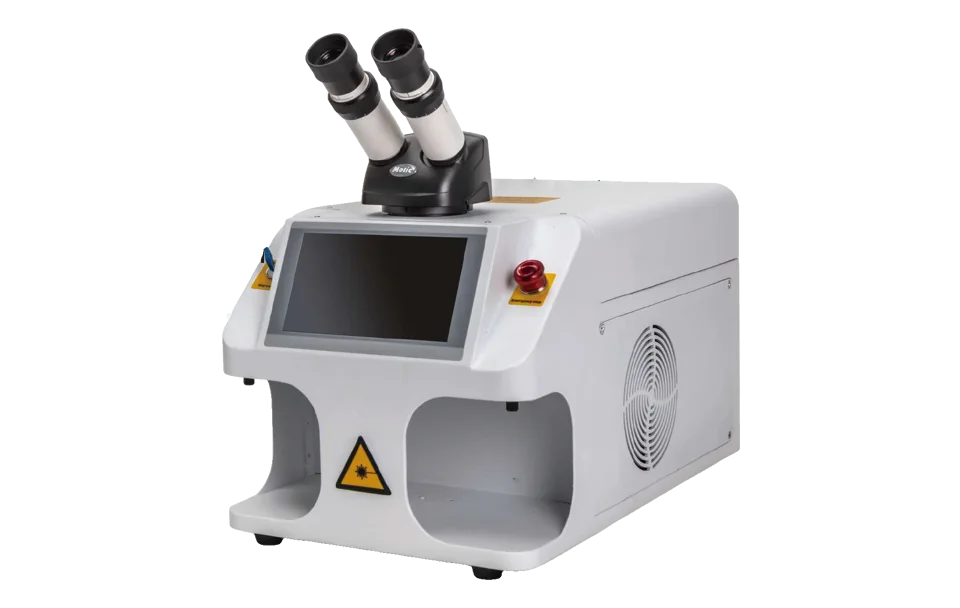

Laser Jewelry Spot Welder

KYG0786

Laser Spot Welding Machine

Compact laser spot welder with camera, ideal for jewelry and precision spot welding tasks.

Share product

WhatsApp

Welding, Laser & Engraving

Specifications

Input VoltageAC220V ± 10% 50HZ
Laser Continuously Adjustable1.0~15Hz Continuously Adjustable
Pulse Width0.1~10ms Grading Is Adjustable
Spot Adjustment Range± 3.0mm
Maximum Laser Power100W
Maximum Laser Pulse Energy40J
Power Consumption of Main Engine≤2KW
Aiming and PositioningCCD Camera System and Microscope
Ambient Temperature≤30℃
Cooling ModeWater Circulation Air Cooling
Control ModeTouch Control
Laser Wavelength1064nm
Display Touch Screen Size7寸 (inches)
VolumeL510 x W395 x H420mm
Machine Weight28KG

Overview

Highlights

  • CCD camera with microscope for precise, repeatable welds
  • Compact build with air cooling lowers maintenance costs
  • User-friendly touchscreen for fast setup and operation

Applications

  • Welding of gold and silver jewelry
  • Manual spot welding of fine metal parts
  • Microscope-aided precise micro-welding tasks

Overview

This compact laser spot welding machine is purpose-built for jewelry repair, fine metal work, and micro-welding operations. Outfitted with a CCD camera system and microscope, it streamlines precise targeting and alignment, making each weld consistent and clean. The machine's minimal footprint and efficient air cooling system keep ongoing maintenance and energy costs low, making it ideal for workshops prioritizing reliability and ease of use.

Users benefit from a simple touch screen interface, supporting both rapid setup and optimal control of welding parameters.

Typical uses

  • Perfect for gold, silver, and other jewelry welding
  • Highly effective for manual spot welding of tiny metal components
  • Excels at microscope-assisted micro-welding across delicate materials
