Melting & Casting
Precious Metal Granulating Machine
KYG0724

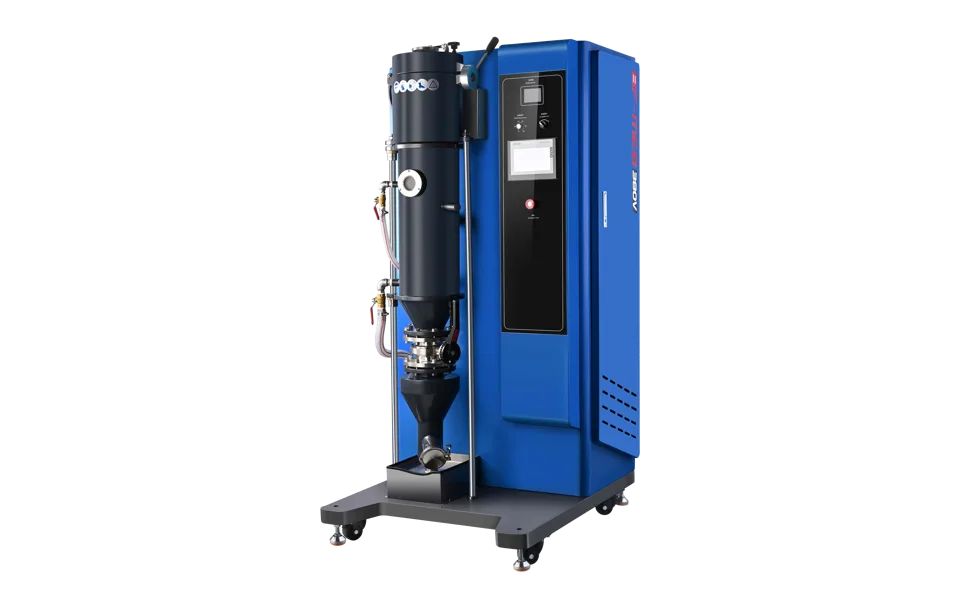

KYG VS5P/10P/20P Precious Metal Vacuum Granulating Machine
KYG · VS5P/VS10P/VS20P
Industrial vacuum granulating machine for precious metals, with PID control and up to 20 kg gold capacity.
Configure enquiry
Select model
Model Number: KYG-VS5P
Parameter comparison
Model parameter comparison
Compare KYG-VS5P, KYG-VS10P, and KYG-VS20P.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected model
KYG-VS5P
KYG0724-KYG-VS5P
| Power | 15 kW |
|---|---|
| Max Capacity | 24K Gold 5.0 kg / 925 Silver 2.5 kg |
| Dimension | 730*935*1600 mm |
| Casting Chamber Size | D275*H1100 mm |
| Weight | 175 KG |
Selected model
KYG-VS10P
KYG0724-KYG-VS10P
| Power | 15 kW |
|---|---|
| Max Capacity | 24K Gold 10.0 kg / 925 Silver 5.0 kg |
| Dimension | 800*1020*1700 mm |
| Casting Chamber Size | D330*H840 mm |
| Weight | 235 KG |
Selected model
KYG-VS20P
KYG0724-KYG-VS20P
| Power | 25 kW |
|---|---|
| Max Capacity | 24K Gold 20.0 kg / 925 Silver 10.0 kg |
| Dimension | 850*1050*1800 mm |
| Casting Chamber Size | D385*H1000 mm |
| Weight | 265 KG |
Selected variant
KYG-VS5P
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
KYG-VS5P
Compare variant
KYG-VS10P
Max Capacity
DifferentSelected variant
Compare variant
Dimension
DifferentSelected variant
Compare variant
Casting Chamber Size
DifferentSelected variant
Compare variant
Weight
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonModel Number | |||
|---|---|---|---|
| Power | 15 kW | 15 kW | 25 kW |
| Max Capacity | 24K Gold 5.0 kg / 925 Silver 2.5 kg | 24K Gold 10.0 kg / 925 Silver 5.0 kg | 24K Gold 20.0 kg / 925 Silver 10.0 kg |
| Dimension | 730*935*1600 mm | 800*1020*1700 mm | 850*1050*1800 mm |
| Casting Chamber Size | D275*H1100 mm | D330*H840 mm | D385*H1000 mm |
| Weight | 175 KG | 235 KG | 265 KG |
Specifications
| Power Source | Three phase 380V, 50/60Hz |
|---|---|
| Casting System | Vacuum casting system |
| Applicable Metal | Gold, K-Gold, Silver, Copper, Brass, Bronze, and their alloys |
| Melting Time | 5-6 min |
| Max Heating Temperature | 1600°C |
| Max. Temp Control K-Type | 1100°C |
| Protective Gas | Argon |
| Vacuum Pump (Optional) | 63 m³/hour |
| Control of Temperature | by PID |
| Accuracy of Temperature | ±2 degrees Celsius |
| Vacuum Filter | Y |
| Vacuum Leakage Detector | Y |
| Casting Chamber Lift | Y |
Overview
Highlights
- Precise PID temperature control ensures consistent melting for a range of metals.
- Vacuum and inert gas environment deliver oxidation-free, highly uniform metal grains.
- Electromagnetic stirring and rapid melting boost alloy uniformity and productivity.
Applications
- Jewelry manufacturing requiring high-purity, spherical metal grains.
- Refining precious metals for bar, coin, or investment product fabrication.
- Production of uniform metal granules for electronic or dental alloy casting.
Overview
The KYG VS5P/10P/20P Precious Metal Vacuum Granulating Machine is engineered for the efficient granulation of gold, silver, copper, and a range of precious and base metal alloys. Operating under a vacuum environment and utilizing argon as a protective gas, this machine ensures oxidation-free processing and consistently uniform spherical grains. Three model variants (VS5P, VS10P, VS20P) offer maximum gold handling capacities of 5 kg, 10 kg, and 20 kg respectively, all with advanced PID temperature control for melting up to 1600°C and rapid melting cycles of just 5-6 minutes.
Key features include electromagnetic stirring for superior alloy uniformity, PLC touchscreen controls, vacuum filtration, automatic leakage detection, and a sealed water-cooling cycle that delivers high-quality grains with minimal contamination. These capabilities make the KYG Vacuum Granulating Machine particularly suited for demanding jewelry manufacturing and precious metal refining applications where product purity, repeatability, and throughput are essential.
