Melting & Casting
Precious Metal Granulating Machine
KYG0722

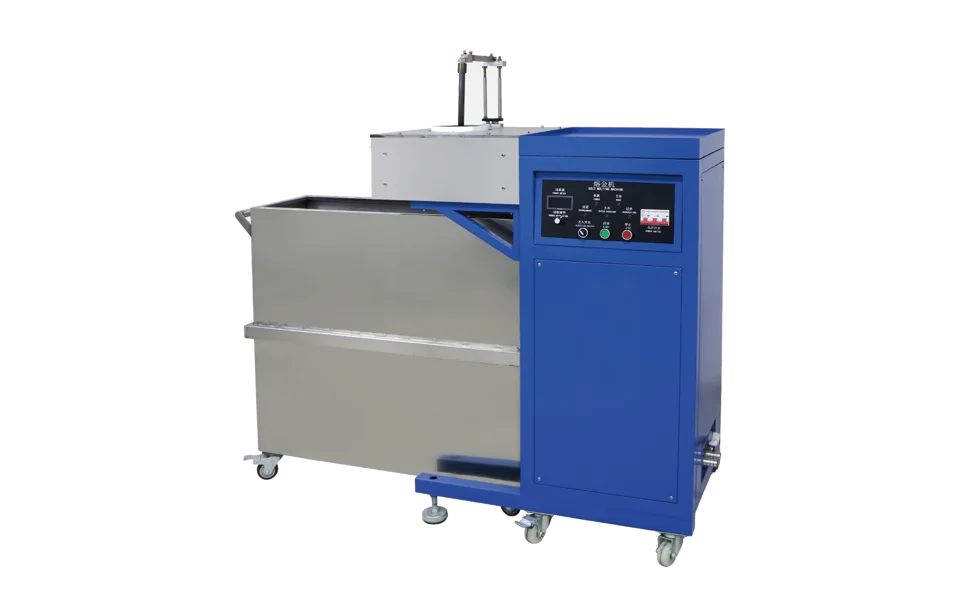

KYG JL15/25/35 Precious Metal Granulating Machine
KYG · JL15/JL25/JL35
Automated granulating machine for gold, silver, and copper with gravity casting and multiple capacity options.
Configure enquiry
Select model
Model Number: KYG-JL15
Parameter comparison
Model parameter comparison
Compare KYG-JL15, KYG-JL25, and KYG-JL35.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected model
KYG-JL15
KYG0722-KYG-JL15
| Power | 15 kW |
|---|---|
| Max Capacity | 24K Gold 6.0 kg / 925 Silver 3 kg |
| Weight | 150 KG |
Selected model
KYG-JL25
KYG0722-KYG-JL25
| Power | 25 kW |
|---|---|
| Max Capacity | 24K Gold 15.0 kg / 925 Silver 8.0 kg |
| Weight | 180 KG |
Selected model
KYG-JL35
KYG0722-KYG-JL35
| Power | 35 kW |
|---|---|
| Max Capacity | 24K Gold 30.0 kg / 925 Silver 16.0 kg |
| Weight | 220 KG |
Selected variant
KYG-JL15
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
KYG-JL15
Compare variant
KYG-JL25
Max Capacity
DifferentSelected variant
Compare variant
Weight
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonModel Number | |||
|---|---|---|---|
| Power | 15 kW | 25 kW | 35 kW |
| Max Capacity | 24K Gold 6.0 kg / 925 Silver 3 kg | 24K Gold 15.0 kg / 925 Silver 8.0 kg | 24K Gold 30.0 kg / 925 Silver 16.0 kg |
| Weight | 150 KG | 180 KG | 220 KG |
Specifications
| Power Source | 3 phase 380V, 50/60Hz |
|---|---|
| Applicable Metal | Gold, K-gold, silver, Copper |
| Casting Method | Gravity granulation |

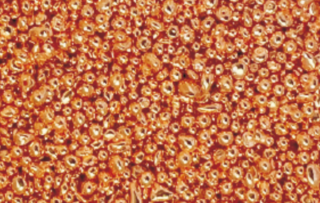

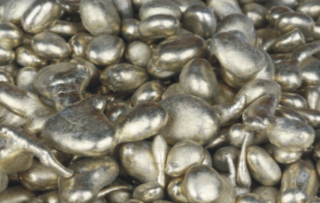

| Casting Material | Particles |
| Dimension | 1200*530*1200mm |
Overview
Highlights
- Supports gold, K-gold, silver, and copper granulation with rapid output.
- Advanced solid-state and low-voltage coil for enhanced operational safety.
- Automatic frequency tracking ensures stable, low-noise operation.
Applications
- Suitable for jewelry manufacturing requiring high-purity metal particles.
- Ideal for metal refineries processing gold, silver, and copper.
- Applicable in research labs for material development or testing.
Overview
The KYG JL15/25/35 Precious Metal Granulating Machine offers efficient and automatic production of metal granules from gold, silver, copper, and their alloys. Using advanced solid-state technology, it delivers rapid granulation with minimal noise and high reliability, employing a gravity casting method for consistent particle quality.
The machine features a low-voltage induction coil for improved safety and self-protection, and is equipped with automatic frequency tracking for stable operation. With multiple capacity variants available, it is well-suited for industrial-scale jewelry manufacturing, metal refining, and laboratory use.
