Melting & Casting
Continuous Casting Machine
KYG0723

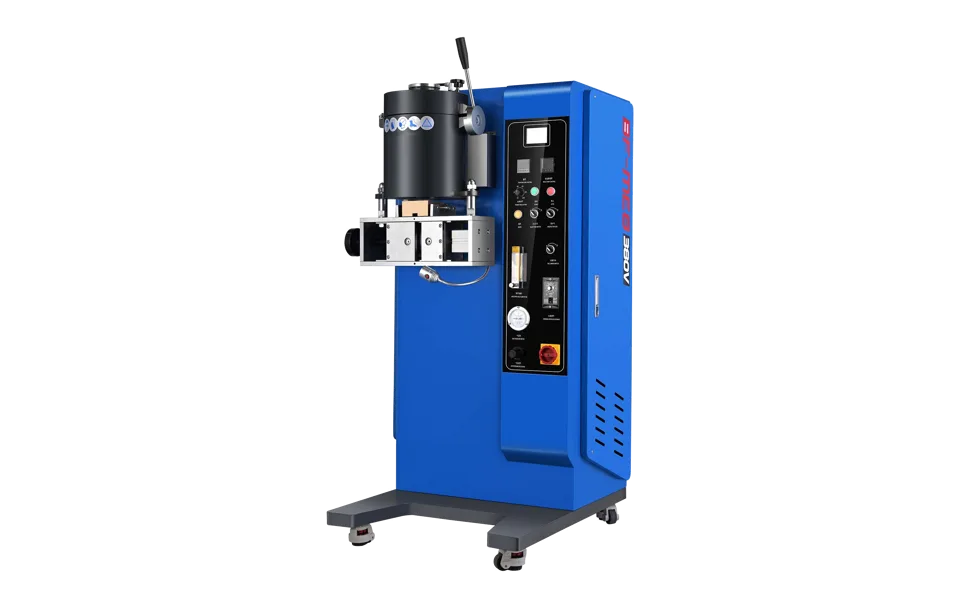

KYG LS4/8/50 Precious Metal Continuous Casting Machine
KYG · LS4/LS8/LS50
Continuous casting machine for gold, silver, copper alloys. PID temp control, 5–50 kg capacity, 40 cm/min output.
Configure enquiry
Select model
Model Number: KYG-LS4
Parameter comparison
Model parameter comparison
Compare KYG-LS4, KYG-LS8, and KYG-LS50.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected model
KYG-LS4
KYG0723-KYG-LS4
| Power | 15 kW |
|---|---|
| The Max Capacity | 24K Gold 5.0 kg / 18K Gold 3.5 kg / 925 Silver 2.5 kg |
| Max Current | 15A |
| Dimension | 1120×840×1560 mm |
| Weight | 195 kg |
| Melting Time | 5 min |
Selected model
KYG-LS8
KYG0723-KYG-LS8
| Power | 25 kW |
|---|---|
| The Max Capacity | 24K Gold 8.0 kg / 18K Gold 6.0 kg / 925 Silver 4.0 kg |
| Max Current | 26A |
| Dimension | 1120×840×1560 mm |
| Weight | 205 kg |
| Melting Time | 8 min |
Selected model
KYG-LS50
KYG0723-KYG-LS50
| Power | 45 kW |
|---|---|
| The Max Capacity | Gold 50 kg |
| Max Current | 120A |
| Dimension | 1100×1350×1830 mm |
| Weight | 300kg |
| Melting Time | 15min |
Selected variant
KYG-LS4
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
KYG-LS4
Compare variant
KYG-LS8
The Max Capacity
DifferentSelected variant
Compare variant
Max Current
DifferentSelected variant
Compare variant
Dimension
DifferentSelected variant
Compare variant
Weight
DifferentSelected variant
Compare variant
Melting Time
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonModel Number | |||
|---|---|---|---|
| Power | 15 kW | 25 kW | 45 kW |
| The Max Capacity | 24K Gold 5.0 kg / 18K Gold 3.5 kg / 925 Silver 2.5 kg | 24K Gold 8.0 kg / 18K Gold 6.0 kg / 925 Silver 4.0 kg | Gold 50 kg |
| Max Current | 15A | 26A | 120A |
| Dimension | 1120×840×1560 mm | 1120×840×1560 mm | 1100×1350×1830 mm |
| Weight | 195 kg | 205 kg | 300kg |
| Melting Time | 5 min | 8 min | 15min |
Specifications
| Power Source | Three phase 380V, 50/60Hz |
|---|---|
| Applicable Metal | Gold, Silver, Copper, Brass, Bronze, and their alloys |
| Casting Application | Rod: φ4–φ20mm; Tube: Min φ9×12mm, Max φ52×60mm; Bar: Min T5×W5mm, Max T20×W70mm |
| Max Temperature Control R-Type | 1600℃ |
| Max Temperature Control K-Type | 1100℃ |
| Max Drawing Speed | 40 cm/minute |
| Protective Gas | Nitrogen or argon |
| Heating System | Induction heating |
| Control of Temperature | By PID |
| Accuracy of Temperature | ±2 degrees Celsius |
Overview
Highlights
- Wide alloy compatibility—processes gold, silver, copper, brass, and bronze in various forms.
- Automated precise PID temperature control ensures high-quality and reliable casting output.
- Efficient production with fast melting, automatic stirring, and up to 50 kg melting capacity.
Applications
- Jewelry manufacturing requiring continuous rods, tubes, bars, and plates.
- Medium-to-large metal foundries needing consistent alloy quality.
- Custom precious metal shaping for industrial or artisan fabrication.
Overview
The KYG LS4/8/50 Precious Metal Continuous Casting Machine efficiently casts gold, silver, copper, brass, and bronze—including their alloys—into rods, tubes, and bars in a single operation. Featuring advanced induction heating and precise PID temperature control, it provides melting capacities from 5 up to 50 kg depending on the model, and maximum temperature up to 1600°C (R-type). The system supports drawing speeds up to 40 cm/min and accommodates a wide range of product shapes and sizes.
Reliable for high-quality jewelry production, this machine is equipped with automated parameters, rapid melting, and protective nitrogen or argon gas. The simple operation, automatic alloy stirring, and enhanced thermal accuracy (±2°C) make it suitable for continuous, high-throughput foundry environments where consistent quality and low process waste are required.
