Melting & Casting
Induction Melting Furnace
KYG1607

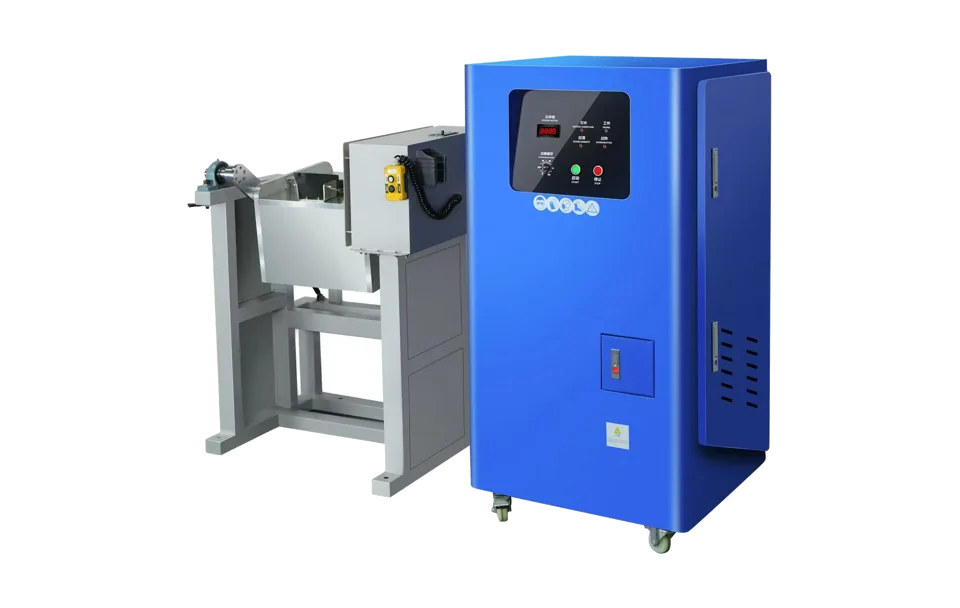

KYG 20–100kg Multi-Tilting Induction Melting Furnace
KYG · RTF35/RTF45/RTF/70/RTF90
Multi-tilting induction melting furnace for 10–120 kg non-ferrous and precious metals, with efficient continuous casting.
Configure enquiry
Select model
Model: RTF-35
Parameter comparison
Model parameter comparison
Compare RTF-35, RTF-45, RTF-70, and RTF-90.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected model
RTF-35
KYG1607-RTF-35
| MAX Input Power | 35KW |
|---|---|
| MAX Input Current | 51A |
| Weight | 220kg |
| Al, Al-Alloy | 10kg |
| Cu, Au, Ag | 30kg |
| Fe, Ss | 10kg |
Selected model
RTF-45
KYG1607-RTF-45
| MAX Input Power | 45KW |
|---|---|
| MAX Input Current | 68A |
| Weight | 230kg |
| Al, Al-Alloy | 18kg |
| Cu, Au, Ag | 50kg |
| Fe, Ss | 18kg |
Selected model
RTF-70
KYG1607-RTF-70
| MAX Input Power | 70KW |
|---|---|
| MAX Input Current | 105A |
| Weight | 240kg |
| Al, Al-Alloy | 25kg |
| Cu, Au, Ag | 80kg |
| Fe, Ss | 25kg |
Selected model
RTF-90
KYG1607-RTF-90
| MAX Input Power | 90KW |
|---|---|
| MAX Input Current | 135A |
| Weight | 250kg |
| Al, Al-Alloy | 40kg |
| Cu, Au, Ag | 120kg |
| Fe, Ss | 40kg |
Selected variant
RTF-35
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
RTF-35
Compare variant
RTF-45
MAX Input Current
DifferentSelected variant
Compare variant
Weight
DifferentSelected variant
Compare variant
Al, Al-Alloy
DifferentSelected variant
Compare variant
Cu, Au, Ag
DifferentSelected variant
Compare variant
Fe, Ss
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonModel | ||||
|---|---|---|---|---|
| MAX Input Power | 35KW | 45KW | 70KW | 90KW |
| MAX Input Current | 51A | 68A | 105A | 135A |
| Weight | 220kg | 230kg | 240kg | 250kg |
| Al, Al-Alloy | 10kg | 18kg | 25kg | 40kg |
| Cu, Au, Ag | 30kg | 50kg | 80kg | 120kg |
| Fe, Ss | 10kg | 18kg | 25kg | 40kg |
Specifications
| Input Voltage | Three-phase 340 V ~420 V 50/60 Hz |
|---|---|
| Oscillation Frequency | 1K~20KHz |
| Cooling Water Hydraulic Pressure Requirement | ≥0.3 MPa |
| Cooling Water Flow Rate Requirement | ≥20L/Min |
| Water Temperature | ≤45 °C |
| Power Supply Cabinet Dimensions | 70 × 40 × 100 cm |
| Furnace Body Dimensions | 80 × 70 × 90 cm |
| Requirement of Cooling Water Hydraulic Pressure | ≥0.3 MPa |
| Requirement of Cooling Water Flow Rate | ≥20L/Min |
| Temperature of Water | ≤45 °C |
| Power Supply | 70 × 40 × 100 cm |
| Furnace Body | 80 × 70 × 90 cm |
Overview
Highlights
- Multi-tilting mechanism enables consecutive casting from a single melt for reduced cycle times.
- Advanced IGBT solid-state technology ensures energy efficiency and stable, repeatable operation.
- Intuitive controls and robust safety features for safe, easy operation and maintenance.
Applications
- Efficient melting and casting of gold, silver, copper, and their alloys in jewelry production.
- Batch melting of iron and stainless steel parts for metalworking and small foundries.
- Continuous casting workflows requiring consistent temperature and reduced energy use.
Overview
The KYG 20–100kg Multi-Tilting Induction Melting Furnace is designed for the efficient melting of precious and non-ferrous metals such as gold, silver, copper, alloys, iron, and stainless steel, supporting batch capacities from 10 kg to 120 kg depending on the model. Its multi-tilting design enables pouring into several molds sequentially from a single melt, substantially reducing production cycle times and improving operational flexibility compared to conventional single-pour furnaces.
Equipped with advanced solid-state IGBT technology, precise electromagnetic shielding, and intuitive control options, this furnace maintains stable temperatures and reliable operation. Features include reliable water cooling, low energy consumption, rapid heating, safety interlocks, and easy maintenance. The system is ideal for foundries and production lines demanding quality, repeatability, and safe handling of valuable metals.
