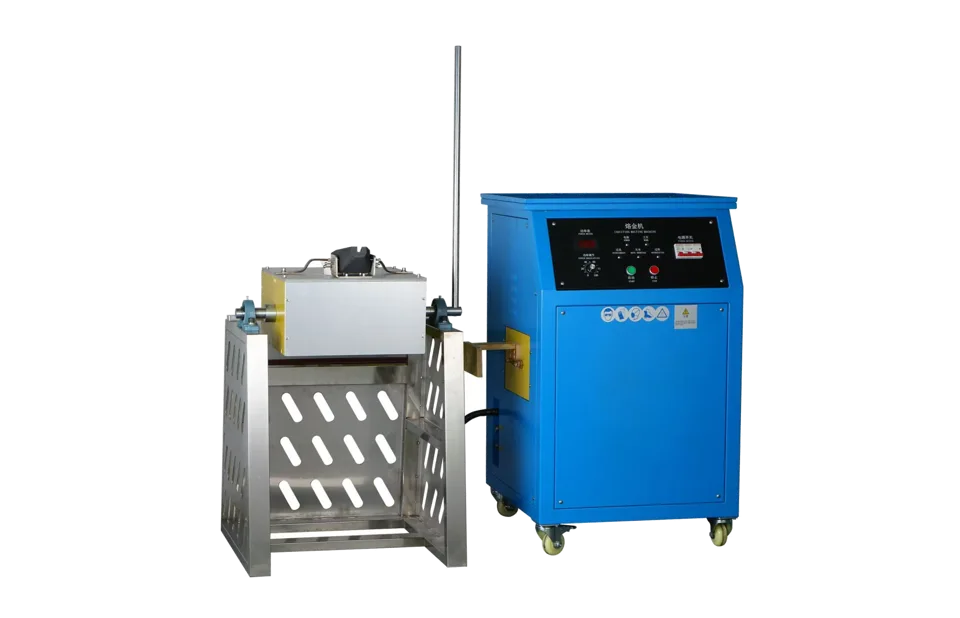

KYG 20–30kg Tilting Gold Melting Furnace
KYG · TB25/TB35
Medium frequency 20–30kg tilting gold melting furnace with 1800℃ IGBT induction heating and rapid 6–8 min melt times.
Configure enquiry
Select model
Model Number: KYG-TB25
Parameter comparison
Model parameter comparison
Compare KYG-TB25 and KYG-TB35.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected model
KYG-TB25
KYG1605-KYG-TB25
| Power | 25 kW |
|---|---|
| Max Capacity | 24K Gold 25.0 kg / 925 Silver 12.5 kg |
| Max Current | 36A |
| Weight | 200 kg |
Selected model
KYG-TB35
KYG1605-KYG-TB35
| Power | 35 kW |
|---|---|
| Max Capacity | 24K Gold 30.0 kg / 925 Silver 15.0 kg |
| Max Current | 51A |
| Weight | 215 kg |
Selected variant
KYG-TB25
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
KYG-TB25
Compare variant
KYG-TB35
Max Capacity
DifferentSelected variant
Compare variant
Max Current
DifferentSelected variant
Compare variant
Weight
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonModel Number | ||
|---|---|---|
| Power | 25 kW | 35 kW |
| Max Capacity | 24K Gold 25.0 kg / 925 Silver 12.5 kg | 24K Gold 30.0 kg / 925 Silver 15.0 kg |
| Max Current | 36A | 51A |
| Weight | 200 kg | 215 kg |
Specifications
| Power Source | Three phase 380 V, 50/60 Hz |
|---|---|
| Applicable Metal | Gold, Silver, Copper, Brass, Bronze, and their alloys |
| Melting Time | 6–8 mins |
| Max Heating Temperature | 1800 °C |
| Power Size | 690 × 500 × 1210 mm |
| Furnace Size | 650 × 520 × 1800 mm |
| Heat Technology | IGBT Induction heating |
| Water Pump | Build-in |
| Cooling Way | Water cooling |
Overview
Highlights
- Fast melting cycle: melts up to 30kg of gold in 6–8 minutes.
- Energy-efficient IGBT induction heating with precise temperature control up to 1800℃.
- Tilting design enables safe, spill-free pouring and easy maintenance with detachable parts.
Applications
- Gold and silver refining in precious metal foundries.
- Manufacturing jewelry and small alloy castings.
- Laboratory research on metals and material analysis.
Overview
The KYG 20–30kg Tilting Gold Melting Furnace is a medium frequency IGBT induction system designed for rapid, efficient melting of precious and non-ferrous metals including gold, silver, copper, brass, and bronze. It features a split design with easy tilting, enabling safe pouring of molten metal without splashing. With a maximum temperature of 1800°C and selectable power ratings of 25kw or 35kw, it can melt up to 30kg of gold in 6–8 minutes.
This furnace delivers reliable, continuous duty operation and is equipped with advanced safety features such as a built-in water pump for cooling, an omni-directional warning system, and detachable crucible and safety refractory shell for convenient maintenance. The robust induction technology ensures energy-efficient operation and strong mixing for homogeneous melts, making it a versatile choice for professional refineries and industrial applications.
