Melting & Casting
Electric Melting Furnace
KYG0714

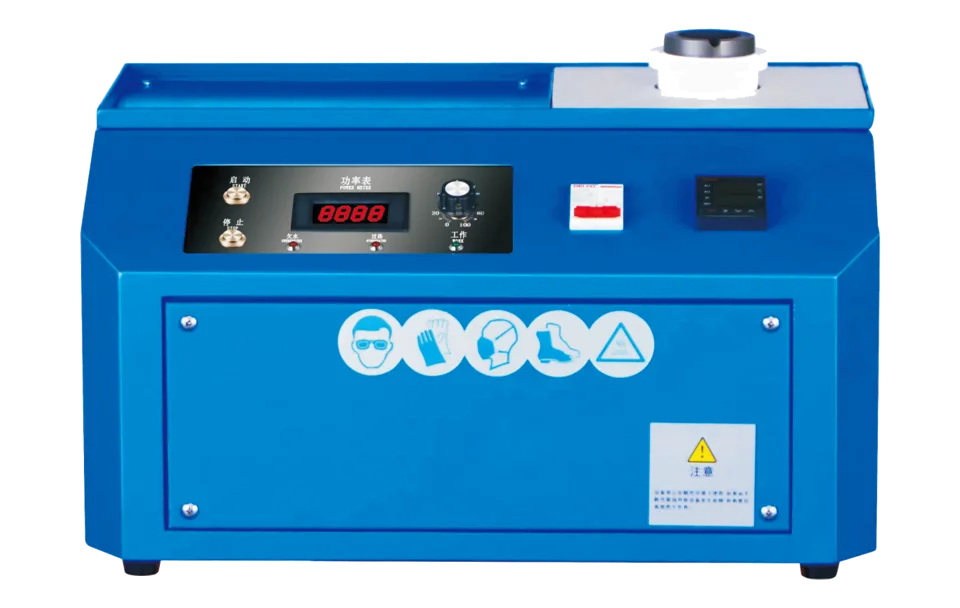

KYG 1-2kg Desktop Mini Gold Melting Furnace
KYG · DH1/DH2
Compact desktop mini gold melting furnace with induction heating, up to 2kg gold capacity, rapid 2-min melting.
Configure enquiry
Select model
Model Number: KYG-DH1
Parameter comparison
Model parameter comparison
Compare KYG-DH1 and KYG-DH2.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected model
KYG-DH1
KYG0714-KYG-DH1
| Power | 3.5 kW |
|---|---|
| Max Capacity | Gold 1.0 kg / Silver 0.6 kg |
| Weight | 21 kg |
Selected model
KYG-DH2
KYG0714-KYG-DH2
| Power | 3.8 kW |
|---|---|
| Max Capacity | Gold 2.0 kg / Silver 1.2 kg |
| Weight | 22 kg |
Selected variant
KYG-DH1
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
KYG-DH1
Compare variant
KYG-DH2
Max Capacity
DifferentSelected variant
Compare variant
Weight
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonModel Number | ||
|---|---|---|
| Power | 3.5 kW | 3.8 kW |
| Max Capacity | Gold 1.0 kg / Silver 0.6 kg | Gold 2.0 kg / Silver 1.2 kg |
| Weight | 21 kg | 22 kg |
Specifications
| Power Source | Single phase 220 V, 50/60 Hz |
|---|---|
| Applicable Metal | Gold, Silver, Copper, Brass, and their alloys |
| Melting Time | 2 minutes |
| Max Temperature | 1600 C |
| Temperature Control (K-Type) | Optional |
| Dimension | 520 × 400 × 330 mm |
| Heating Technology | Induction heating |
| Cooling Way | Water cooling |
| Temperature Control K-Type | Optional |
Overview
Highlights
- Ultra-fast induction heating melts gold in as little as 2 minutes per batch.
- Compact and portable desktop design saves workspace and increases flexibility.
- Supports a variety of metals with simple operation and low maintenance.
Applications
- Ideal for goldsmiths needing small-batch gold and silver melting.
- Used in school laboratories for material science experiments.
- Perfect for jewelry stores and research institutes handling precious metals.
Overview
The KYG 1-2kg Desktop Mini Gold Melting Furnace is specifically designed for melting small quantities of precious metals. Its compact desktop design ensures it is both portable and space-saving, making it an excellent fit for workshops and laboratories with limited space. By utilizing advanced induction heating technology, this furnace significantly boosts melting efficiency compared to traditional resistance or propane-heated units.
This furnace achieves rapid melting times—under 2 minutes per batch—while maintaining stable temperatures up to 1600°C. Its robust power system allows for continuous operation, and users benefit from simple controls, low investment cost, and consistent melting quality. Typical applications include jewelry production, educational labs, material research, and small-scale goldsmithing.
