Melting & Casting
Electric Melting Furnace
KYG0715

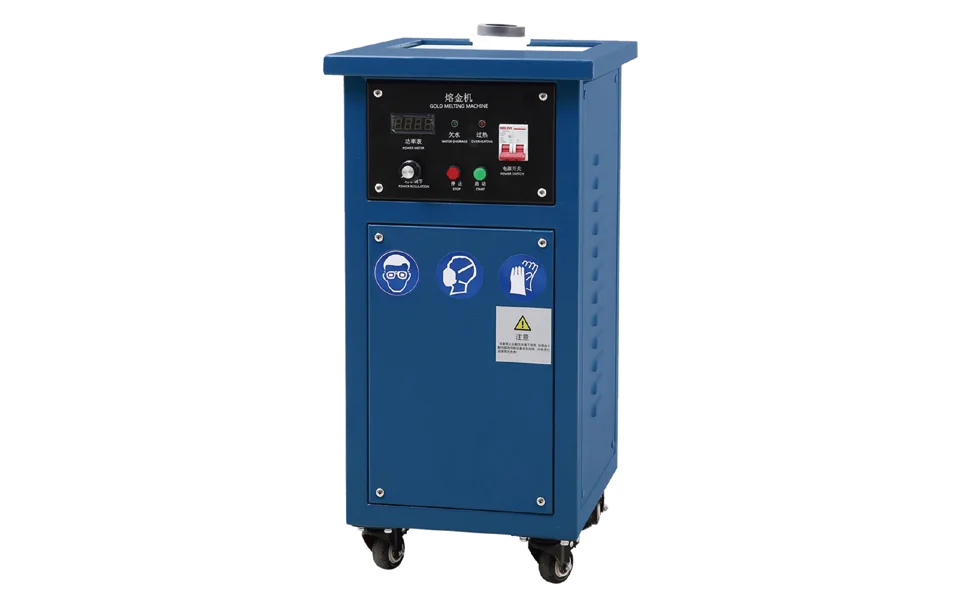

KYG 1-2kg Vertical Mini Gold Melting Furnace
KYG · H1/H2
Compact induction furnace melts gold and silver in 2 minutes, water-cooled, up to 2.6 kg capacity.
Configure enquiry
Select model
Model Number: KYG-H1
Parameter comparison
Model parameter comparison
Compare KYG-H1 and KYG-H2.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected model
KYG-H1
KYG0715-KYG-H1
| Power | 3.5 kW |
|---|---|
| Max Capacity | 24K Gold 1.2 kg / 18K Gold 1.0 kg / 925 Silver 0.6 kg |
| Dimension | 320*280*550 mm |
| Weight | 20 kg |
Selected model
KYG-H2
KYG0715-KYG-H2
| Power | 3.8 kW |
|---|---|
| Max Capacity | 24K Gold 2.6 kg / 18K Gold 2.0 kg / 925 Silver 1.2 kg |
| Dimension | 340*380*680 mm |
| Weight | 25 kg |
Selected variant
KYG-H1
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
KYG-H1
Compare variant
KYG-H2
Max Capacity
DifferentSelected variant
Compare variant
Dimension
DifferentSelected variant
Compare variant
Weight
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonModel Number | ||
|---|---|---|
| Power | 3.5 kW | 3.8 kW |
| Max Capacity | 24K Gold 1.2 kg / 18K Gold 1.0 kg / 925 Silver 0.6 kg | 24K Gold 2.6 kg / 18K Gold 2.0 kg / 925 Silver 1.2 kg |
| Dimension | 320*280*550 mm | 340*380*680 mm |
| Weight | 20 kg | 25 kg |
Specifications
| Power Source | Single phase 220V, 50/60Hz |
|---|---|
| Applicable Metal | Gold, Silver, Copper, Brass, Bronze, and their alloys |
| Melting Time | 2 minutes |
| Max Temperature | 1600 C |
| Temperature Control K-Type | Optional |
| Heating Technology | Induction heating |
| Water Pump | Optional |
| Cooling | Water cooling |
Overview
Overview
The KYG 1-2kg Vertical Mini Gold Melting Furnace delivers rapid and efficient melting of gold, silver, and alloys, achieving a complete melt in as little as 2 minutes per batch. Utilizing advanced induction heating technology, this compact furnace offers reliable temperature control, reaching up to 1600°C. Water cooling ensures safe, stable operation, supporting continuous use over extended periods.
Available in two versatile capacities (1.2 kg and 2.6 kg for 24K gold), the system is engineered for easy integration into jewelry workshops, laboratories, and metals recycling facilities. Its portable design, energy efficiency, and simple installation make it a valuable addition to any workspace requiring fast, repeatable melts with minimal environmental impact.
