Melting & Casting
Electric Melting Furnace
KYG0718

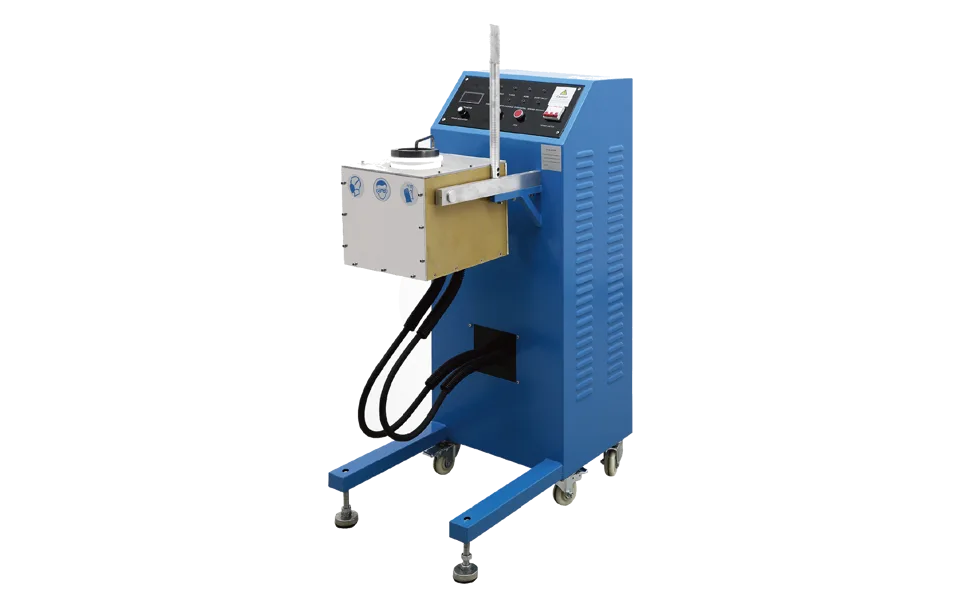

KYG Tilting Gold & Platinum Melting Furnace
KYG · TB3/TB4/TB5
Premium tilting induction furnace for rapid, safe melting of gold, platinum, and alloys, available in multiple capacities.
Configure enquiry
Select model
Model Number: KYG-TB2
Parameter comparison
Model parameter comparison
Compare KYG-TB2, KYG-TB4, and KYG-TB5.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected model
KYG-TB2
KYG0718-KYG-TB2
| Max Capacity | 2kg platinum |
|---|---|
| Max Temperature | 2800℃ |
| Weight | 95 kg |
| Applicable Metal | Platinum, palladium, gold, silver, steel, copper and their alloys |
| Melting Time | 2 minutes |
Selected model
KYG-TB4
KYG0718-KYG-TB4
| Max Capacity | 4kg platinum |
|---|---|
| Max Temperature | 2800℃ |
| Weight | 100 kg |
| Applicable Metal | Platinum, palladium, gold, silver, steel, copper and their alloys |
| Melting Time | 3 minutes |
Selected model
KYG-TB5
KYG0718-KYG-TB5
| Max Capacity | 12kg gold / 6kg silver |
|---|---|
| Max Temperature | 1800℃ |
| Weight | 95 kg |
| Applicable Metal | Gold, silver, steel, copper and their alloys |
| Melting Time | 5 minutes |
Selected variant
KYG-TB2
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
KYG-TB2
Compare variant
KYG-TB4
Max Temperature
DifferentSelected variant
Compare variant
Weight
DifferentSelected variant
Compare variant
Applicable Metal
DifferentSelected variant
Compare variant
Melting Time
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonModel Number | |||
|---|---|---|---|
| Max Capacity | 2kg platinum | 4kg platinum | 12kg gold / 6kg silver |
| Max Temperature | 2800℃ | 2800℃ | 1800℃ |
| Weight | 95 kg | 100 kg | 95 kg |
| Applicable Metal | Platinum, palladium, gold, silver, steel, copper and their alloys | Platinum, palladium, gold, silver, steel, copper and their alloys | Gold, silver, steel, copper and their alloys |
| Melting Time | 2 minutes | 3 minutes | 5 minutes |
Specifications
| Power Source | Three phase 380 V, 50/60 Hz |
|---|---|
| Power | 15 kW |
| Dimension | 740 × 500 × 1360 mm |
| Heating Technology | IGBT Induction heating |
| Water Pump | Equipped |
| Cooling Way | Water cooling |
Overview
Highlights
- Rapid melting cycles – as fast as 2 minutes for platinum and 5 minutes for gold or silver.
- Advanced IGBT induction heating with precise micro-computer control delivers reliability and energy efficiency.
- Safety-focused tilting mechanism and full-range protection features to safeguard operators.
Applications
- Jewelry manufacturing and precious metal alloying.
- Laboratory and industrial metal analysis sample preparation.
- Refining and recycling of gold, platinum, and other metals in foundries.
Overview
The KYG Tilting Gold & Platinum Melting Furnace is a high-performance induction system designed for the rapid and efficient melting of precious and base metals. Offering a robust IGBT induction heating technology, this furnace achieves high temperatures up to 2800°C, ensuring quick melting cycles for gold, platinum, palladium, silver, steel, copper, and their alloys. The water-cooled system and included water pump safeguard operational stability during continuous runs.
Engineered for safety and productivity, the tilting design facilitates easy pouring and helps prevent operator injury from hot metal splashes. Micro-computer controlled circuitry delivers energy efficiency and long-term reliability, making this furnace an ideal solution for jewelry foundries, metal processing workshops, and precious metal refining operations that require fast turnaround and dependable quality.
