Melting & Casting
Electric Melting Furnace
KYG0719

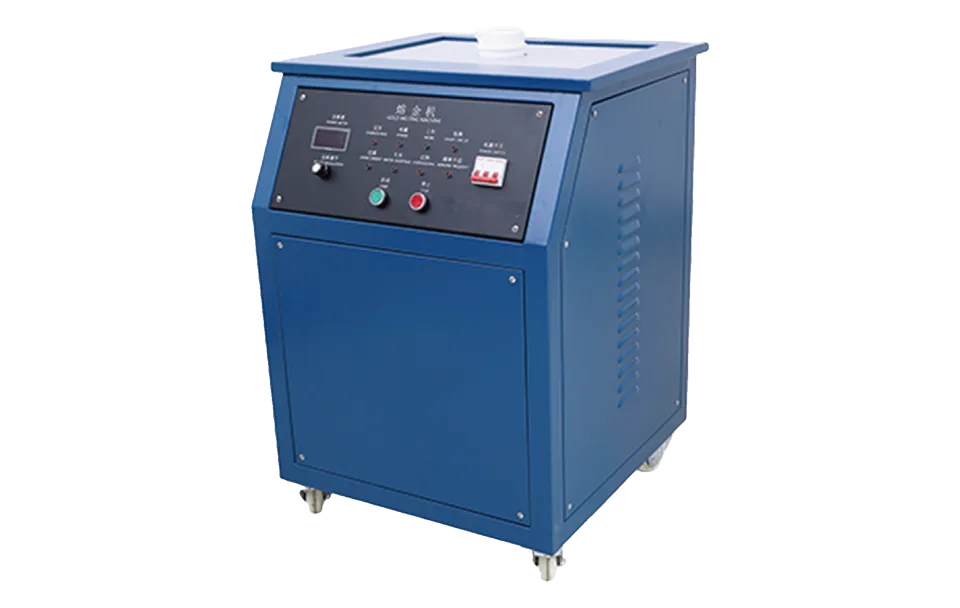

KYG 1–4kg Platinum Melting Furnace
KYG · B1/B2/B4
Industrial induction furnace for melting 1–4kg of platinum and other precious metals at up to 2800℃, with rapid melting and built-
Configure enquiry
Select model
Model Number: KYG-B1
Parameter comparison
Model parameter comparison
Compare KYG-B1, KYG-B2, and KYG-B4.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected model
KYG-B1
KYG0719-KYG-B1
| Max Capacity | 1 kg platinum |
|---|---|
| Dimension | 1180×690×500 mm |
| Weight | 88 kg |
| Melting Time | 2 min |
Selected model
KYG-B2
KYG0719-KYG-B2
| Max Capacity | 2 kg platinum |
|---|---|
| Dimension | 1180×680×500 mm |
| Weight | 90 kg |
| Melting Time | 2 min |
Selected model
KYG-B4
KYG0719-KYG-B4
| Max Capacity | 4 kg platinum |
|---|---|
| Dimension | 1180×680×500 mm |
| Weight | 92 kg |
| Melting Time | 3 min |
Selected variant
KYG-B1
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
KYG-B1
Compare variant
KYG-B2
Dimension
DifferentSelected variant
Compare variant
Weight
DifferentSelected variant
Compare variant
Melting Time
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonModel Number | |||
|---|---|---|---|
| Max Capacity | 1 kg platinum | 2 kg platinum | 4 kg platinum |
| Dimension | 1180×690×500 mm | 1180×680×500 mm | 1180×680×500 mm |
| Weight | 88 kg | 90 kg | 92 kg |
| Melting Time | 2 min | 2 min | 3 min |
Specifications
| Power Supply | Three phase 380 V, 50/60 Hz |
|---|---|
| Power | 15 kW adjustable |
| Applicable Metal | Platinum, palladium, gold, K-gold, silver and copper |
| Max Temperature | 2800 °C |
| Heating Technology | IGBT Induction heating |
| Water Pump | Build-in |
| Cooling Way | Water cooling |
| Haeting Technology | IGBT Induction heating |
Overview
Highlights
- Rapid melting: 1–4kg of platinum melted in as little as 2–3 minutes.
- Advanced safety: Multi-level alerts for overheating, overcurrent, water shortage, and more.
- Efficient IGBT induction heating with built-in water cooling and compact footprint.
Applications
- Jewelry refining and production workshops requiring rapid platinum alloy melting.
- Scrap metal recycling plants dealing with precious metals in various forms.
- Laboratory metal analysis where precise temperature and homogeneity are critical.
Overview
The KYG 1–4kg Platinum Melting Furnace is purpose-built for industrial melting of platinum, gold, palladium, silver, and copper. Utilizing advanced IGBT induction heating, it can reach a maximum temperature of 2800℃, allowing for the efficient and homogeneous melting of metals in as little as 2–3 minutes depending on the selected model. The system integrates a built-in water pump and water-cooling technology to ensure continuous operation, safety, and extended equipment lifespan.
Designed with intuitive controls and comprehensive safety features—including alerts for overcurrent, overheating, and water shortage—the KYG furnace meets the rigorous needs of jewelry making, scrap metal processing, and laboratory metal analysis. Compact construction and adjustable 15 kW power output make it ideal for facilities needing reliable, high-capacity precious metal melting with minimized floor footprint.
