Melting & Casting
Induction Melting Furnace
KYG0709

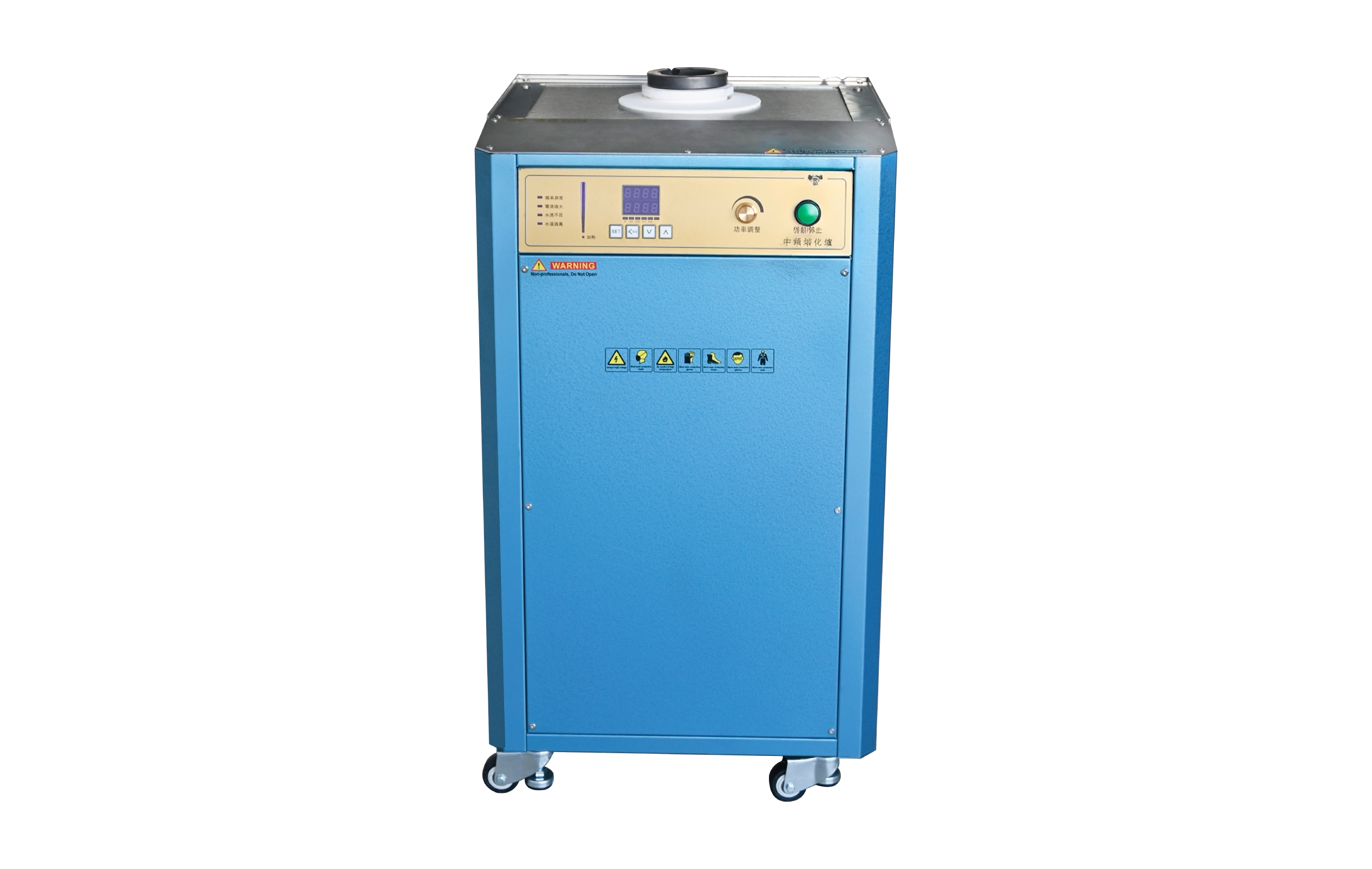

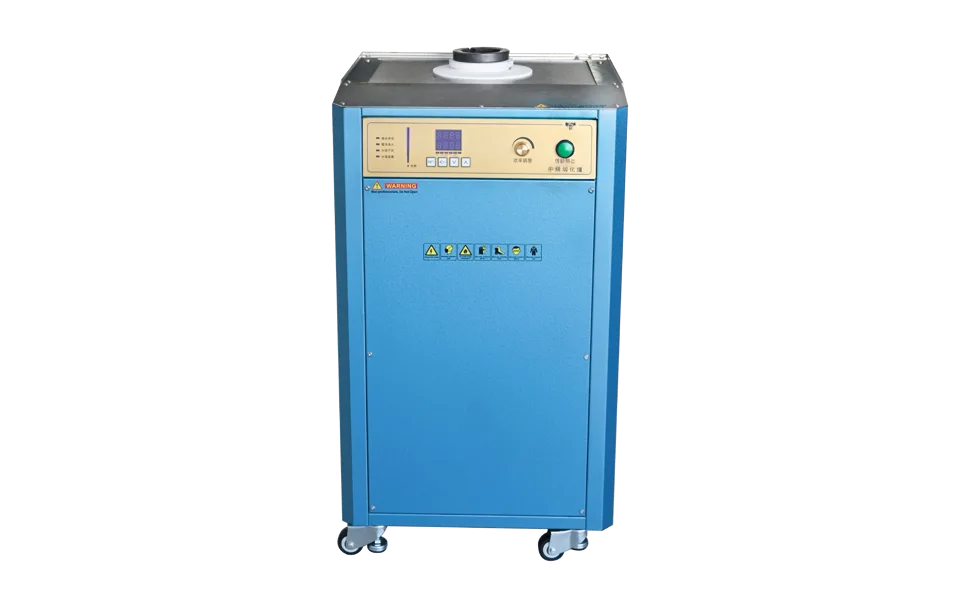

KYG Medium-Frequency Induction Gold Melting Furnace
Customization Available
Engineered for fast, uniform gold melting, the KYG Medium-Frequency Induction Gold Melting Furnace provides precise temperature control and robust safety, ideal for small-scale production.
Configure enquiry
Select specification
Capacity: 2KG
Parameter comparison
Variant parameter comparison
Compare 2KG, 3KG, 4KG, and 5KG.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected specification
2KG
KYG0709-2KG
| Power | 10KW |
|---|
Selected specification
3KG
KYG0709-3KG
| Power | 12KW |
|---|
Selected specification
4KG
KYG0709-4KG
| Power | 13KW |
|---|
Selected specification
5KG
KYG0709-5KG
| Power | 15KW |
|---|
Selected specification
6KG
KYG0709-6KG
| Power | 15KW |
|---|
Selected specification
8KG
KYG0709-8KG
| Power | 18KW |
|---|
Selected variant
2KG
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
2KG
Compare variant
3KG
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonCapacity | ||||||
|---|---|---|---|---|---|---|
| Power | 10KW | 12KW | 13KW | 15KW | 15KW | 18KW |
Specifications
| Power Cord Requirements | More than 4 mm² |
|---|---|
| Leakage Switch Current | 30 A |
| Cooling Water Input Pressure | MIN 3 bar / MAX 5 bar |
| Cooling Water Input Flow | More than 3 L/min |
| Cooling Water Input Temperature | 20–35 °C, not exceed 40 °C |
| Temperature Display Range | 0–1370 °C (33.8–2498 °F) |
| Temperature Setting Range | 0–1200 °C (33.8–2192 °F) |
| Working Area Temperature | Max 1100 °C |
| Mode of Heating | Intermediate frequency magnetic field induction |
| Temperature Control | PID temperature control, digital display |
| Standard Fittings | Crucible pliers, graphite crucible, Shi Ying jacket |
| Protection Measures | Self-inspection for water shortage, temperature, overcurrent, no load (crucible) protection |
| Size | 480 × 525 × 885 mm |
| Voltage | 380 V |
| Discharge | 2.5 L/min |
| Net Weight | 55 kg |
| Water Pressure | 2.0 kPa |
Overview
Highlights
- Fast, uniform gold melting with induction heating reduces cycle times.
- Digital PID control offers accurate, repeatable temperature management.
- Multi-layer safety protection minimizes downtime and operational risk.
Applications
- Jewelry-making and goldsmith workshops
- Lab-scale precious metal alloy production
- Batch casting for small foundries and repair shops
Overview
The KYG Medium-Frequency Induction Gold Melting Furnace is built to deliver efficient and consistent melting of gold and precious metals using advanced magnetic induction heating technology. With digital PID temperature control, it ensures accurate, repeatable results and short process cycles. Integrated safety protections and user-friendly controls make it a reliable solution for jewelers, laboratories, and small foundries seeking both productivity and safety in their melting operations.
Customization options are available on request. Scope can include branding, packaging, documentation, voltage or plug options, and selected configuration adjustments, depending on the model, order quantity, and project requirements.
