Casting Preparation & Burnout
Vacuum Pumps & Accessories
KYG0728

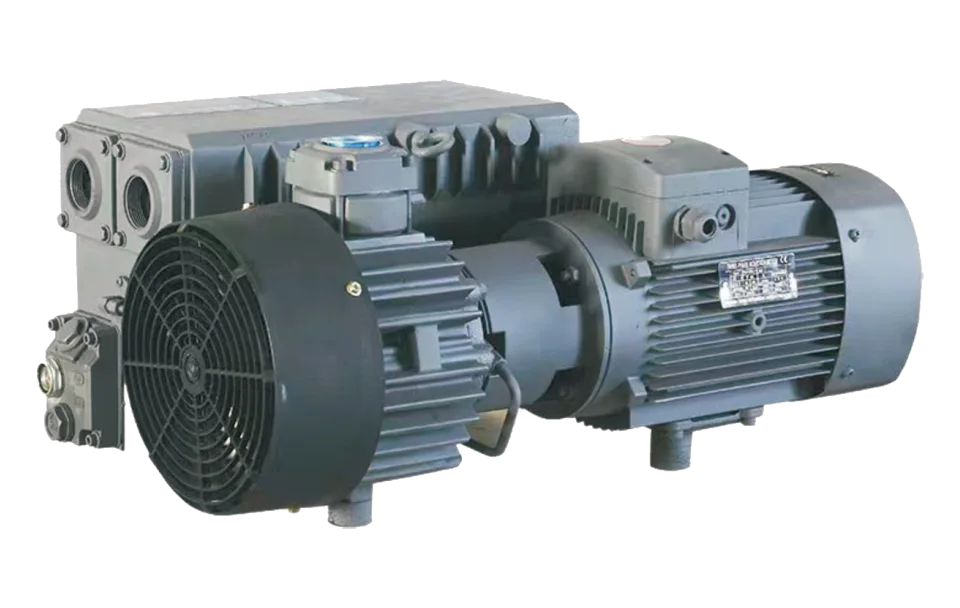

Vacuum Pump (Cast Iron)
Heavy-duty cast iron vacuum pump with multiple capacities, customizable cooling and connections for industrial reliability.
Configure enquiry
Select model
Model: 20X
Parameter comparison
Model parameter comparison
Compare 20X, 28X, 40X, and 65X.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected model
20X
KYG0728-20X
| Motor Power | 0.75 KW |
|---|---|
| Pumping Speed (50Hz) | 20 m3/h |
| Speed (50Hz) | 2880 rpm |
| Weight | 21 Kg |
| Cooling Method | Air/Water |
| Inlet Connection | G1/2 Inch |
| Noise Level | 64 dB |
| Outlet Connection | G1/2 Inch |
Selected model
28X
KYG0728-28X
| Motor Power | 0.75 KW |
|---|---|
| Pumping Speed (50Hz) | 28 m3/h |
| Speed (50Hz) | 1450 rpm |
| Weight | 30 Kg |
| Cooling Method | Air |
| Inlet Connection | G1/2 Inch |
| Noise Level | 64 dB |
| Outlet Connection | G1/2 Inch |
Selected model
40X
KYG0728-40X
| Motor Power | 1.5 KW |
|---|---|
| Pumping Speed (50Hz) | 40 m3/h |
| Speed (50Hz) | 1450 rpm |
| Weight | 44 Kg |
| Cooling Method | Air |
| Inlet Connection | G1-1/4 Inch |
| Noise Level | 64 dB |
| Outlet Connection | G1-1/4 Inch |
Selected model
65X
KYG0728-65X
| Motor Power | 2.2 KW |
|---|---|
| Pumping Speed (50Hz) | 65 m3/h |
| Speed (50Hz) | 1450 rpm |
| Weight | 54 Kg |
| Cooling Method | Air |
| Inlet Connection | G1-1/4 Inch |
| Noise Level | 65 dB |
| Outlet Connection | G1-1/4 Inch |
Selected model
100X
KYG0728-100X
| Motor Power | 3.0 KW |
|---|---|
| Pumping Speed (50Hz) | 100 m3/h |
| Speed (50Hz) | 1450 rpm |
| Weight | 69 Kg |
| Cooling Method | Air |
| Inlet Connection | G1-1/4 Inch |
| Noise Level | 65 dB |
| Outlet Connection | G1-1/4 Inch |
Selected model
140X
KYG0728-140X
| Motor Power | 4.0/4.5 KW |
|---|---|
| Pumping Speed (50Hz) | 140 m3/h |
| Speed (50Hz) | 1450 rpm |
| Weight | 90 Kg |
| Cooling Method | Air |
| Inlet Connection | G1-1/2 Inch |
| Noise Level | 65 dB |
| Outlet Connection | G1-1/2 Inch |
Selected model
160X
KYG0728-160X
| Motor Power | 4.5 KW |
|---|---|
| Pumping Speed (50Hz) | 160 m3/h |
| Speed (50Hz) | 1450 rpm |
| Weight | 142 Kg |
| Cooling Method | Air |
| Inlet Connection | G1-1/2 Inch |
| Noise Level | 68 dB |
| Outlet Connection | G1-1/2 Inch |
Selected model
200X
KYG0728-200X
| Motor Power | 5.5 KW |
|---|---|
| Pumping Speed (50Hz) | 200 m3/h |
| Speed (50Hz) | 1450 rpm |
| Weight | 160 Kg |
| Cooling Method | Air/Water |
| Inlet Connection | G2 Inch |
| Noise Level | 70 dB |
| Outlet Connection | G2 Inch |
Selected model
300X
KYG0728-300X
| Motor Power | 7.5 KW |
|---|---|
| Pumping Speed (50Hz) | 300 m3/h |
| Speed (50Hz) | 1450 rpm |
| Weight | 198 Kg |
| Cooling Method | Air/Water |
| Inlet Connection | G2 Inch |
| Noise Level | 70 dB |
| Outlet Connection | G2 Inch |
Selected model
350X
KYG0728-350X
| Motor Power | 7.5 KW |
|---|---|
| Pumping Speed (50Hz) | 350 m3/h |
| Speed (50Hz) | 1450 rpm |
| Weight | 220 Kg |
| Cooling Method | Air/Water |
| Inlet Connection | G2 Inch |
| Noise Level | 72 dB |
| Outlet Connection | G2 Inch |
Selected model
400X
KYG0728-400X
| Motor Power | 11 KW |
|---|---|
| Pumping Speed (50Hz) | 400 m3/h |
| Speed (50Hz) | 970 rpm |
| Weight | 430 Kg |
| Cooling Method | Air |
| Inlet Connection | DN100 |
| Noise Level | 76 dB |
| Outlet Connection | DN80 |
Selected model
450X
KYG0728-450X
| Motor Power | 11 KW |
|---|---|
| Pumping Speed (50Hz) | 450 m3/h |
| Speed (50Hz) | 970 rpm |
| Weight | 460 Kg |
| Cooling Method | Air |
| Inlet Connection | DN100 |
| Noise Level | 76 dB |
| Outlet Connection | DN80 |
Selected model
500X
KYG0728-500X
| Motor Power | 11 KW |
|---|---|
| Pumping Speed (50Hz) | 500 m3/h |
| Speed (50Hz) | 1000 rpm |
| Weight | 560 Kg |
| Cooling Method | Air |
| Inlet Connection | DN100 |
| Noise Level | 79 dB |
| Outlet Connection | DN80 |
Selected model
630X
KYG0728-630X
| Motor Power | 15 KW |
|---|---|
| Pumping Speed (50Hz) | 630 m3/h |
| Speed (50Hz) | 1000 rpm |
| Weight | 670 Kg |
| Cooling Method | Air |
| Inlet Connection | DN100 |
| Noise Level | 79 dB |
| Outlet Connection | DN80 |
Selected variant
20X
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
20X
Compare variant
28X
Pumping Speed (50Hz)
DifferentSelected variant
Compare variant
Speed (50Hz)
DifferentSelected variant
Compare variant
Weight
DifferentSelected variant
Compare variant
Cooling Method
DifferentSelected variant
Compare variant
Inlet Connection
DifferentSelected variant
Compare variant
Noise Level
DifferentSelected variant
Compare variant
Outlet Connection
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonModel | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Motor Power | 0.75 KW | 0.75 KW | 1.5 KW | 2.2 KW | 3.0 KW | 4.0/4.5 KW | 4.5 KW | 5.5 KW | 7.5 KW | 7.5 KW | 11 KW | 11 KW | 11 KW | 15 KW |
| Pumping Speed (50Hz) | 20 m3/h | 28 m3/h | 40 m3/h | 65 m3/h | 100 m3/h | 140 m3/h | 160 m3/h | 200 m3/h | 300 m3/h | 350 m3/h | 400 m3/h | 450 m3/h | 500 m3/h | 630 m3/h |
| Speed (50Hz) | 2880 rpm | 1450 rpm | 1450 rpm | 1450 rpm | 1450 rpm | 1450 rpm | 1450 rpm | 1450 rpm | 1450 rpm | 1450 rpm | 970 rpm | 970 rpm | 1000 rpm | 1000 rpm |
| Weight | 21 Kg | 30 Kg | 44 Kg | 54 Kg | 69 Kg | 90 Kg | 142 Kg | 160 Kg | 198 Kg | 220 Kg | 430 Kg | 460 Kg | 560 Kg | 670 Kg |
| Cooling Method | Air/Water | Air | Air | Air | Air | Air | Air | Air/Water | Air/Water | Air/Water | Air | Air | Air | Air |
| Inlet Connection | G1/2 Inch | G1/2 Inch | G1-1/4 Inch | G1-1/4 Inch | G1-1/4 Inch | G1-1/2 Inch | G1-1/2 Inch | G2 Inch | G2 Inch | G2 Inch | DN100 | DN100 | DN100 | DN100 |
| Noise Level | 64 dB | 64 dB | 64 dB | 65 dB | 65 dB | 65 dB | 68 dB | 70 dB | 70 dB | 72 dB | 76 dB | 76 dB | 79 dB | 79 dB |
| Outlet Connection | G1/2 Inch | G1/2 Inch | G1-1/4 Inch | G1-1/4 Inch | G1-1/4 Inch | G1-1/2 Inch | G1-1/2 Inch | G2 Inch | G2 Inch | G2 Inch | DN80 | DN80 | DN80 | DN80 |
Overview
Highlights
- Rugged cast iron body ensures long-lasting, industrial-grade reliability.
- Wide model range covers diverse vacuum capacity needs.
- Flexible cooling and connection choices simplify system integration.
Applications
- Vacuum handling in manufacturing
- Laboratory vacuum creation
- Industrial automation vacuum processes
Overview
Vacuum Pump (Cast Iron) offers rugged cast iron construction, delivering exceptional durability for high-demand environments such as manufacturing and laboratory applications. Its family of models covers a broad range of pumping speeds and capacities, making it ideal for processes requiring reliable, high-performance vacuum generation.
Select models can be tailored with air or water cooling and various inlet/outlet connections, enabling easy integration into both new and existing systems. The cast iron design resists wear and thermal stress for consistent, long-term use, even under continuous operation.
Typical uses
- Manufacturing vacuum systems
- Laboratory and industrial process applications
- Equipment requiring customizable vacuum solutions
