Motor Power (KW)
DifferentSelected variant
Compare variant
←Back to product range
Casting Preparation & Burnout
Vacuum Pumps & Accessories
KYG0726

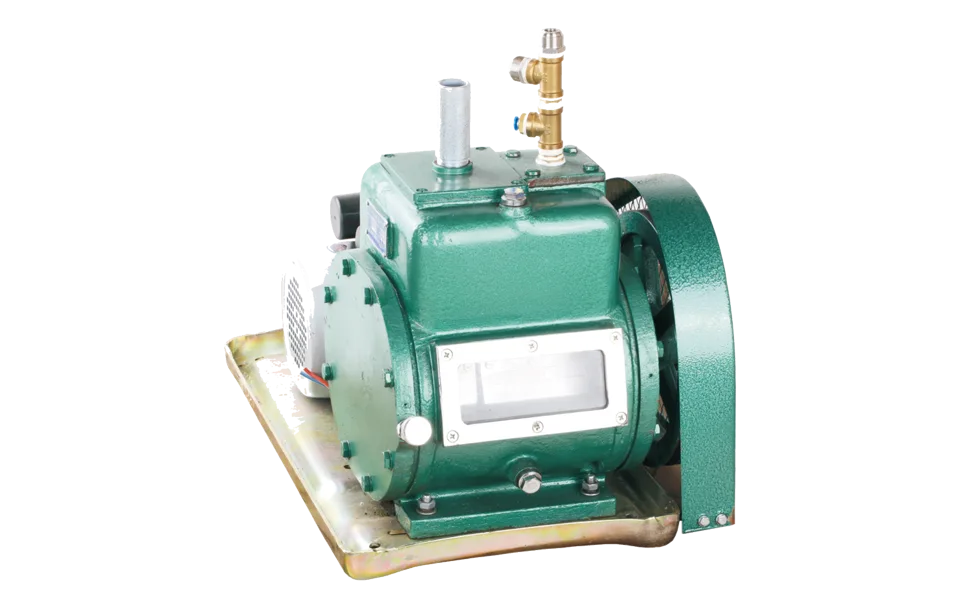

Vacuum Pump
Versatile rotary vane vacuum pump for lab, filtration, and industrial processes with multiple capacities and cooling types.
Configure enquiry
Select model
Model: 2x-4
Parameter comparison
Model parameter comparison
Compare 2x-4, 2x-8, 2x-15, and 2x-30.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected model
2x-4
KYG0726-2X-4
| Motor Power (KW) | 0.55 |
|---|---|
| Motor Speed (Rpm) | 1400 |
| Pump Shaft Speed (Rpm) | 525 |
| Pumping Speed (L/S) | 4 |
| Belt (Type/Length Mm) | A/889 |
| Inlet Diameter (Mm) | 28 |
| Weight (KG) | 67 |
| Belt Count | 1 |
| Cooling | Air cooled |
| Inlet Connection | Rubber tube to inlet |
| Noise (Db) | 72 |
| Oil Quantity (L) | 1.1 |
Selected model
2x-8
KYG0726-2X-8
| Motor Power (KW) | 1.1 |
|---|---|
| Motor Speed (Rpm) | 1400 |
| Pump Shaft Speed (Rpm) | 550 |
| Pumping Speed (L/S) | 8 |
| Belt (Type/Length Mm) | A/965 |
| Inlet Diameter (Mm) | 34 |
| Weight (KG) | 86 |
| Belt Count | 1 |
| Cooling | Air cooled |
| Inlet Connection | Rubber tube to inlet |
| Noise (Db) | 75 |
| Oil Quantity (L) | 1.3 |
Selected model
2x-15
KYG0726-2X-15
| Motor Power (KW) | 1.5 |
|---|---|
| Motor Speed (Rpm) | 1420 |
| Pump Shaft Speed (Rpm) | 470 |
| Pumping Speed (L/S) | 15 |
| Belt (Type/Length Mm) | A/1120 |
| Inlet Diameter (Mm) | 60 |
| Weight (KG) | 138 |
| Belt Count | 2 |
| Cooling | Air cooled |
| Inlet Connection | Connection by flange to pump body |
| Noise (Db) | 80 |
| Oil Quantity (L) | 2.5 |
Selected model
2x-30
KYG0726-2X-30
| Motor Power (KW) | 3 |
|---|---|
| Motor Speed (Rpm) | 1420 |
| Pump Shaft Speed (Rpm) | 430 |
| Pumping Speed (L/S) | 30 |
| Belt (Type/Length Mm) | A/1400 |
| Inlet Diameter (Mm) | 70 |
| Weight (KG) | 245 |
| Belt Count | 3 |
| Cooling | Water cooled |
| Inlet Connection | Connection by flange to pump body |
| Noise (Db) | 82 |
| Oil Quantity (L) | 4.5 |
Selected model
2x-70
KYG0726-2X-70
| Motor Power (KW) | 5.5 |
|---|---|
| Motor Speed (Rpm) | 1440 |
| Pump Shaft Speed (Rpm) | 450 |
| Pumping Speed (L/S) | 70 |
| Belt (Type/Length Mm) | A/1600 |
| Inlet Diameter (Mm) | 90 |
| Weight (KG) | 400 |
| Belt Count | 4 |
| Cooling | Water cooled |
| Inlet Connection | Connection by flange to pump body |
| Noise (Db) | 86 |
| Oil Quantity (L) | 8 |
Selected variant
2x-4
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
2x-4
Compare variant
2x-8
Motor Speed (Rpm)
DifferentSelected variant
Compare variant
Pump Shaft Speed (Rpm)
DifferentSelected variant
Compare variant
Pumping Speed (L/S)
DifferentSelected variant
Compare variant
Belt (Type/Length Mm)
DifferentSelected variant
Compare variant
Inlet Diameter (Mm)
DifferentSelected variant
Compare variant
Weight (KG)
DifferentSelected variant
Compare variant
Belt Count
DifferentSelected variant
Compare variant
Cooling
DifferentSelected variant
Compare variant
Inlet Connection
DifferentSelected variant
Compare variant
Noise (Db)
DifferentSelected variant
Compare variant
Oil Quantity (L)
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonModel | |||||
|---|---|---|---|---|---|
| Motor Power (KW) | 0.55 | 1.1 | 1.5 | 3 | 5.5 |
| Motor Speed (Rpm) | 1400 | 1400 | 1420 | 1420 | 1440 |
| Pump Shaft Speed (Rpm) | 525 | 550 | 470 | 430 | 450 |
| Pumping Speed (L/S) | 4 | 8 | 15 | 30 | 70 |
| Belt (Type/Length Mm) | A/889 | A/965 | A/1120 | A/1400 | A/1600 |
| Inlet Diameter (Mm) | 28 | 34 | 60 | 70 | 90 |
| Weight (KG) | 67 | 86 | 138 | 245 | 400 |
| Belt Count | 1 | 1 | 2 | 3 | 4 |
| Cooling | Air cooled | Air cooled | Air cooled | Water cooled | Water cooled |
| Inlet Connection | Rubber tube to inlet | Rubber tube to inlet | Connection by flange to pump body | Connection by flange to pump body | Connection by flange to pump body |
| Noise (Db) | 72 | 75 | 80 | 82 | 86 |
| Oil Quantity (L) | 1.1 | 1.3 | 2.5 | 4.5 | 8 |
Specifications
| Ultimate Pressure | 6x10⁻² Pa |
|---|---|
| Oil Type | No. 100 Vacuum Pump Oil |
| Oil Capacity | 1.1–8 L (model dependent) |
Overview
Highlights
- Broad selection of capacities and cooling methods for tailored solutions
- Reliable oil-lubricated rotary vane design for consistent performance
- Flexible connection options support easy system integration
Applications
- Vacuum filtration systems
- Scientific laboratory evacuation
- Industrial process vacuum support
Overview
This rotary vane vacuum pump series is engineered for dependable performance across a broad range of scientific and industrial applications. Designed for versatility, it features several available capacities and both air- and water-cooled configurations, making it suitable for varying process demands and installation environments.
The oil-lubricated rotary vane mechanism delivers stable vacuum levels and efficient operation, while robust construction ensures reliability during extended use. Connection options, including both rubber tube and flange, offer flexibility in integration with different system setups.
Typical uses
This pump is ideal for laboratory evacuation, vacuum filtration systems, and serving as a reliable vacuum source in diverse industrial processes.
