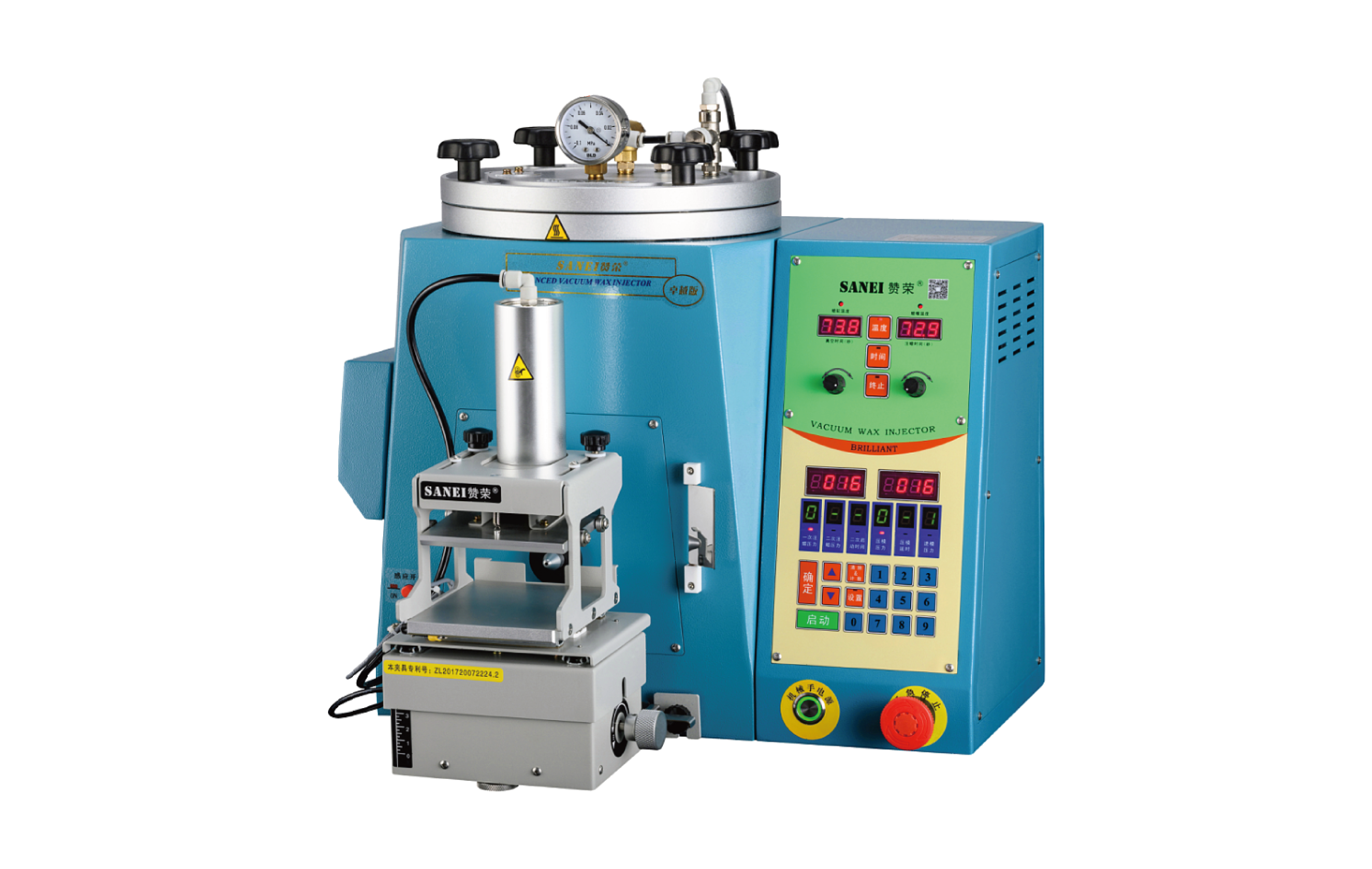

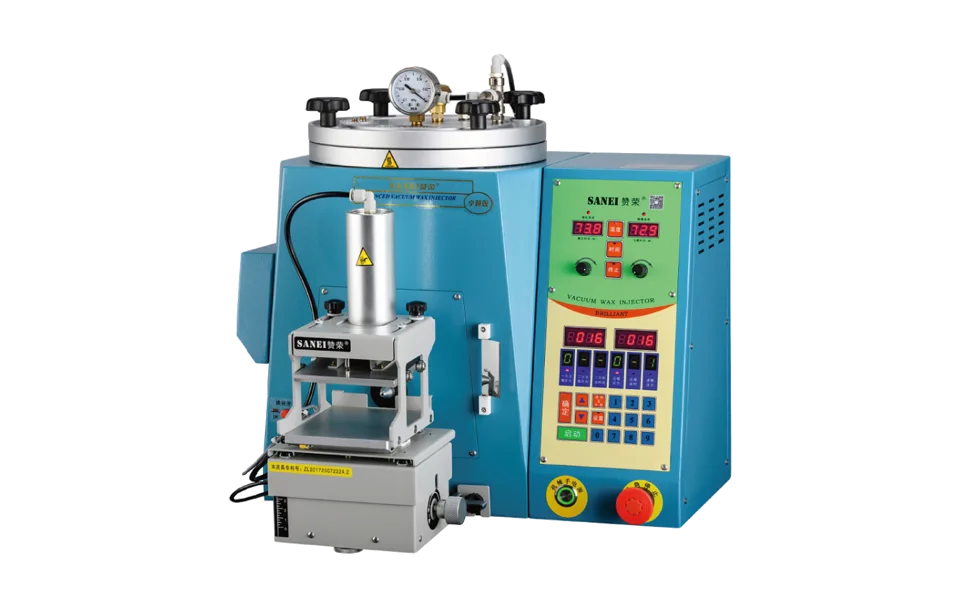

SANEI Advanced Digital Vacuum Wax Injector
SANEI · ADVANCED
Advanced digital vacuum wax injector for high-efficiency wax model production with precise, programmable temperature and pressure control.
Waxing & Mould Making
Specifications
| Wax Injector Specifications | |
|---|---|
| Power Supply | Single-phase, AC 100–220 V ±10%, 50/60 Hz |
| Rated Power | 500 W |
| External Air Supply Pressure | 0.4–0.7 MPa |
| Temperature Display Range | 40.0–99.9 °C (104–212 °F) |
| Temperature Setting Range | 40.0–90.0 °C (104–194 °F) |
| Temperature Accuracy | ±0.5 °C |
| Vacuum Time Setting Range | 0–12 s |
| Wax Injection Time Setting Range | 0–600 s |
| Scheduled Heating Start Timer | 0–99 h |
| Time Resolution | 0.1 s |
| Wax Tank Capacity | Approx. 3 kg |
| Vacuum Gauge Range | −0.1–0 MPa |
| Fuse Rating | 5 A |
| Packing Dimensions | L 600 × W 390 × D 590 mm |
| Net Weight | 23 kg |
| Clamp Unit Specifications | |
| Pressure Regulator Setting Range | 0.25–0.40 MPa |
| Pressure Sensor Display Range | –5–240 kPa |
| Primary Wax Injection Pressure Setting Range | 10–220 kPa |
| Secondary Wax Injection Pressure Setting Range | 10–220 kPa |
| Secondary Wax Injection Start Delay | 0–99.9 s |
| Fixture Clamping Pressure Setting Range | 30–235 kPa |
| Fixture Advance Pressure Setting Range | 65–235 kPa |
| Fixture Holding Time Setting Range | 0–300 s |
| Vacuum Time Setting Range | 0–99.9 s |
| Wax Injection Time Setting Range | 0.1–99.9 s |
| Maximum Workpiece Count | 0–9,999 |
| Stored Parameter Sets | 10,000 sets |
| Activation Method | Magnetic sensor or push button |
| Rubber Mould Size (Standard) | L 135 × W 105 × D 45 mm (Max.) |
| Rubber Mould Size (Wide) | L 135 × W 135 × D 65 mm (Max.) |
| Packing Dimensions | H 565 × W 280 × D 310 mm |
| Net Weight | 8 kg |
Overview
Highlights
- Piston valve with direct flow structure enables extended injection distance and high fill rate.
- Manual lifting fixture allows tool-free, precise mold positioning for quick adjustments.
- Automatic multi-directional micro-adjustment ensures accurate mold-nozzle alignment.
- Supports both manual and automatic wax injection; automatic mode triggered by sensors.
- Digital control of temperature and pressure with programmable accuracy and user settings.
Applications
- Precision wax model production for jewelry manufacturing.
- Vacuum wax injection for industrial casting molds.
- Suitable for rubber molds of various sizes.
Overview
The SANEI Advanced Digital Vacuum Wax Injector features a piston valve with direct-flow structure for injection distances up to 10 times longer than conventional valves, improving fill rates and reducing flash. The manual lifting fixture enables quick, tool-free, and precise mold positioning. Multi-directional micro-adjustment allows for accurate automatic alignment of mold and nozzle. The machine supports both manual and automatic wax injection, with digital controls for temperature and pressure to enhance operational accuracy and flexibility. Automatic injection can be triggered by magnetic induction sensors, as well as push-button operation, allowing for hands-free and efficient workflows.
Package contents
- SANEI ADVANCE Digital Vacuum Wax Injector main unit
- Manual lifting fixture
- User manual
- Power cord
Frequently asked questions
Q
What is the maximum wax injection capacity?
A
The wax cylinder holds approximately 3kg of wax.
Q
Does the machine support automatic injection?
A
Yes, automatic injection can be triggered via magnetic induction sensors.
Q
What mold sizes are compatible?
A
Standard molds up to 135 x 105 x 45 mm and widened molds up to 135 x 135 x 65 mm.
Q
Is preheating required before use?
A
Yes, preheating is recommended to ensure wax flows smoothly and at the correct temperature.
Important notes
- Ensure air input meets required pressure range for optimal vacuum and injection performance.
- Always allow proper preheating for stable wax temperature.
- Only trained personnel should operate the equipment to prevent accidents.
