Waxing & Mould Making

Vacuum Wax Injector

KYG0560

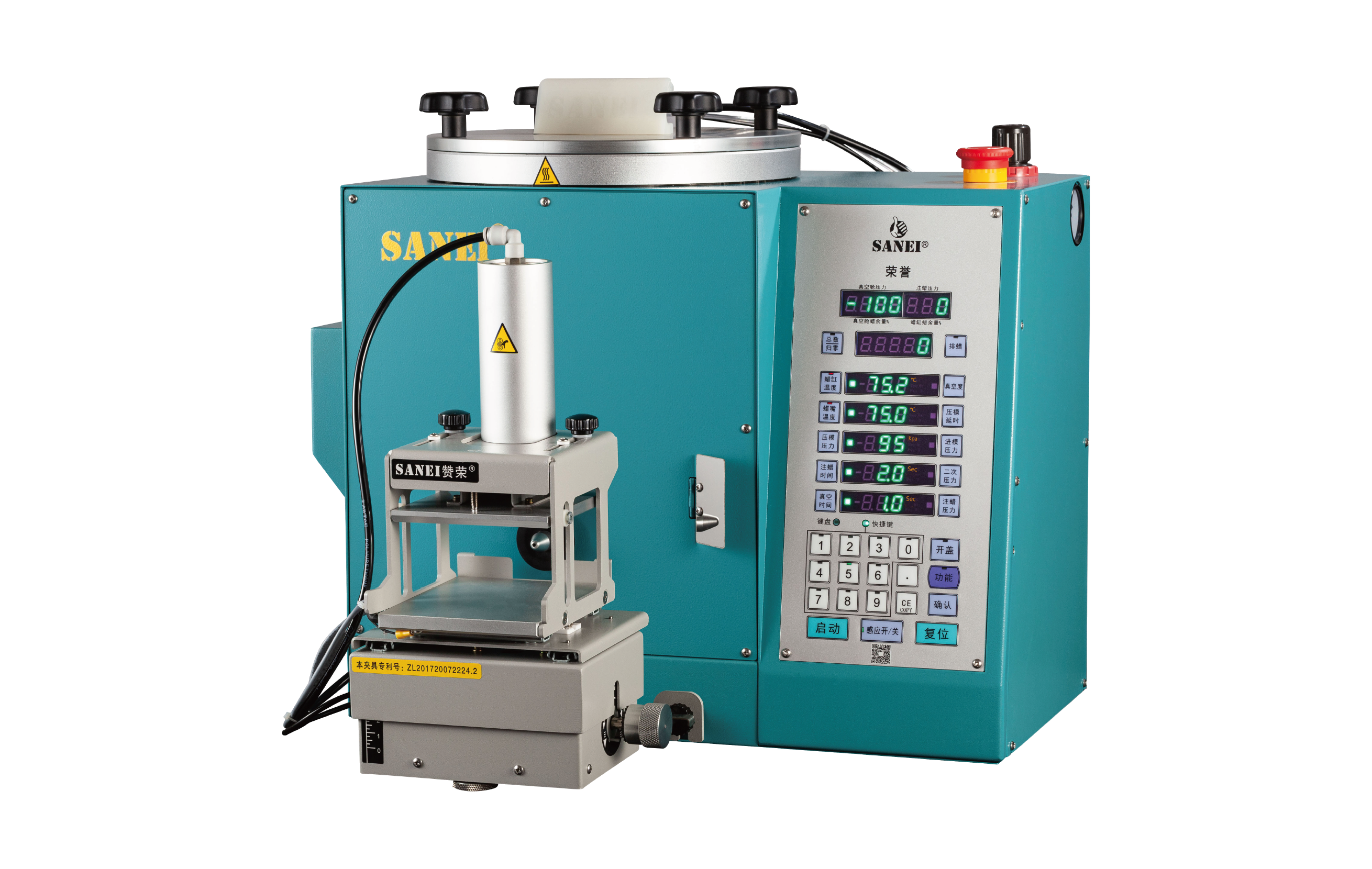

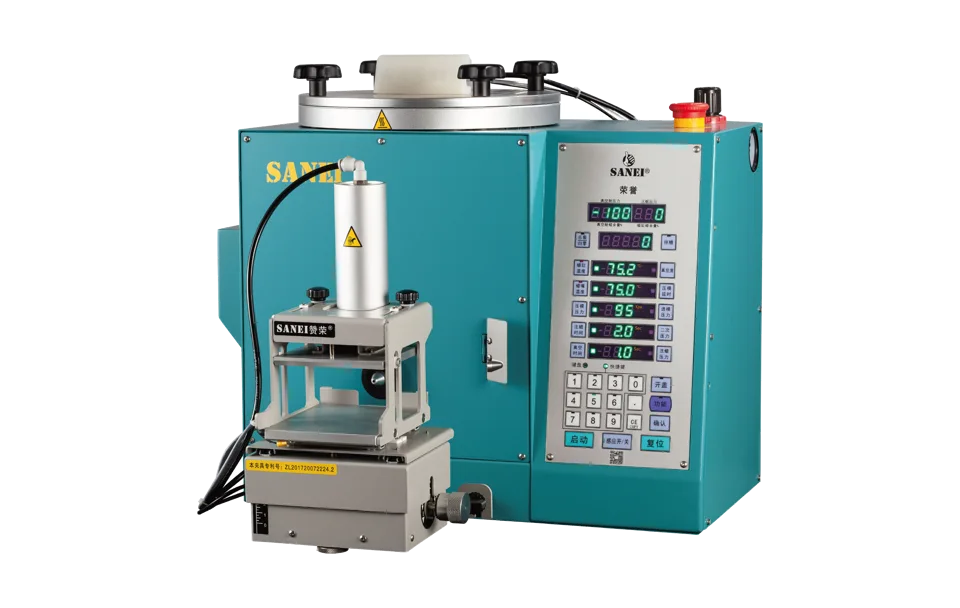

SANEI Honor Digital Vacuum Wax Injector

SANEI · Honor

Innovative digital vacuum wax injector featuring ARM CPU and automation for precise, efficient operation with reduced defects in wax model production.

Share product

WhatsApp

Waxing & Mould Making

Specifications

Wax Injector Specifications
Power SupplySingle-phase, AC 100–220 V ±10%, 50/60 Hz
Rated Power450 W
Temperature Display Range55.0–105.0 ℃ (131–221 ℉)
Temperature Setting Range55.0–100.0 ℃ (131–212 ℉)
Temperature Accuracy±0.5 ℃
Vacuum Time0.0–60 s
Wax Injection Time0.1–180 s
Time Resolution0.1 s
Wax Volume1–10
Vacuum Level40–100%
Scheduled Heating Start Timer0–300 days
Wax Tank CapacityApprox. 3.5 kg
Pressure Gauge Range0–0.22 MPa (0–2.2 kgf/cm²)
Fuse Rating5 A
Packing DimensionsH 600 × W 390 × D 590 mm
Net Weight20 kg
Gross Weight23 kg
Clamp Unit Specifications
Air Supply Pressure0.4–0.8 MPa
Pressure Regulator Range0.4–0.55 MPa
Pressure Sensor Range0–450 kPa
Primary Wax Injection Pressure10–180 kPa / 1.5–26.1 psi
Secondary Wax Injection Pressure30–180 kPa / 4.4–26.1 psi
Secondary Wax Injection Start Delay0.0–1.0 s
Mould Release Delay0.0–20 s
Fixture Clamping Pressure35–450 kPa / 5.1–65.3 psi
Secondary Clamping Pressure35–450 kPa / 5.1–65.3 psi
Fixture Advance Pressure60–150 kPa / 8.7–21.8 psi
Fixture Holding Time0–40 s
Maximum Workpiece Count0–99,999; Total: 99,999
Stored Parameter Sets10 sets
Activation MethodMagnetic sensor (including push button) or foot switch
Rubber Mould Size (Standard)L 135 × W 105 × D 65 mm (Max.)
Rubber Mould Size (Wide)L 135 × W 135 × D 65 mm (Max.)
Packing DimensionsH 565 × W 280 × D 310 mm
Net Weight8 kg
Gross Weight9.5 kg
Vacuum Pump Specifications
Power SupplySingle-phase, AC 100–220 V ±10%, 50/60 Hz
Maximum Power120 W
Ultimate Pressure–0.1 MPa
Pumping Speed3.6 m³/h
Packing DimensionsH 220 × W 275 × D 110 mm
Net Weight7.2 kg
Gross Weight7.7 kg

Overview

Highlights

  • Custom digital display ensures intuitive operation for all users.
  • High-performance ARM CPU supports fast, stable startup and processing.
  • Multi-level real-time detection and monitoring enhance productivity and reduce errors.

Applications

  • Precision wax model injection in jewelry manufacturing.
  • Rapid prototyping of wax models for investment casting.
  • Production setups requiring low defect rates and minimal manual intervention.

Overview

The SANEI Honor Digital Vacuum Wax Injector sets a new standard for wax injection technology, blending a custom digital display for user-friendly control with a powerful ARM processor for rapid, stable operation. Its advanced mechanical design ensures high precision, reduced defects, and less maintenance downtime. Integrated automation—including shortcut keys, mold and air detection, and error prevention—streamlines workflows and maximizes productivity. This makes it ideal for tasks ranging from detailed jewelry prototyping to demanding, scale-driven production environments.

Package contents

  • SANEI Honor Digital Vacuum Wax Injector main unit
  • Operation manual
  • Power cord
  • Standard accessories set

Frequently asked questions

Q

What are the main benefits of the custom digital display?

A

It provides clearer, more intuitive operation by presenting numbers and units together, simplifying the workflow.

Q

What automation features are included?

A

Includes shortcuts for automated operation, mold detection, air supply monitoring, waste wax cover detection, and error prevention.

Q

Can this machine reduce production defects?

A

Yes, advanced mechanical and detection systems significantly reduce bubbles, leaks, and other common defects.

Important notes

  • Ensure proper mold closure and follow maintenance guidelines for best results.
