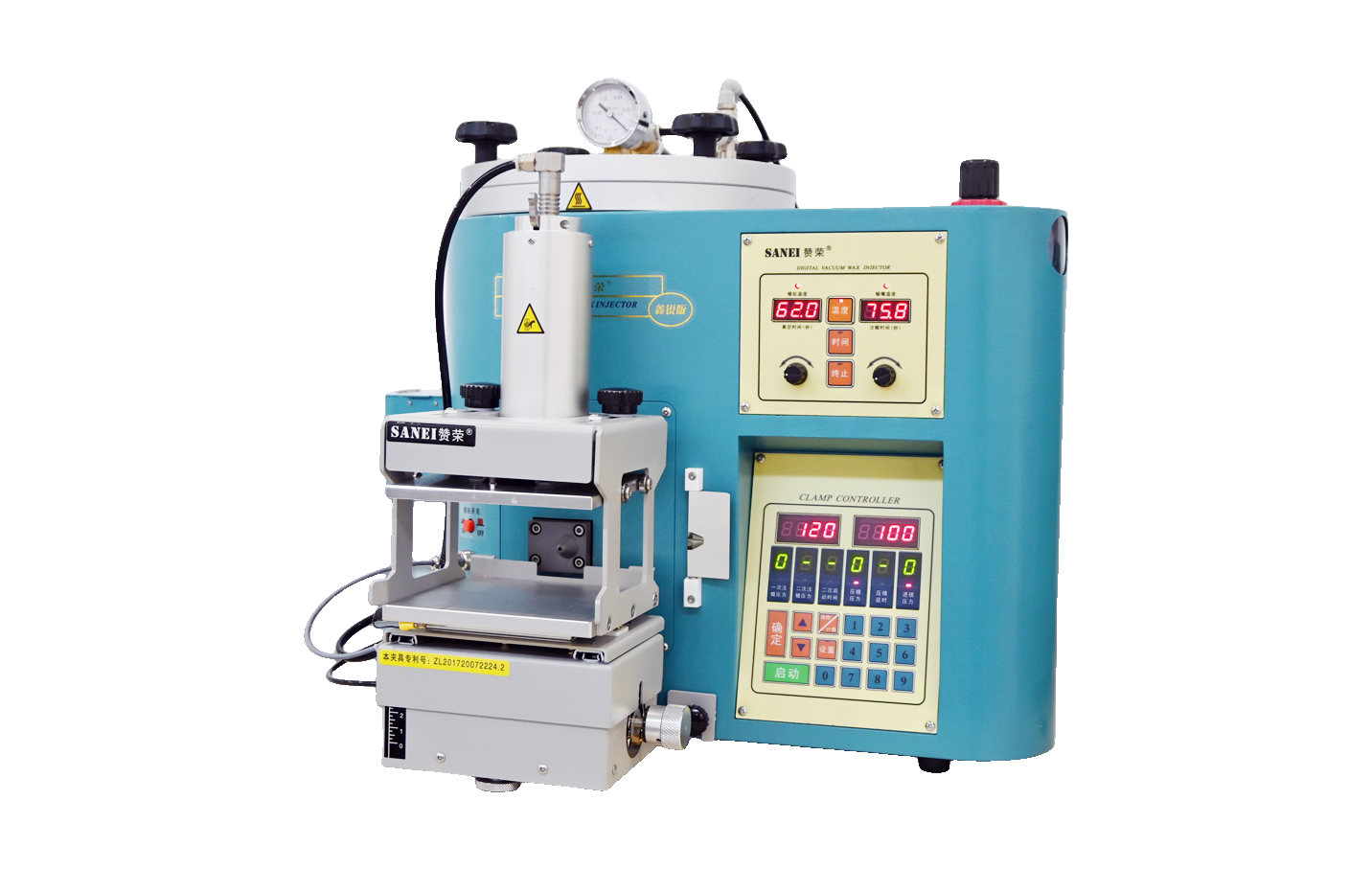

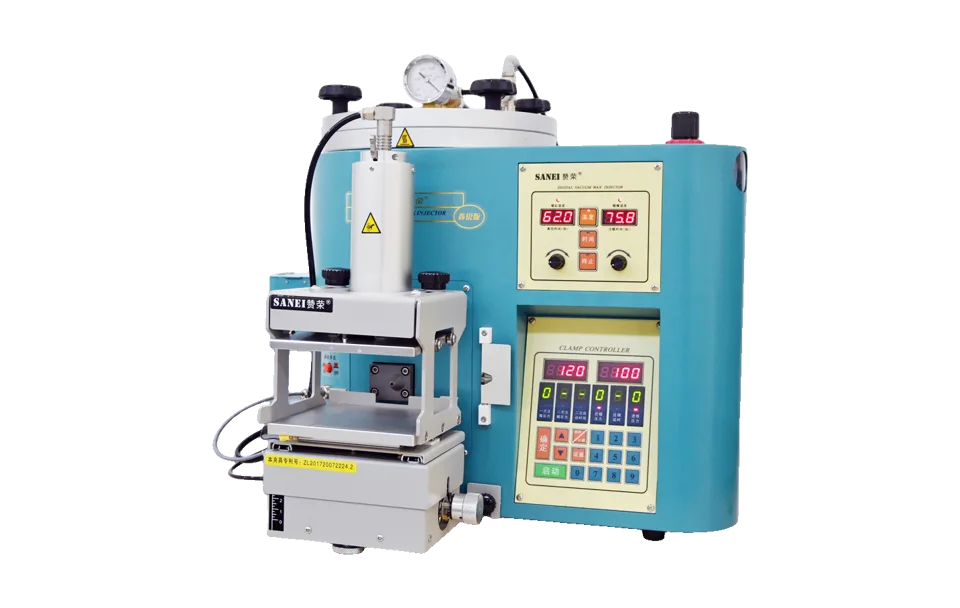

SANEI Pioneer Vacuum Wax Injector
SANEI · PIONEER
Advanced vacuum wax injector with manual lifting fixture for high yield, precise automated mold alignment, and reduced flash.
Waxing & Mould Making
Specifications
| Wax Injector Specifications | |
|---|---|
| Power Supply | Single-phase AC 100–220 V ±10%, 50/60 Hz |
| Rated Power | 500 W |
| Temperature Display Range | 40.0–99.9 °C (104–212 °F) |
| Temperature Setting Range | 40–90 °C (104–194 °F) |
| Temperature Accuracy | ±0.5 °C |
| Vacuum Time Setting Range | 0–12 s |
| Wax Injection Time Setting Range | 0–600 s |
| Scheduled Heating Start Time | 0–99 h |
| Timing Accuracy | 0.1 s |
| Wax Tank Capacity | Approx. 3 kg |
| Vacuum Gauge Range | −0.1–0 MPa |
| Fuse Rated Current | 5 A |
| Packing Dimensions | L 668 x W 395 x D 580 mm |
| Net Weight | 19 kg |
| Clamp Unit Specifications | |
| External Air Pressure | 0.4–0.7 MPa |
| Pressure Regulator Setting Range | 0.25–0.40 MPa |
| Pressure Sensor Display Range | –5–240 kPa |
| Primary Wax Injection Pressure Setting Range | 10–220 kPa |
| Secondary Wax Injection Pressure Setting Range | 10–220 kPa |
| Secondary Wax Injection Start Time Setting Range | 0–99.9 s |
| Clamp Pressure Setting Range | 30–235 kPa |
| Clamp Forward Pressure Setting Range | 65–235 kPa |
| Clamp Hold Time Setting Range | 0–300 s |
| Production Counter Range | 0–9999 |
| Data Storage Capacity | 10,000 sets |
| Activation Method | Magnetic sensor or push button |
| Rubber Mold Size (Standard) | L 135 × W 105 × D 45 mm (max.) |
| Rubber Mold Size (Wide) | L 135 × W 135 × D 65 mm (max.) |
| Packing Dimensions | H 583 × W 285 × D 320 mm |
| Net Weight | 8 kg |
Overview
Highlights
- Pulley drive and straight-through channel for 10x longer injection distance.
- Easy tool-free vertical mold adjustment with manual lifting fixture.
- Multi-directional fine-tuning for precise mold and nozzle alignment.
- Supports both manual and automatic wax injection operations.
- Higher production efficiency and reduced flash compared to traditional models.
Applications
- Jewelry and precision casting mold making.
- Industries requiring high-volume wax pattern production.
- Automated or semi-automated wax injection processes.
- Laboratories and workshops focused on high-yield, low-defect output.
Overview
The SANEI Pioneer Vacuum Wax Injector features an innovative pulley-drive design with a simple, safe internal structure that is easy to maintain. Its cylinder construction and straight-through flow channel achieve about 10 times the injection distance of conventional types, under the same conditions, resulting in higher yield rates and reduced flashing. The upgraded manual lifting fixture enables precise, tool-free vertical mold adjustments with just two fingers and supports both manual and automatic wax injection. Multi-directional fine adjustments ensure optimal nozzle-to-mold alignment, even with slight misalignment.
Package contents
- SANEI XINRUI Vacuum Wax Injector main unit
- Manual lifting fixture
- Power cable
- User manual
Frequently asked questions
Q
What is the maximum wax cylinder capacity?
A
The wax cylinder holds approximately 3Kg.
Q
How is the mold position adjusted?
A
Mold vertical position is easily adjusted with the manual lifting fixture using just two fingers, no tools required.
Q
Can the wax injection process be automated?
A
Yes, the fixture supports both manual and automatic wax injection using an electromagnetic induction device.
Important notes
- Ensure correct voltage and air pressure as per specifications before use.
- Tool-free adjustments facilitated by fixture; avoid using extra force or tools.
- Read the user manual for safe operation and maintenance guidelines.
