KYG0849

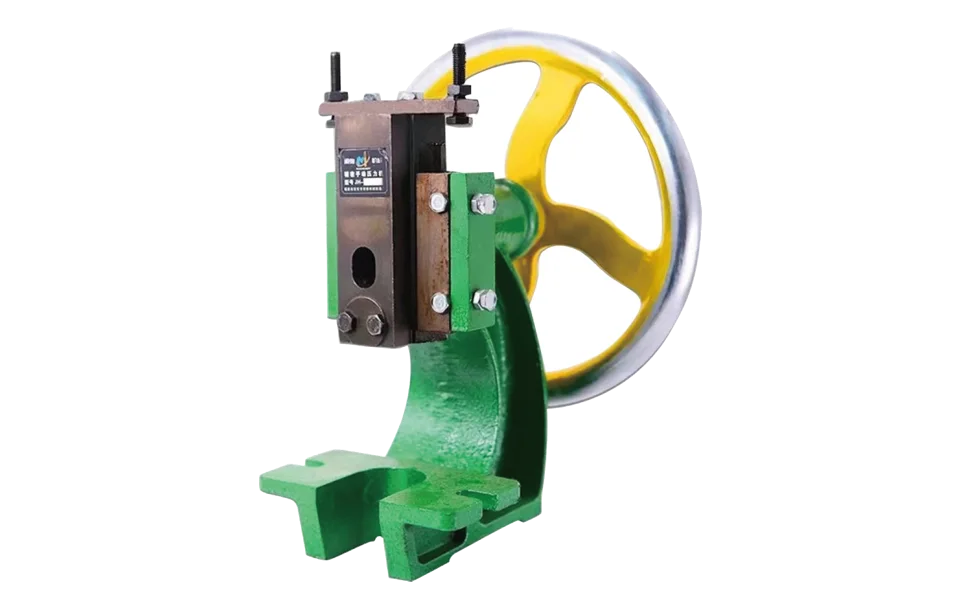

Manual Punch
Durable manual punch for precision metalworking, offered in seven adaptable models for varied punch requirements.
Configure enquiry
Select model
Model: JH-40
Parameter comparison
Model parameter comparison
Compare JH-40, JH-60, JH-80, and JH-100.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected model
JH-40
KYG0849-JH-40
| N Type Diameter | 48x65x68 mm |
|---|---|
| Overall Height | 365 mm |
| Slider Stroke Max Height | 93 mm |
| Slider Stroke Min Height | 70 mm |
| Turntable Diameter | 265 mm |
| Weight | 17 kg |
| Effective Stroke | 25 mm |
Selected model
JH-60
KYG0849-JH-60
| N Type Diameter | 52x76x60 mm |
|---|---|
| Overall Height | 400 mm |
| Slider Stroke Max Height | 115 mm |
| Slider Stroke Min Height | 80 mm |
| Turntable Diameter | 315 mm |
| Weight | 20 kg |
| Effective Stroke | 25 mm |
Selected model
JH-80
KYG0849-JH-80
| N Type Diameter | 63x84x67 mm |
|---|---|
| Overall Height | 415 mm |
| Slider Stroke Max Height | 115 mm |
| Slider Stroke Min Height | 75 mm |
| Turntable Diameter | 340 mm |
| Weight | 28 kg |
| Effective Stroke | 32 mm |
Selected model
JH-100
KYG0849-JH-100
| N Type Diameter | 70x100x68 mm |
|---|---|
| Overall Height | 465 mm |
| Slider Stroke Max Height | 120 mm |
| Slider Stroke Min Height | 80 mm |
| Turntable Diameter | 370 mm |
| Weight | 33 kg |
| Effective Stroke | 32 mm |
Selected model
JH-120
KYG0849-JH-120
| N Type Diameter | 81x110x72 mm |
|---|---|
| Overall Height | 515 mm |
| Slider Stroke Max Height | 150 mm |
| Slider Stroke Min Height | 100 mm |
| Turntable Diameter | 415 mm |
| Weight | 43 kg |
| Effective Stroke | 32 mm |
Selected model
JH-160
KYG0849-JH-160
| N Type Diameter | 81x113x90 mm |
|---|---|
| Overall Height | 560 mm |
| Slider Stroke Max Height | 170 mm |
| Slider Stroke Min Height | 110 mm |
| Turntable Diameter | 450 mm |
| Weight | 51 kg |
| Effective Stroke | 40 mm |
Selected model
JH-200
KYG0849-JH-200
| N Type Diameter | 81x125x95 mm |
|---|---|
| Overall Height | 580 mm |
| Slider Stroke Max Height | 170 mm |
| Slider Stroke Min Height | 120 mm |
| Turntable Diameter | 470 mm |
| Weight | 65 kg |
| Effective Stroke | 50 mm |
Selected variant
JH-40
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
JH-40
Compare variant
JH-60
Overall Height
DifferentSelected variant
Compare variant
Slider Stroke Max Height
DifferentSelected variant
Compare variant
Slider Stroke Min Height
DifferentSelected variant
Compare variant
Turntable Diameter
DifferentSelected variant
Compare variant
Weight
DifferentSelected variant
Compare variant
Effective Stroke
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonModel | |||||||
|---|---|---|---|---|---|---|---|
| N Type Diameter | 48x65x68 mm | 52x76x60 mm | 63x84x67 mm | 70x100x68 mm | 81x110x72 mm | 81x113x90 mm | 81x125x95 mm |
| Overall Height | 365 mm | 400 mm | 415 mm | 465 mm | 515 mm | 560 mm | 580 mm |
| Slider Stroke Max Height | 93 mm | 115 mm | 115 mm | 120 mm | 150 mm | 170 mm | 170 mm |
| Slider Stroke Min Height | 70 mm | 80 mm | 75 mm | 80 mm | 100 mm | 110 mm | 120 mm |
| Turntable Diameter | 265 mm | 315 mm | 340 mm | 370 mm | 415 mm | 450 mm | 470 mm |
| Weight | 17 kg | 20 kg | 28 kg | 33 kg | 43 kg | 51 kg | 65 kg |
| Effective Stroke | 25 mm | 25 mm | 32 mm | 32 mm | 32 mm | 40 mm | 50 mm |
Specifications
| Die Hole Diameter | 16 mm |
|---|
