KYG0811

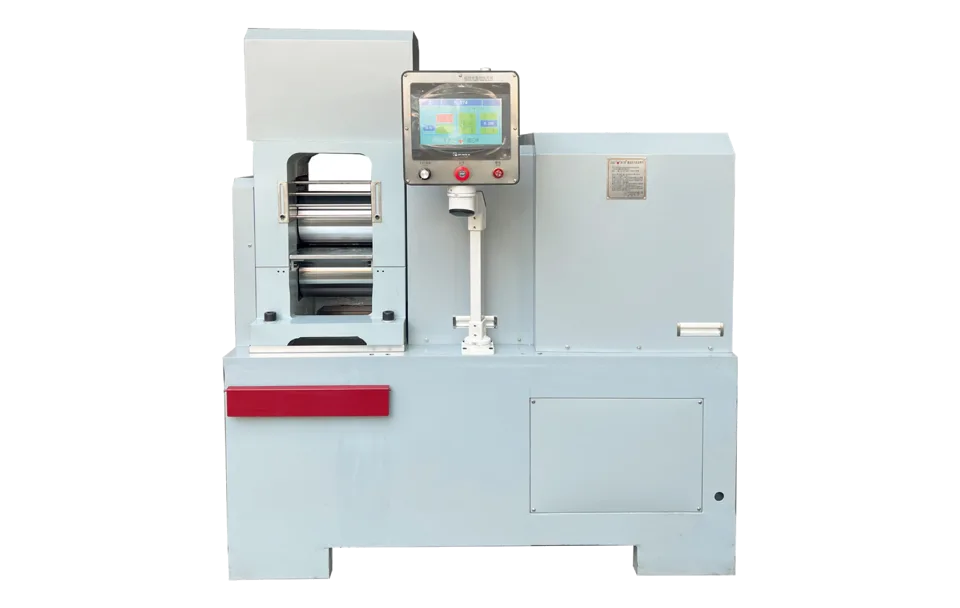

15HP Ultra Precision CNC Sheet Rolling Mill
The 15HP Ultra Precision CNC Sheet Rolling Mill enables highly accurate and repeatable rolling of thin sheet and foil, featuring advanced CNC control and durable construction for industrial or research applications.
Forming & Rolling
Specifications
| Motor/Voltage | 11 kW, 3-phase 380 V; lifting servo motor: 1.3 kW |
|---|---|
| Roller Speed | 15.6 m/min |
| Output Thickness | 30-0.1 mm |
| Roller Material | Cr12MoV |
| Roller Hardness | HRC 60–62 |
| Roller Size | φ180 × 250 mm |
| Size/Weight | 1530 × 840 × 1750 mm / 1800 kg |
Overview
Highlights
- Advanced CNC control ensures precise and consistent thickness in every batch
- Durable, vibration-minimizing structure supports stable, repeatable rolling
- Hardened Cr12MoV rollers offer long service life for continuous operation
Applications
- Precision rolling of metal sheets and foils in manufacturing
- Laboratory or R&D projects needing strict thickness and quality control
- Developing and prototyping advanced materials or alloys
Overview
The 15HP Ultra Precision CNC Sheet Rolling Mill combines advanced CNC automation with a robust heavy-duty frame to deliver precise, repeatable rolling of thin sheet metal and foil. Its high-strength construction, 11 kW motor, Cr12MoV hardened rollers, and responsive servo-driven lift system ensure superior thickness consistency and process stability across demanding production environments.
With a maximum roller speed of 15. 6 m/min and output thickness range from 30 mm to as thin as 0. 1 mm, this mill is purpose-built for applications that require tight tolerances, high throughput, and reliable material quality for both industrial manufacturing and R&D workflows.
