KYG0812

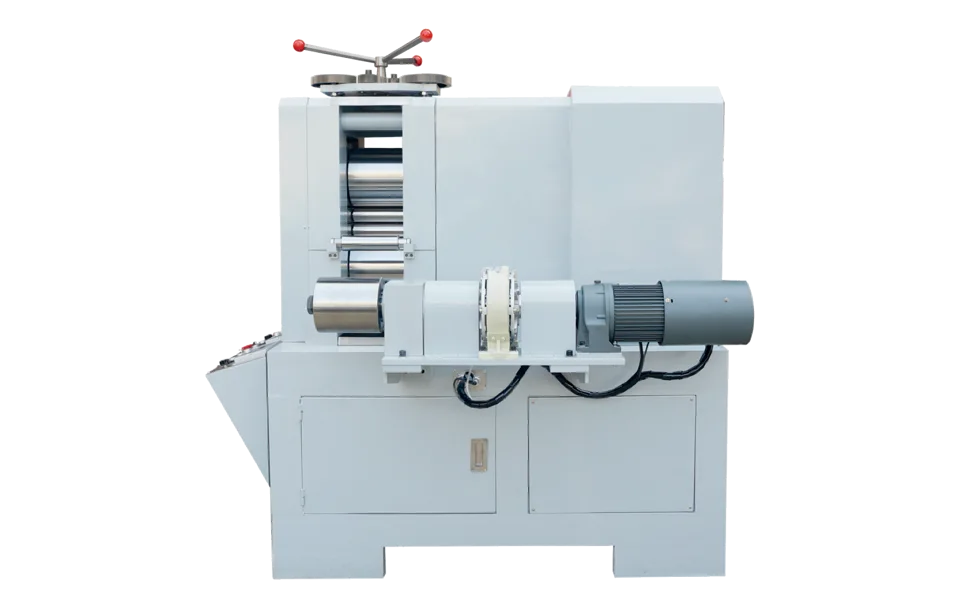

15HP Four-Roller Precision Sheet Rolling Mill
The 15HP Four-Roller Precision Sheet Rolling Mill delivers highly accurate, repeatable rolling for metal sheets with minimal thickness deviation, ideal for demanding industrial and lab environments.
Forming & Rolling
Specifications
| Motor/Voltage | 11 kW, three phase 380 V |
|---|---|
| Roller Speed | 20 m/min |
| Output Thickness | 0.5~0.008 mm (60 mm brass strip) ≤ ±0.0025 mm |
| Roller Size/Roller Hardness | DC53 φ52 × 200 mm, HRC 60~63 |
| Roller Material | Cr12MoV φ200 × 200 mm, HRC 60~62 |
| Magnetic Powder Coiler/Winding Motor | 10 kg (optional), 10 kg: 2.2 kW |
| Size/Weight | L×W×H (1570 × 1170 × 1600) mm, 2200 kg |
Overview
Highlights
- Ensures exceptional accuracy with ≤ ±0.0025mm thickness deviation
- Long-lasting performance with DC53 and Cr12MoV rollers
- 11KW motor supports steady, efficient processing
Applications
- Precision rolling of copper, aluminum, and alloy sheets
- Manufacturing laboratory trials and sample preparation
- Industrial sheet processing production lines
Overview
The 15HP Four-Roller Precision Sheet Rolling Mill is engineered for top-tier accuracy in metal sheet and strip processing. Its advanced four-roller design achieves precise dimensional tolerances and consistent thickness, enabling high-quality results across copper, aluminum, and alloy materials. The robust construction incorporates a powerful 11 kW motor and wear-resistant DC53 and Cr12MoV rollers, ensuring efficient operation and longevity even under intensive use.
This mill is tailored for manufacturers and laboratories that require uniform, high-precision sheet production with reliable repeatability. Its versatility and performance make it a valuable asset for both small-batch experimental work and continuous industrial production lines.
