KYG0800

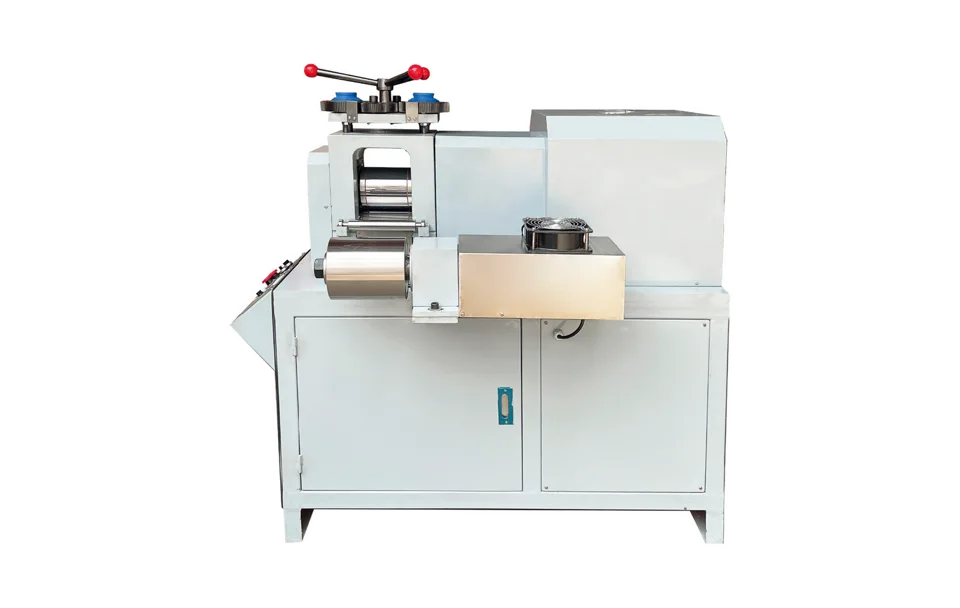

5.5HP Precision Tungsten Carbide Rolling Mill with Torque Motor Coiler
5. 5HP Precision Tungsten Carbide Rolling Mill with Torque Motor Coiler features torque motor coiler, supporting ultra-thin sheet production, automated winding, and high durability.
Forming & Rolling
Specifications
| Motor Voltage | Three Phase 380 V |
|---|---|
| Motor Power | 4 kW |
| Machine Weight | 720 kg |
| Overall Dimensions | 1320 × 1160 × 1370 mm |
| Roller Speed | 10.7 m/min |
| Sheet Thickness Range | 22–0.1 mm |
| Roller Material | Tungsten Carbide |
| Roller Hardness | HRA 92–93 |
| Roller Size | Φ123 × 152 mm (alloy length 120 mm) |
| Lubrication System | Bearing bushings lubricated by yellow grease |
Overview
Highlights
- Delivers high-precision, stable sheet thickness for demanding production needs.
- Automated torque motor coiler increases efficiency and smooth winding.
- Durable tungsten carbide rollers offer excellent wear resistance and extended service life.
Applications
- Forming ultra-thin precision alloy sheets for electronics and aerospace industries.
- Quality-controlled rolling operations in laboratories or R&D centers.
- Manufacture of high-purity metal foils, specialty plates, and research samples.
Overview
5.5HP Precision Tungsten Carbide Rolling Mill with Torque Motor Coiler features Torque Motor Coiler The 5. 5HP Precision Tungsten Carbide Rolling Mill with Torque Motor Coiler is designed for high-accuracy rolling of thin metal sheets. It features tungsten carbide rollers that provide exceptional wear resistance and long service life, ensuring stable sheet thickness and mirror surface finish for demanding production requirements.
Its automated torque motor coiler streamlines material handling and winding, significantly improving operational efficiency. The robust construction and precise controls make it suitable for industrial settings as well as research and development environments requiring thin, high-purity alloy sheets.
