7.5HP Ultra Precision Tungsten Carbide CNC Sheet Rolling Mill with Magnetic Powder Clutch Coiler
View details
←Back to product range
Forming & Rolling
Sheet & Wire Rolling Mill
KYG0804

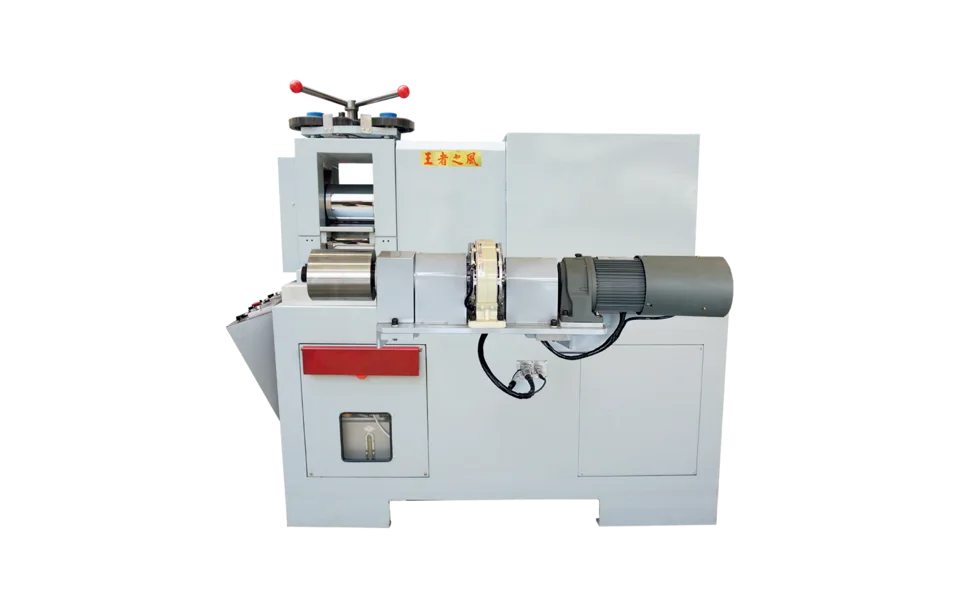

7.5HP Tungsten Carbide Sheet Rolling Mill
High-precision 7.5HP tungsten carbide sheet rolling mill with magnetic powder clutch coiler for smooth production.
Forming & Rolling
Specifications
| Motor/Voltage | 5.5 kW 3-phrase 380 V |
|---|---|
| Roller Speed | 11.4 m/min |
| Output Thickness | 25~0.1 mm |
| Roller Material/Roller Hardness | Cemented Carbide HRA 92~93 |
| Roller Size | φ132 × 180 mm (Alloy length 120 mm) |
| Magnetic Powder Coiler/Winding Motor | 10 kg (optional) 10 kg: 2.2 kW |
| Size/Weight | 1580 × 1350 × 1420 mm 1200 kg |
Overview
Highlights
- Consistent, ultra-precise sheet thickness for quality control
- Exceptional roller durability minimizes maintenance and downtime
- Automatic sheet winding boosts workflow efficiency
Applications
- Production of ultra-thin precision metal sheets
- Materials testing and prototyping in research labs
- Processing metal foils or strips in industrial manufacturing
Overview
The 7.5HP Tungsten Carbide Sheet Rolling Mill is designed for producing superior thin metal sheets with exceptional precision and consistency. Equipped with durable tungsten carbide rollers, it delivers excellent surface finish and uniform thickness, even when processing difficult materials. The integrated magnetic powder clutch coiler automates sheet winding, simplifying handling and improving operational efficiency.
Ideal for industrial manufacturing and research applications, this rolling mill ensures reliable performance and precise results in tasks such as material development, prototyping, and ultra-thin metal sheet production. Its robust construction and advanced technology minimize maintenance while maximizing throughput and product quality.
