Forming & Rolling

Sheet & Wire Rolling Mill

KYG0805

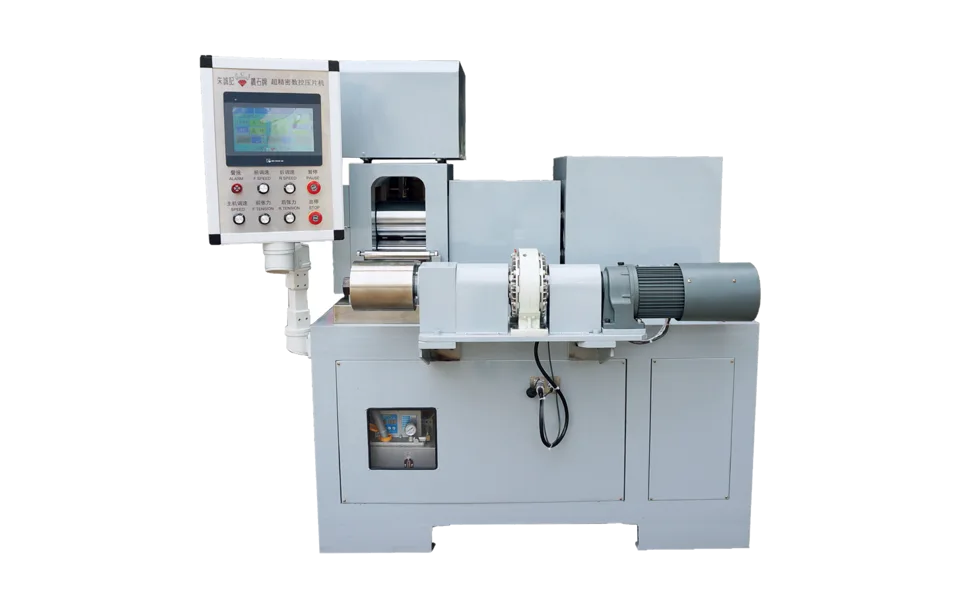

7.5HP Ultra Precision CNC Sheet Rolling Mill with Magnetic Powder Clutch Coiler

ZCJ

7. 5HP Ultra Precision CNC Sheet Rolling Mill with Magnetic Powder Clutch Coiler features Magnetic Powder Clutch Coiler delivers automated, high-precision rolling and stable coiling for demanding R&D and pilot-scale sheet processing.

Share product

WhatsApp

Forming & Rolling

Specifications

Motor/Voltage5.5 kW, three-phase 380 V, lifting servo 0.85 kW
Roller Speed11.4 m/min
Output Thickness25–0.1 mm
Roller Material/Roller HardnessCr12MoV HRC 60–62
Roller Sizeφ132 × 180 mm
Magnetic Powder Coiler/Winding Motor10 kg (optional) 10 kg: 2.2 kW
Size/Weight1420 × 1350 × 1600 mm / 1300 kg

Overview

Highlights

  • Automated thickness and speed control for consistent output
  • Magnetic powder clutch coiler enhances process stability and safety
  • Engineered for advanced R&D and small-batch specialty manufacturing

Applications

  • Precision rolling for battery electrodes and electronic materials
  • Small-batch and pilot-scale material development
  • Quality assurance in research or high-spec industrial production

Overview

7.5HP Ultra Precision CNC Sheet Rolling Mill with Magnetic Powder Clutch Coiler The 7. 5HP Ultra Precision CNC Sheet Rolling Mill with Magnetic Powder Clutch Coiler is designed for applications demanding exceptional thickness control, material uniformity, and streamlined automation. Its CNC-operated system enables precise adjustment of rolling parameters, supporting a variety of specialty sheet materials with minimal human intervention.

Equipped with a magnetic powder clutch coiler, this mill ensures stable winding and enhanced safety, making it well-suited for handling sensitive or high-value materials. Its robust construction and fine-tuning capabilities make it ideal for laboratory research, pilot production runs, and workflows requiring consistent quality and efficiency.
