KYG0814

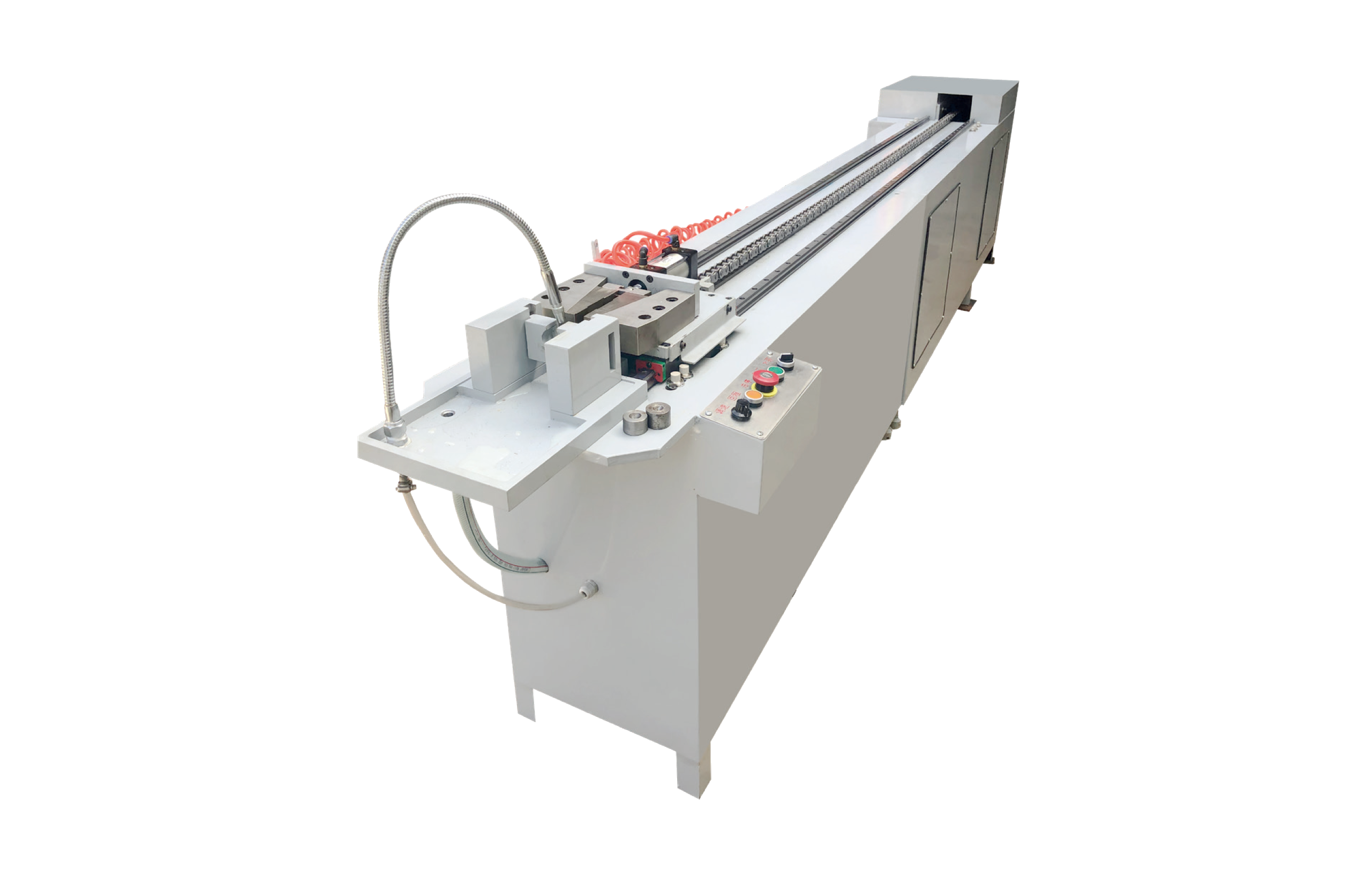

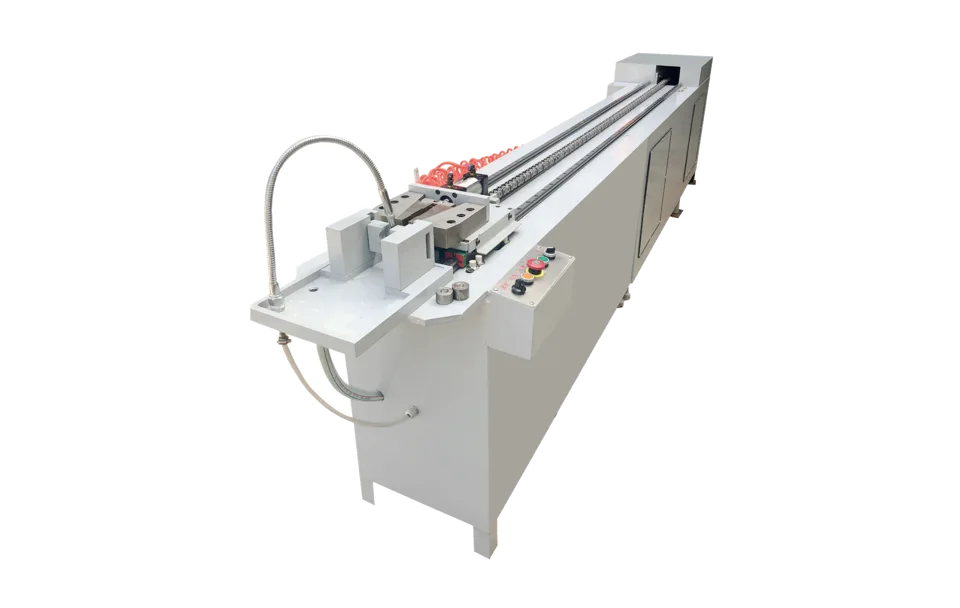

3.8M Pneumatic Tube Drawing Machine
3. 8M Pneumatic Tube Drawing Machine offers efficient pneumatic-driven drawing of tubes and wires up to 13mm, ideal for precision metalworking and small production runs.
Forming & Rolling
Specifications
| Motor/Voltage | 4 kW, Three-phase 380 V |
|---|---|
| Effective Distance | 2.1 m |
| Tube Drawing Size | ≤13 mm |
| Wire Drawing Size | ≤10 mm |
| Drawing Speed | 9 m/min |
| Electric Cooling Pump | Three-phase 380 V 60 W |
| Size (L×W×H) | 3850 × 580 × 980 mm |
| Weight | 550 kg |
Overview
Highlights
- Efficient pneumatic drive for smooth tube and wire drawing applications
- Integrated electric cooling system supports stable, continuous production
- Handles tubes up to 13mm and wires up to 10mm for versatile use
Applications
- Precision tube and wire production in metalworking workshops
- Development of prototypes requiring consistent drawing quality
- Small-batch industrial processing needing stable operation
Overview
3.8M Pneumatic Tube Drawing Machine 8M Pneumatic Tube Drawing Machine The 3. 8M Pneumatic Tube Drawing Machine is engineered for efficient tube and wire drawing processes in demanding workshop and light industrial settings. With pneumatic drive technology and a robust 4KW motor, it reliably handles tubes up to 13mm and wires up to 10mm, ensuring consistent output and high productivity.
Its integrated electric cooling pump supports continuous operation, reducing downtime. Designed for easy operation, the machine’s stable structure and automated features make it especially suited for batch production, prototyping, and processing applications where accuracy and repeatability are essential.
