Melting & Casting
Crucibles & Melting Dishes
KYG1507

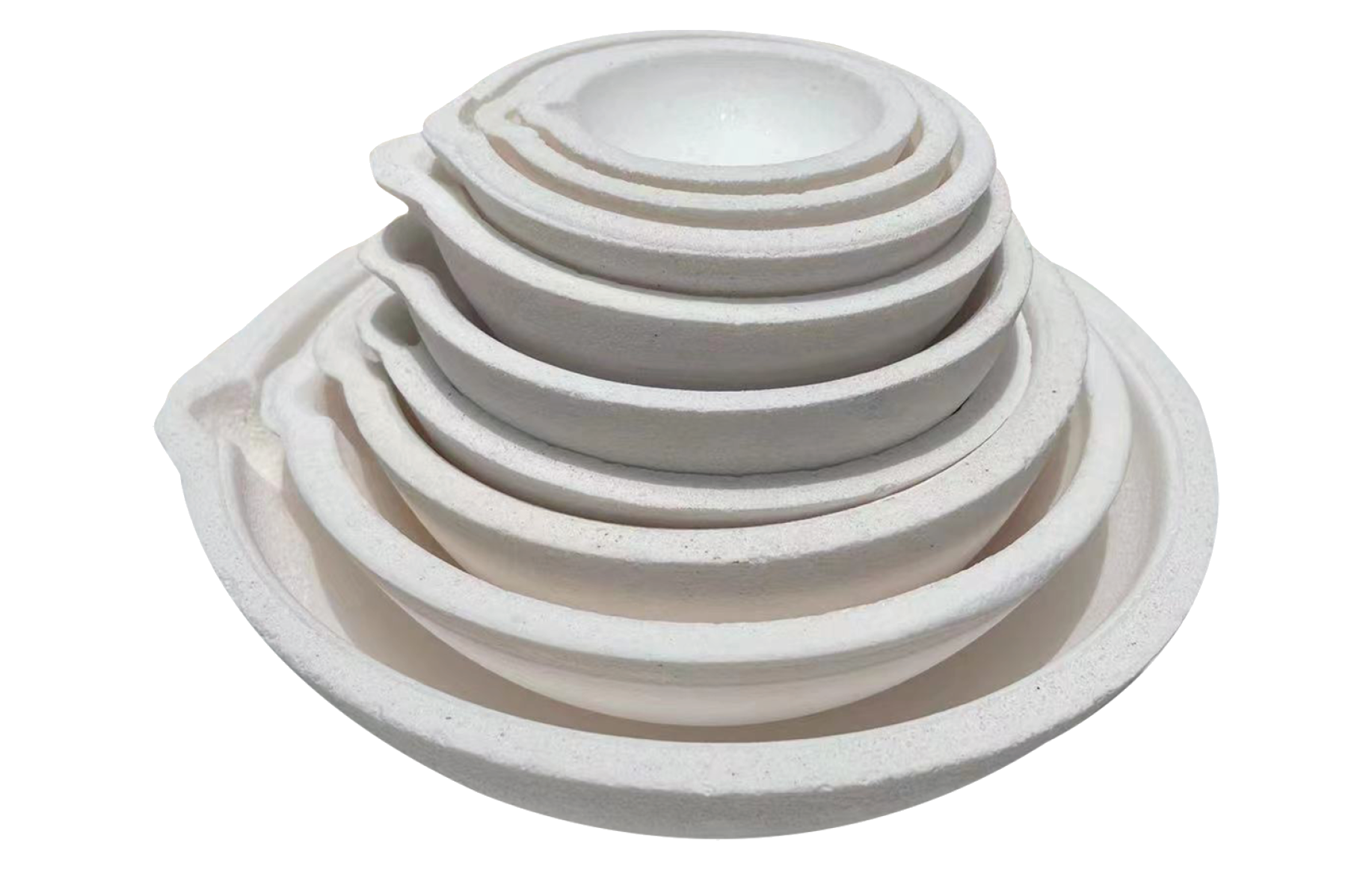

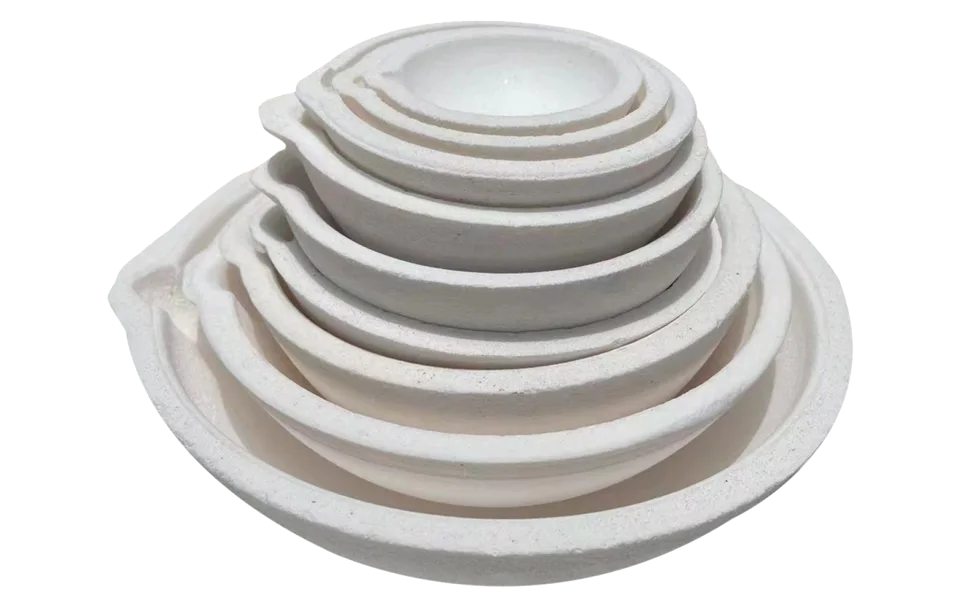

KYG Quartz Ceramic Melting Dish
Customization Available
Quartz ceramic melting dish for jewelry metal melting. Select the listed size to match the metal, charge and heating setup.
Configure enquiry
Select size
Size: 100g
Parameter comparison
Size parameter comparison
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected size
100g
KYG1507-100G
| Box Weight (kg) | 20 |
|---|---|
| Diameter (mm) | Φ56.5 |
| Height (mm) | H19 |
| Weight (G) | 30.6 |
| Quantity per Box | 600 |
Selected size
150g
KYG1507-150G
| Box Weight (kg) | 19 |
|---|---|
| Diameter (mm) | Φ68 |
| Height (mm) | H25 |
| Weight (G) | 54 |
| Quantity per Box | 400 |
Selected size
250g
KYG1507-250G
| Box Weight (kg) | 18 |
|---|---|
| Diameter (mm) | Φ83 |
| Height (mm) | H34 |
| Weight (G) | 90 |
| Quantity per Box | 210 |
Selected size
500g
KYG1507-500G
| Box Weight (kg) | 18 |
|---|---|
| Diameter (mm) | Φ92 |
| Height (mm) | H39 |
| Weight (G) | 148.4 |
| Quantity per Box | 130 |
Selected size
750g
KYG1507-750G
| Box Weight (kg) | 18 |
|---|---|
| Diameter (mm) | Φ99 |
| Height (mm) | H40 |
| Weight (G) | 177.0 |
| Quantity per Box | 120 |
Selected size
1000g
KYG1507-1000G
| Box Weight (kg) | 18 |
|---|---|
| Diameter (mm) | Φ106.7 |
| Height (mm) | H42 |
| Weight (G) | 167 |
| Quantity per Box | 100 |
Selected size
1500g
KYG1507-1500G
| Box Weight (kg) | 17 |
|---|---|
| Diameter (mm) | Φ123.5 |
| Height (mm) | H51 |
| Weight (G) | 271 |
| Quantity per Box | 60 |
Selected size
2500g
KYG1507-2500G
| Box Weight (kg) | 16 |
|---|---|
| Diameter (mm) | Φ140 |
| Height (mm) | H57 |
| Weight (G) | 303 |
| Quantity per Box | 50 |
Selected size
5000g
KYG1507-5000G
| Box Weight (kg) | 17 |
|---|---|
| Diameter (mm) | Φ169 |
| Height (mm) | H62 |
| Weight (G) | 526 |
| Quantity per Box | 30 |
Selected size
10000g
KYG1507-10000G
| Box Weight (kg) | 15 |
|---|---|
| Diameter (mm) | Φ215 |
| Height (mm) | H84 |
| Weight (G) | 940 |
| Quantity per Box | 14 |
Selected variant
100g
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
100g
Compare variant
150g
Diameter (mm)
DifferentSelected variant
Compare variant
Height (mm)
DifferentSelected variant
Compare variant
Weight (G)
DifferentSelected variant
Compare variant
Quantity per Box
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonSize | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Box Weight (kg) | 20 | 19 | 18 | 18 | 18 | 18 | 17 | 16 | 17 | 15 |
| Diameter (mm) | Φ56.5 | Φ68 | Φ83 | Φ92 | Φ99 | Φ106.7 | Φ123.5 | Φ140 | Φ169 | Φ215 |
| Height (mm) | H19 | H25 | H34 | H39 | H40 | H42 | H51 | H57 | H62 | H84 |
| Weight (G) | 30.6 | 54 | 90 | 148.4 | 177.0 | 167 | 271 | 303 | 526 | 940 |
| Quantity per Box | 600 | 400 | 210 | 130 | 120 | 100 | 60 | 50 | 30 | 14 |
Specifications
| Material | Quartz ceramic |
|---|---|
| Available Size | 2–200 tael |
Overview
Highlights
- Listed material: quartz ceramic.
- Multiple size options for selection against your existing melting setup.
Applications
- Metal melting during jewelry making with a compatible dish and heating setup.
Overview
The KYG Quartz Ceramic Melting Dish is for metal melting in jewelry workshops. The listed material is quartz ceramic, with multiple size options available on this page.
Choose the dish by its dimensions and compatibility with your heating setup. Nominal capacity labels do not represent the same usable charge for every metal. Send KYG the metal, intended charge and existing dish dimensions to confirm the appropriate size and operating conditions.
Customization options are available on request. Scope can include branding, packaging, documentation, voltage or plug options, and selected configuration adjustments, depending on the model, order quantity, and project requirements.
