KYG1509

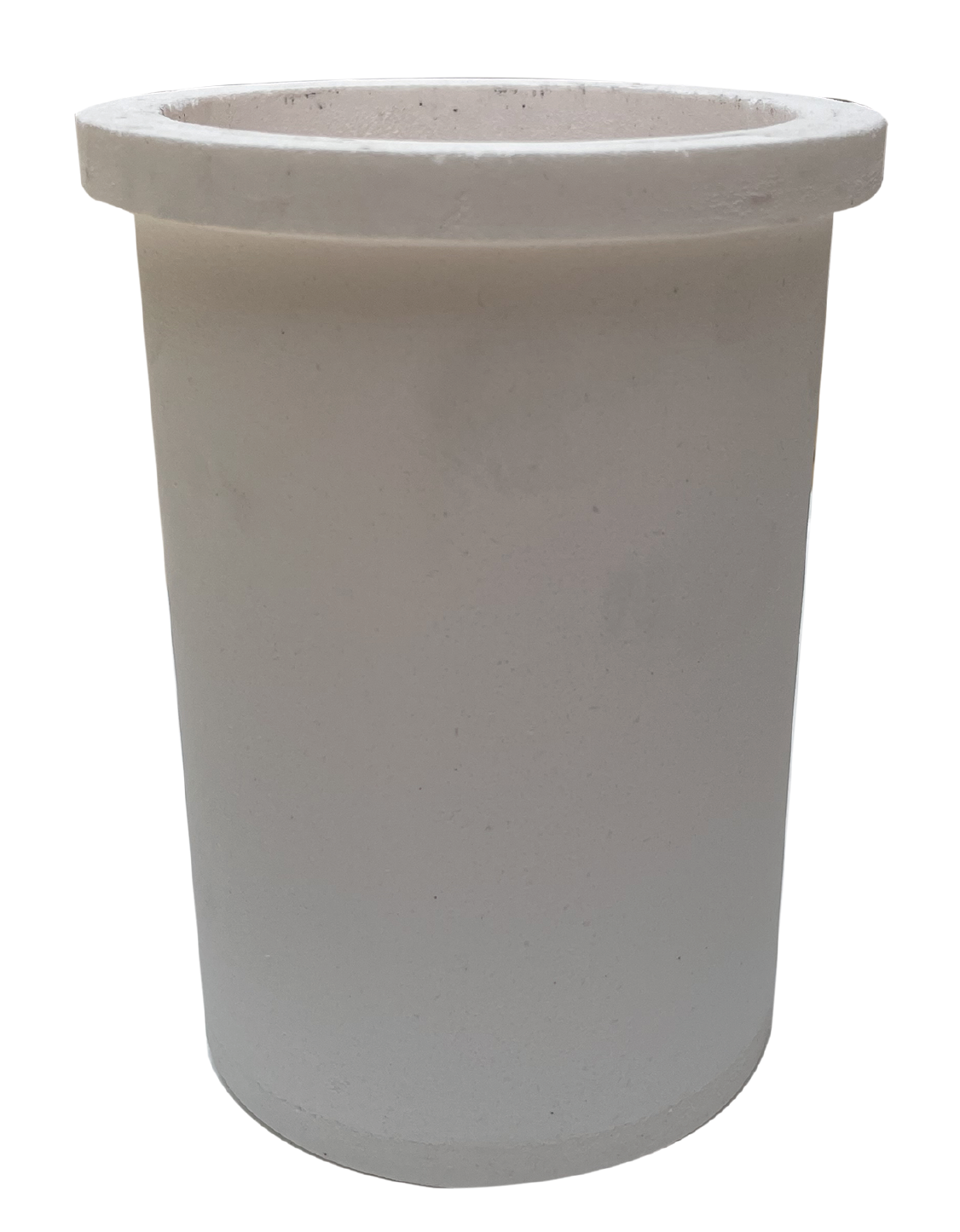

KYG Graphite Crucible with Quartz Sleeve
Customization Available
Engineered for durability, the KYG Graphite Crucible with Quartz Sleeve combines a graphite body and ceramic shielding to ensure safe, long-lasting performance in high-temperature metal melting for labs and industry.
Configure enquiry
Select specification
Capacity/Size: 1kg
Parameter comparison
Variant parameter comparison
Compare 1kg, 2.5kg, 2kg, and 3kg.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected specification
1kg
KYG1509-1KG
| Box Weight | 20 kg |
|---|---|
| Weight | 183.3 g |
| H1 | 88 mm |
| H2 | 77 mm |
| Ø1 | 69 mm |
| Ø2 | 49.3 mm |
| Ø3 | 58 mm |
| Option Code | KYG1509–1 kg |
| Quantity per Box | 75 |
Selected specification
2.5kg
KYG1509-2.5KG
| Box Weight | 16 kg |
|---|---|
| Weight | 300.7 g |
| H1 | 126 mm |
| H2 | 118 mm |
| Ø1 | 80 mm |
| Ø2 | 59 mm |
| Ø3 | 69.3 mm |
| Option Code | KYG1509–2.5 kg |
| Quantity per Box | 40 |
Selected specification
2kg
KYG1509-2KG
| Box Weight | 20 kg |
|---|---|
| Weight | 283.9 g |
| H1 | 110 mm |
| H2 | 103.8 mm |
| Ø1 | 81 mm |
| Ø2 | 59.8 mm |
| Ø3 | 70 mm |
| Option Code | KYG1509–2 kg |
| Quantity per Box | 50 |
Selected specification
3kg
KYG1509-3KG
| Box Weight | 16 kg |
|---|---|
| Weight | 370 g |
| H1 | 104.4 mm |
| H2 | 98 mm |
| Ø1 | 97.4 mm |
| Ø2 | 78 mm |
| Ø3 | 94.4 mm |
| Option Code | KYG1509–3 kg |
| Quantity per Box | 33 |
Selected specification
4kg
KYG1509-4KG
| Box Weight | 16 kg |
|---|---|
| Weight | 429 g |
| H1 | 135.1 mm |
| H2 | 125.5 mm |
| Ø1 | 101 mm |
| Ø2 | 79.7 mm |
| Ø3 | 88 mm |
| Option Code | KYG1509–4 kg |
| Quantity per Box | 25 |
Selected specification
5.5kg
KYG1509-5.5KG
| Box Weight | 13 kg |
|---|---|
| Weight | 734 g |
| H1 | 154 mm |
| H2 | 145 mm |
| Ø1 | 119 mm |
| Ø2 | 94.7 mm |
| Ø3 | 107.5 mm |
| Option Code | KYG1509–5.5 kg |
| Quantity per Box | 16 |
Selected specification
5kg
KYG1509-5KG
| Box Weight | 13 kg |
|---|---|
| Weight | 623.7 g |
| H1 | 138 mm |
| H2 | 125.6 mm |
| Ø1 | 118.4 mm |
| Ø2 | 91 mm |
| Ø3 | 101.6 mm |
| Option Code | KYG1509–5 kg |
| Quantity per Box | 18 |
Selected specification
6kg
KYG1509-6KG
| Box Weight | 13 kg |
|---|---|
| Weight | 941.6 g |
| H1 | 181 mm |
| H2 | 171 mm |
| Ø1 | 128.3 mm |
| Ø2 | 104 mm |
| Ø3 | 117.5 mm |
| Option Code | KYG1509–6 kg |
| Quantity per Box | 11 |
Selected specification
8kg
KYG1509-8KG
| Box Weight | 16 kg |
|---|---|
| Weight | 1679 g |
| H1 | 185 mm |
| H2 | 171 mm |
| Ø1 | 145 mm |
| Ø2 | 114.6 mm |
| Ø3 | 135 mm |
| Option Code | KYG1509–8 kg |
| Quantity per Box | 10 |
Selected variant
1kg
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
1kg
Compare variant
2.5kg
Weight
DifferentSelected variant
Compare variant
H1
DifferentSelected variant
Compare variant
H2
DifferentSelected variant
Compare variant
Ø1
DifferentSelected variant
Compare variant
Ø2
DifferentSelected variant
Compare variant
Ø3
DifferentSelected variant
Compare variant
Option Code
DifferentSelected variant
Compare variant
Quantity per Box
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonCapacity/Size | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Box Weight | 20 kg | 16 kg | 20 kg | 16 kg | 16 kg | 13 kg | 13 kg | 13 kg | 16 kg |
| Weight | 183.3 g | 300.7 g | 283.9 g | 370 g | 429 g | 734 g | 623.7 g | 941.6 g | 1679 g |
| H1 | 88 mm | 126 mm | 110 mm | 104.4 mm | 135.1 mm | 154 mm | 138 mm | 181 mm | 185 mm |
| H2 | 77 mm | 118 mm | 103.8 mm | 98 mm | 125.5 mm | 145 mm | 125.6 mm | 171 mm | 171 mm |
| Ø1 | 69 mm | 80 mm | 81 mm | 97.4 mm | 101 mm | 119 mm | 118.4 mm | 128.3 mm | 145 mm |
| Ø2 | 49.3 mm | 59 mm | 59.8 mm | 78 mm | 79.7 mm | 94.7 mm | 91 mm | 104 mm | 114.6 mm |
| Ø3 | 58 mm | 69.3 mm | 70 mm | 94.4 mm | 88 mm | 107.5 mm | 101.6 mm | 117.5 mm | 135 mm |
| Option Code | KYG1509–1 kg | KYG1509–2.5 kg | KYG1509–2 kg | KYG1509–3 kg | KYG1509–4 kg | KYG1509–5.5 kg | KYG1509–5 kg | KYG1509–6 kg | KYG1509–8 kg |
| Quantity per Box | 75 | 40 | 50 | 33 | 25 | 16 | 18 | 11 | 10 |
Specifications
| Material | Graphite Crucible with Quartz Sleeve |
|---|
Overview
Highlights
- Withstands repeated thermal cycling, minimizing replacement frequency
- Enhanced containment and safety for molten metals with ceramic shielding
- Multiple sizes for flexible use in research or production
Applications
- Lab-scale melting and experimental metallurgy
- Routine foundry work and small casting production
- Material property or high-temperature durability testing
Overview
KYG Graphite Crucible with Quartz Sleeve is designed to deliver reliable performance in demanding melting operations. Its graphite core, paired with a tough ceramic shield, provides exceptional thermal stability and containment, reducing wear from repeated heating cycles. This construction minimizes frequency of replacement and enhances operator safety, making it suitable for metallurgy labs, foundries, and environments requiring repetitive or long-duration high-temperature use.
Customization options are available on request. Scope can include branding, packaging, documentation, voltage or plug options, and selected configuration adjustments, depending on the model, order quantity, and project requirements.
