Melting & Casting
Crucibles & Melting Dishes
KYG1510

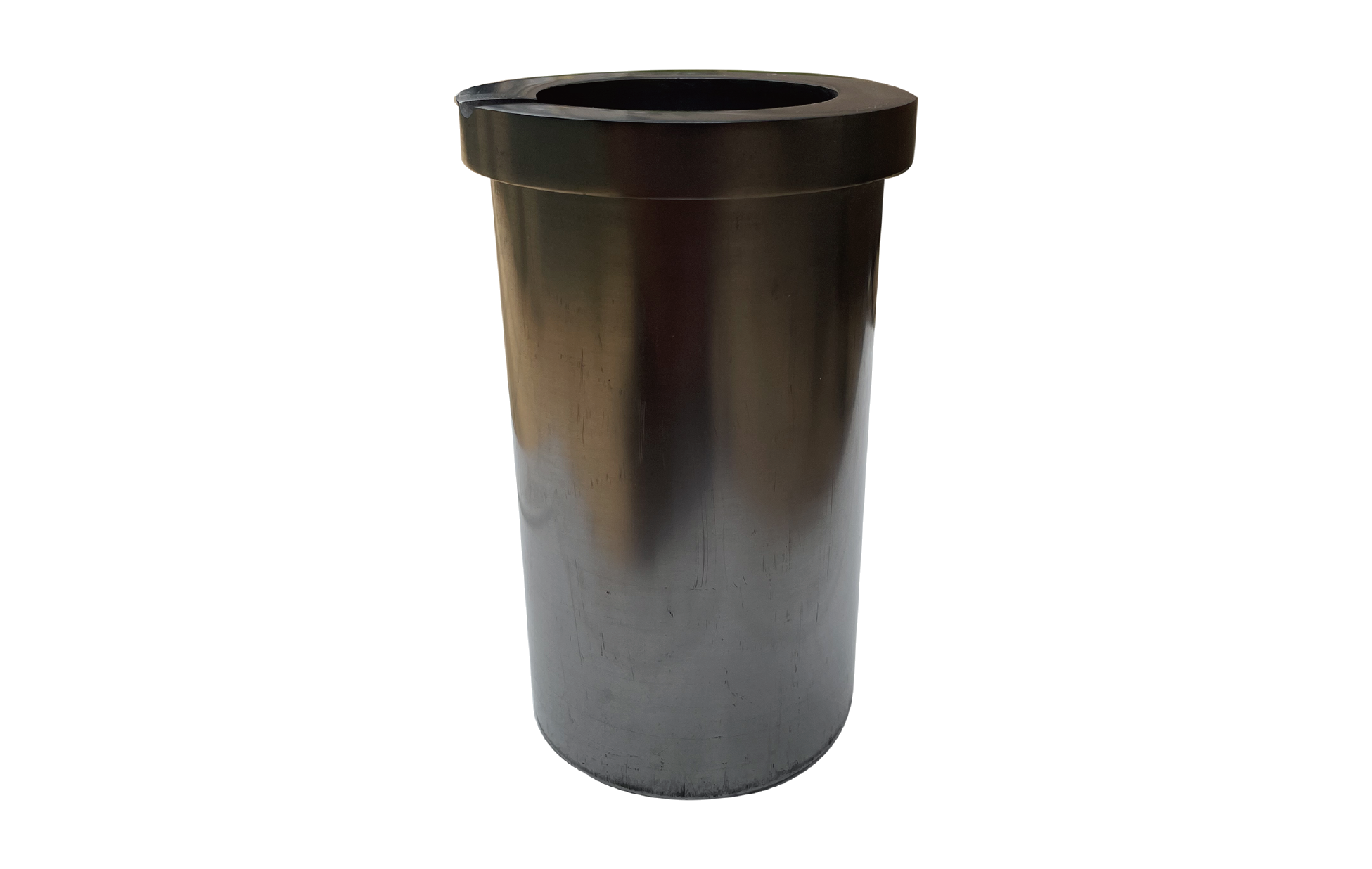

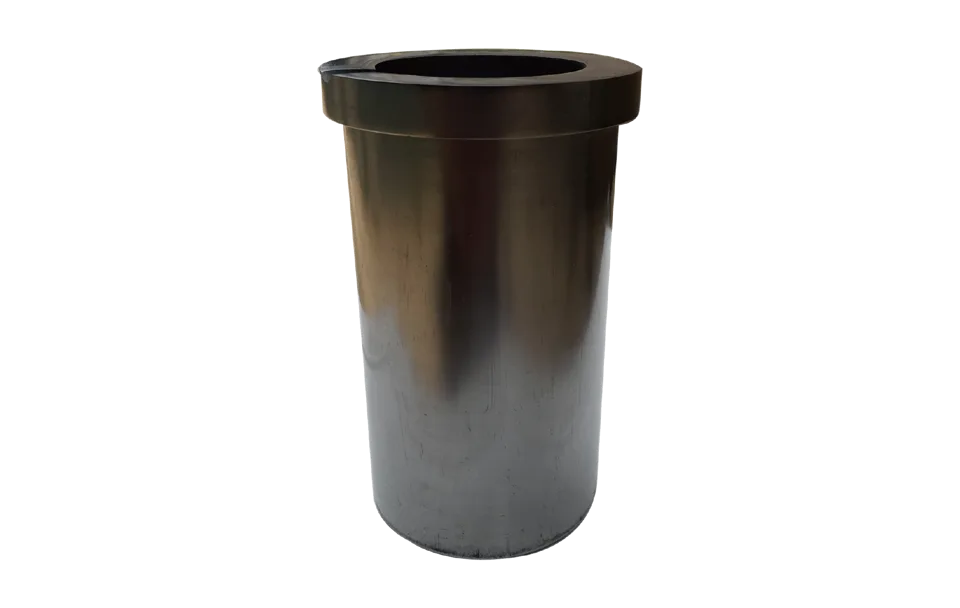

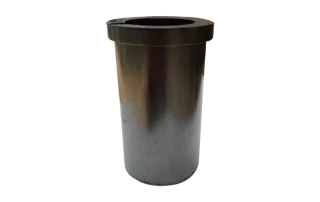

KYG Graphite Melting Crucible
Customization Available
Durable graphite crucible designed for efficient high-temperature metal melting, featuring low contamination and superior thermal shock resistance. Available in multiple capacities.
Configure enquiry
Select specification
Capacity: 1 kg
Parameter comparison
Variant parameter comparison
Compare 1 kg, 2.5 kg, 2 kg, and 3 kg.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected specification
1 kg
KYG1510-1-KG

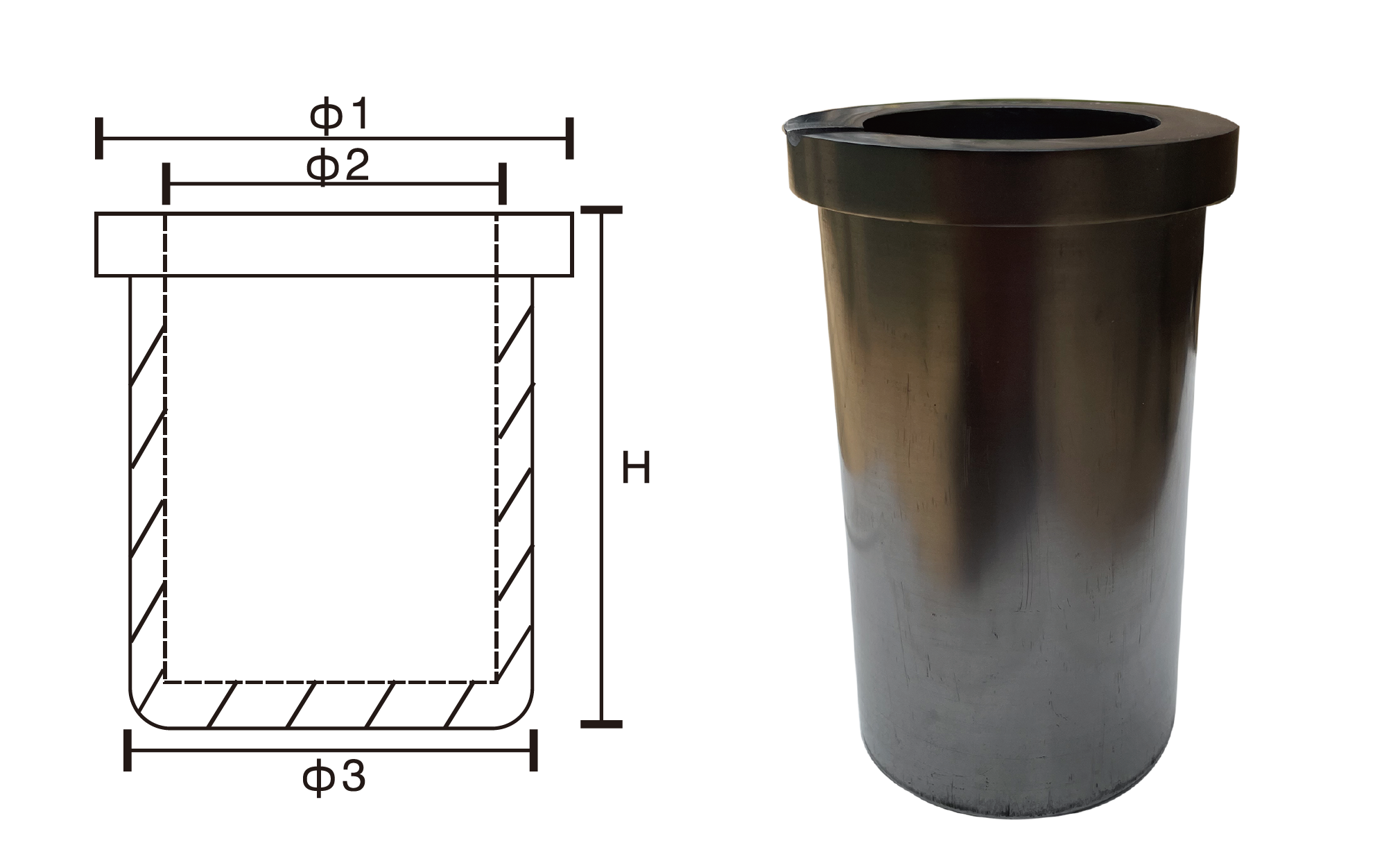

| Height | 88 mm |
|---|---|
| Body Diameter | 48 mm |
| Crucible Weight | 162 g |
| Opening Diameter | 35 mm |
| Top Flange Diameter | 58 mm |
Selected specification
2.5 kg
KYG1510-2.5-KG
| Height | 127 mm |
|---|---|
| Body Diameter | 58 mm |
| Crucible Weight | 290 g |
| Opening Diameter | 43 mm |
| Top Flange Diameter | 65 mm |
Selected specification
2 kg
KYG1510-2-KG
| Height | 110 mm |
|---|---|
| Body Diameter | 58 mm |
| Crucible Weight | 276 g |
| Opening Diameter | 43 mm |
| Top Flange Diameter | 65 mm |
Selected specification
3 kg
KYG1510-3-KG
| Height | 105 mm |
|---|---|
| Body Diameter | 76 mm |
| Crucible Weight | 411 g |
| Opening Diameter | 59 mm |
| Top Flange Diameter | 85 mm |
Selected specification
4 kg
KYG1510-4-KG
| Height | 137 mm |
|---|---|
| Body Diameter | 76 mm |
| Crucible Weight | 555 g |
| Opening Diameter | 59 mm |
| Top Flange Diameter | 85 mm |
Selected specification
5.5 kg
KYG1510-5.5-KG
| Height | 156 mm |
|---|---|
| Body Diameter | 92 mm |
| Crucible Weight | 920 g |
| Opening Diameter | 70 mm |
| Top Flange Diameter | 106 mm |
Selected specification
5 kg
KYG1510-5-KG
| Height | 137 mm |
|---|---|
| Body Diameter | 89 mm |
| Crucible Weight | 670 g |
| Opening Diameter | 64 mm |
| Top Flange Diameter | 100 mm |
Selected specification
6 kg
KYG1510-6-KG
| Height | 185 mm |
|---|---|
| Body Diameter | 100 mm |
| Crucible Weight | 1, 160 g |
| Opening Diameter | 78 mm |
| Top Flange Diameter | 115 mm |
Selected specification
8 kg
KYG1510-8-KG
| Height | 185 mm |
|---|---|
| Body Diameter | 110 mm |
| Crucible Weight | 1, 400 g |
| Opening Diameter | 86 mm |
| Top Flange Diameter | 120 mm |
Selected variant
1 kg
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
1 kg
Compare variant
2.5 kg
Body Diameter
DifferentSelected variant
Compare variant
Crucible Weight
DifferentSelected variant
Compare variant
Opening Diameter
DifferentSelected variant
Compare variant
Top Flange Diameter
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonCapacity | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Height | 88 mm | 127 mm | 110 mm | 105 mm | 137 mm | 156 mm | 137 mm | 185 mm | 185 mm |
| Body Diameter | 48 mm | 58 mm | 58 mm | 76 mm | 76 mm | 92 mm | 89 mm | 100 mm | 110 mm |
| Crucible Weight | 162 g | 290 g | 276 g | 411 g | 555 g | 920 g | 670 g | 1, 160 g | 1, 400 g |
| Opening Diameter | 35 mm | 43 mm | 43 mm | 59 mm | 59 mm | 70 mm | 64 mm | 78 mm | 86 mm |
| Top Flange Diameter | 58 mm | 65 mm | 65 mm | 85 mm | 85 mm | 106 mm | 100 mm | 115 mm | 120 mm |
Overview
Highlights
- Outstanding resistance to thermal shock for reliable repeat use
- Minimizes metal contamination during melting and pouring
Applications
- Ideal for melting metals in foundries and laboratories
- Suitable for precious metal refining and smelting processes
Overview
The KYG Graphite Melting Crucible is engineered for demanding foundry and laboratory conditions, delivering reliable performance in metal melting and refining operations. Its robust graphite construction offers exceptional resistance to thermal shock and minimizes contamination, ensuring suitability for repeated use. With multiple capacity options, it meets a broad range of industrial and research requirements.
Customization options are available on request. Scope can include branding, packaging, documentation, voltage or plug options, and selected configuration adjustments, depending on the model, order quantity, and project requirements.
