Melting & Casting
Induction Heating Machine
KYG0707

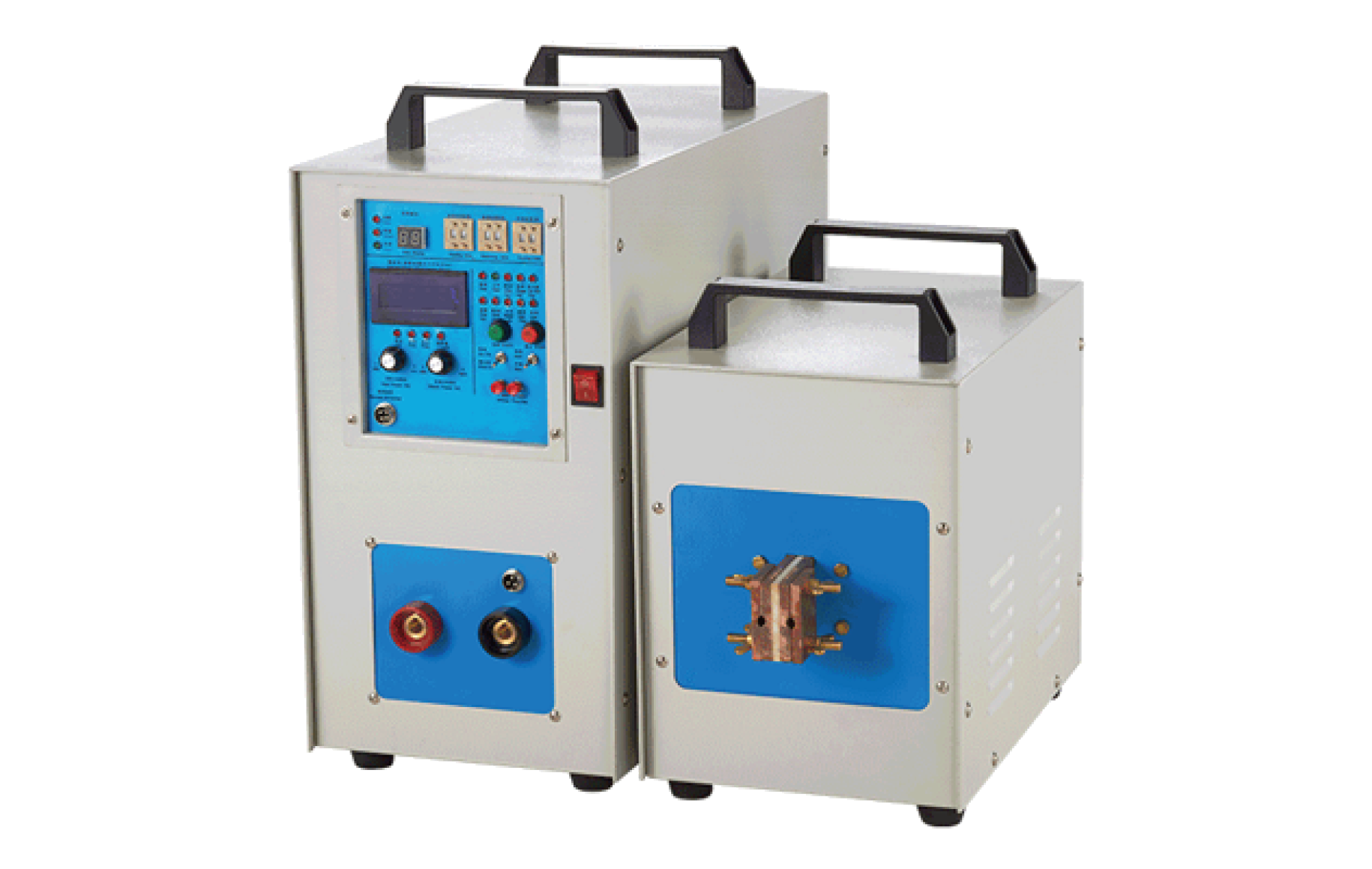

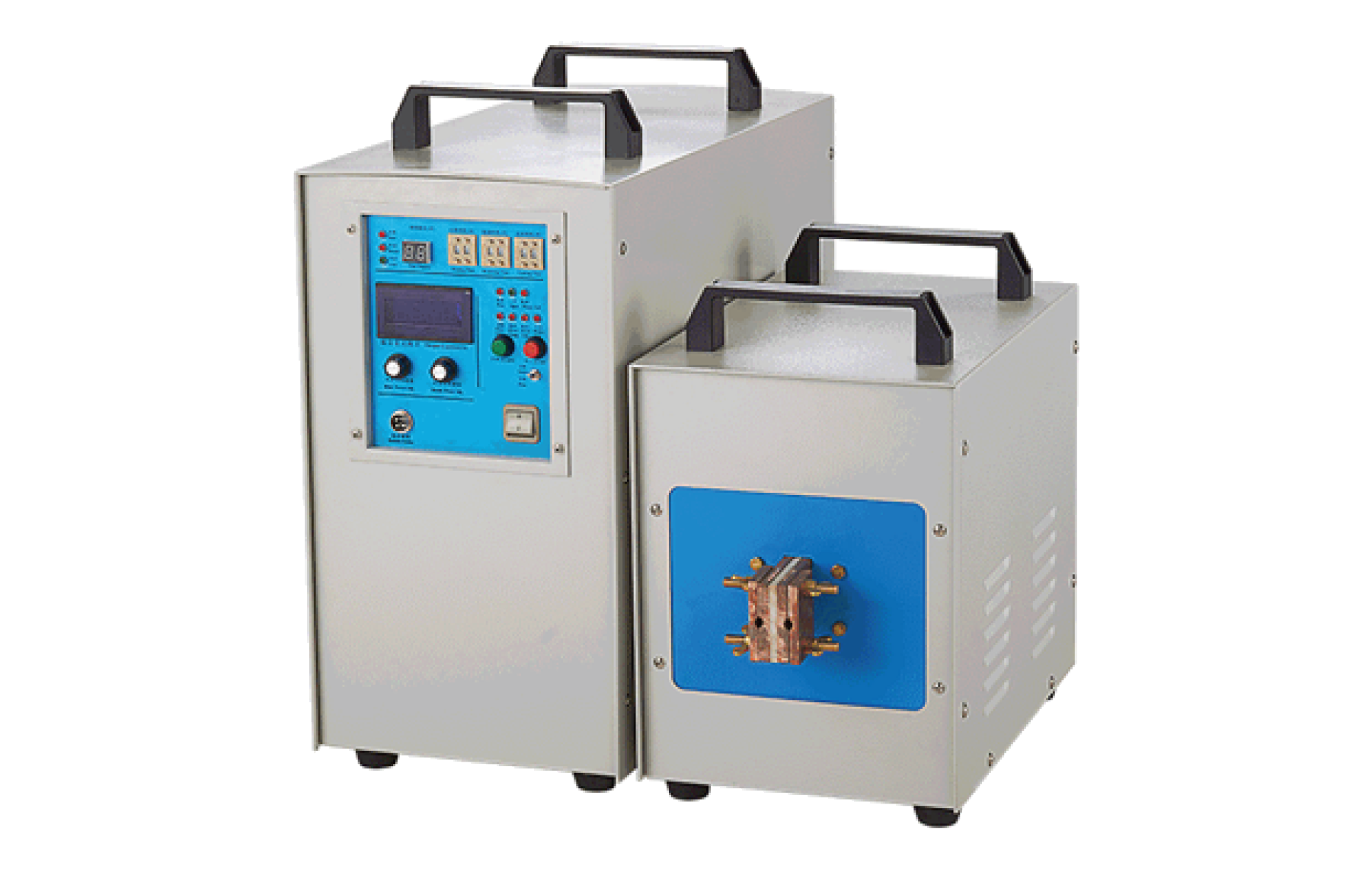

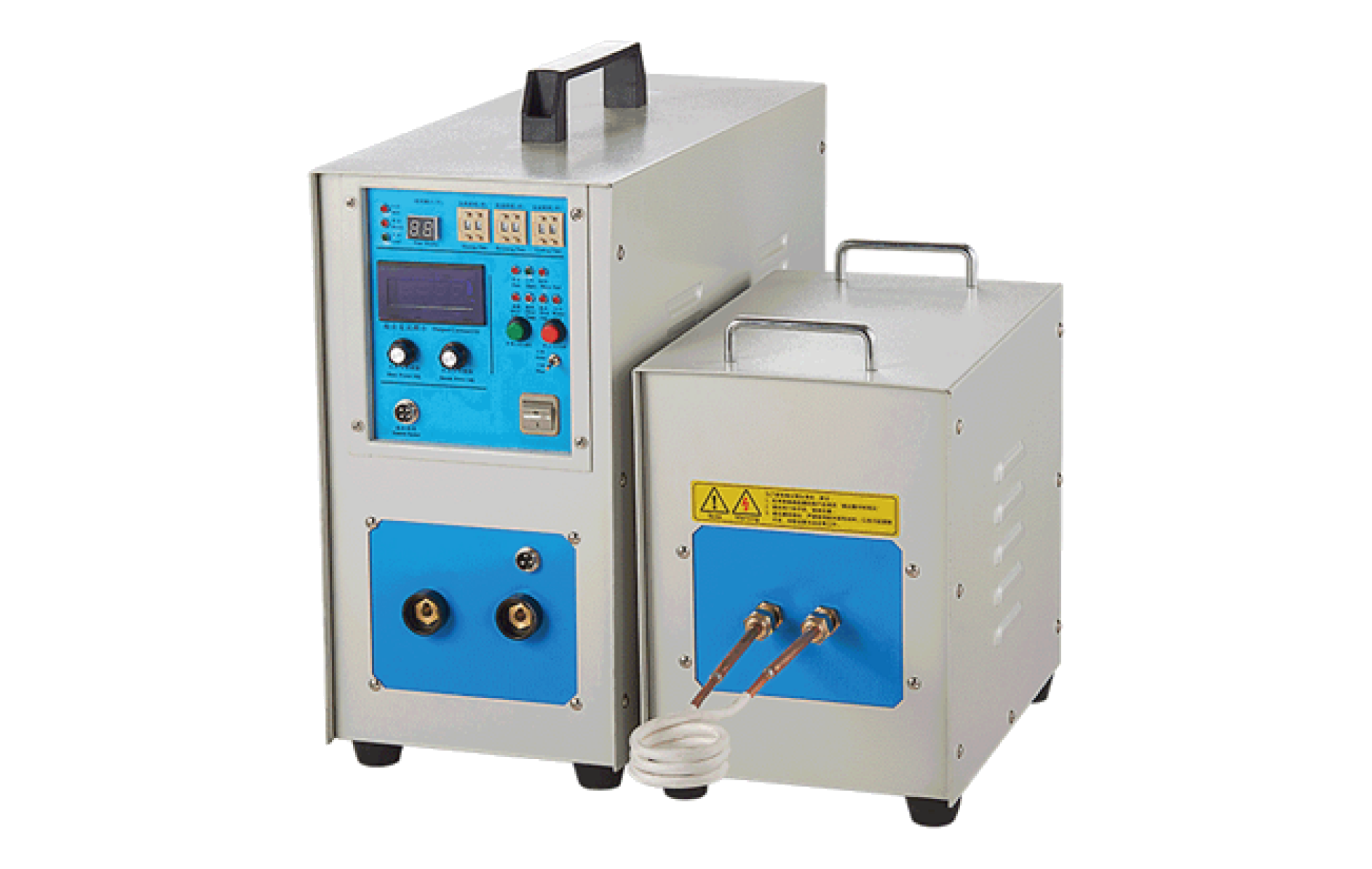

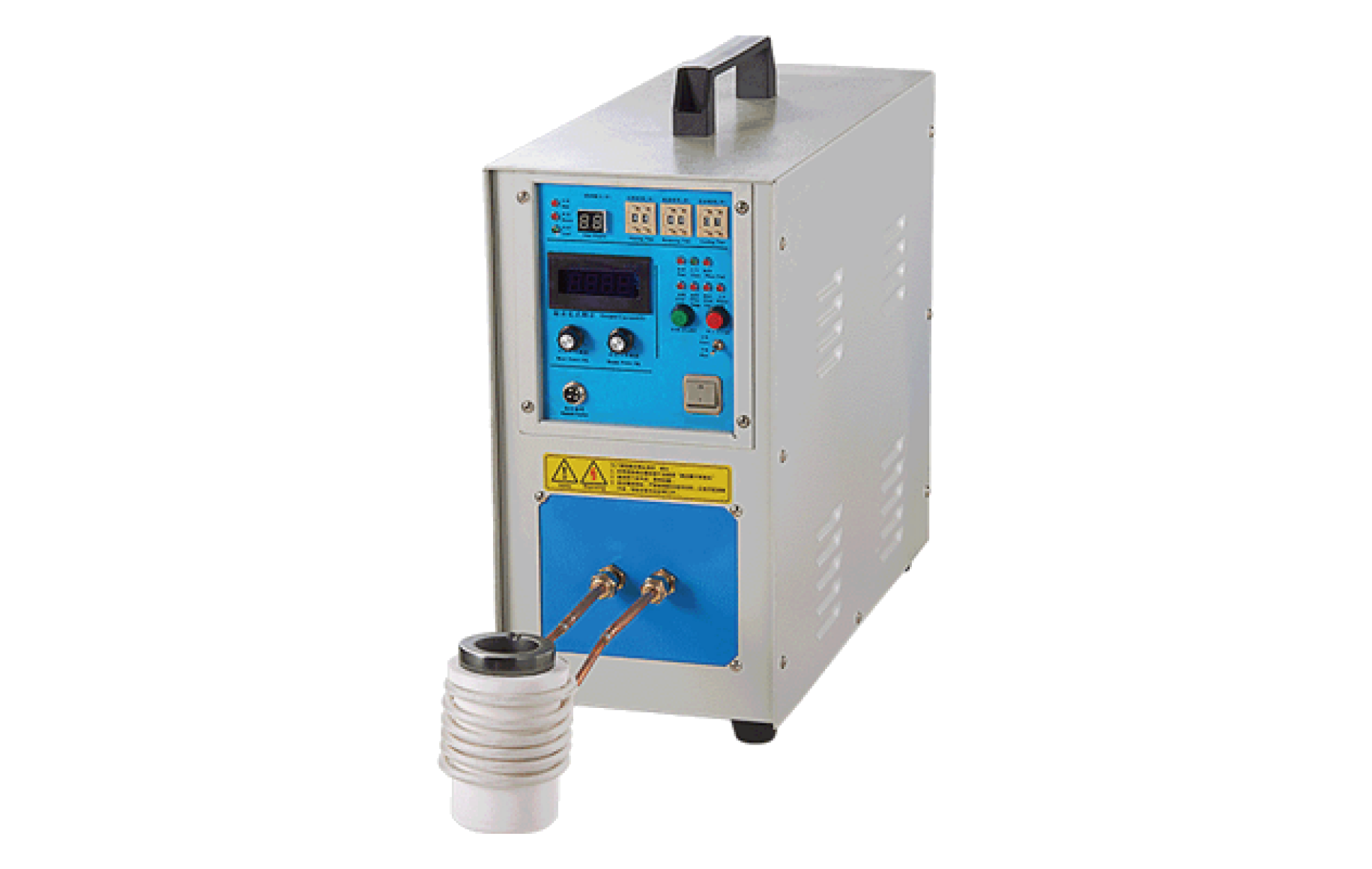

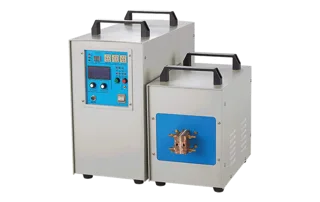

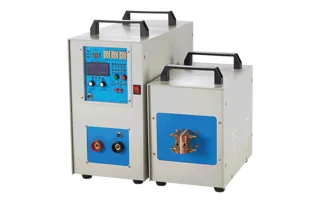

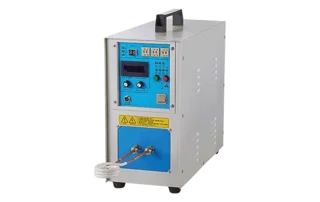

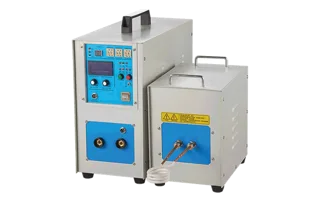

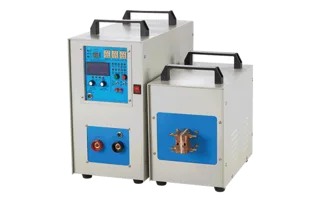

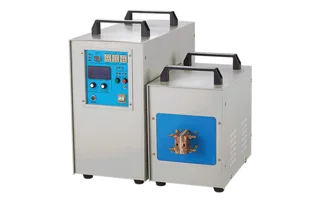

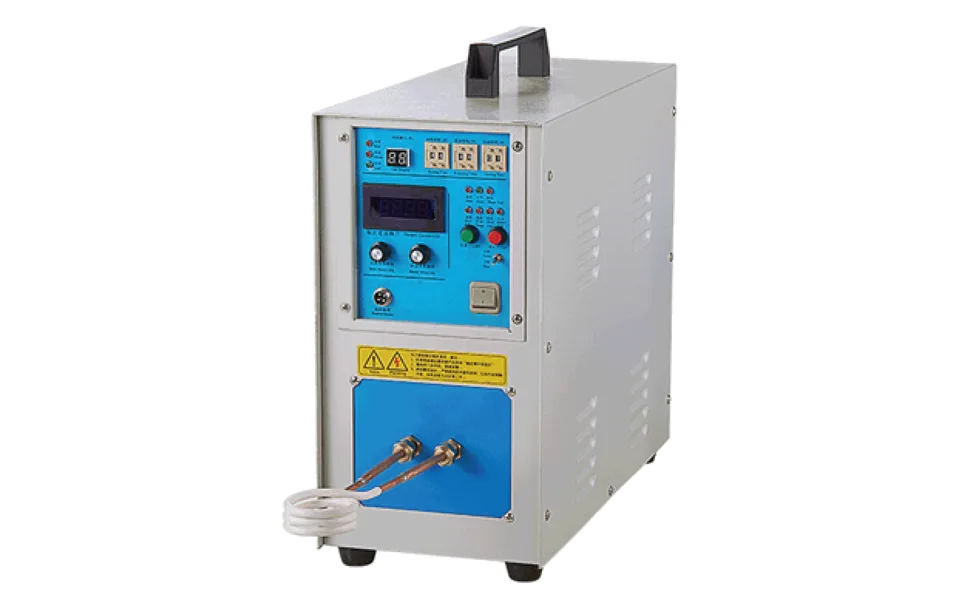

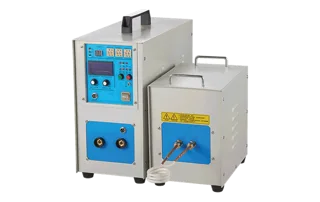

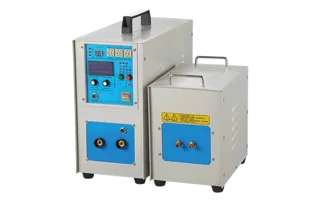

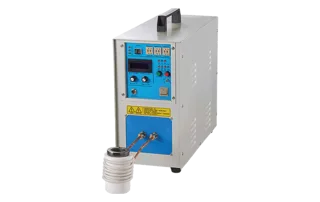

High-Frequency Induction Heating Machine
High-Frequency Induction Heating Machine for efficient 15–30kW industrial thermal processing and heat treatment.
Configure enquiry
Select model
Model: HDW-15A
Parameter comparison
Model parameter comparison
Compare HDW-15A, HDW-15AB, HDW-25A, and HDW-25AB.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected model
HDW-15A
KYG0707-HDW-15A
| Output Current | 200–600A |
|---|---|
| Output Power | 15KW |
| Power Supply | 单相220V 50/60HZ |
| Oscillation Frequency | 30–100KHz |
| Dimensions (Main) | 535*245*550 |
| Main Weight | 25KG |
Selected model
HDW-15AB
KYG0707-HDW-15AB
| Output Current | 200–600A |
|---|---|
| Output Power | 15KW |
| Power Supply | 三相380V 50/60HZ |
| Oscillation Frequency | 30–100KHz |
| Dimensions (Main) | 505*235*520 |
| Main Weight | 主:10KG/分:15KG |
Selected model
HDW-25A
KYG0707-HDW-25A
| Output Current | 200–1200A |
|---|---|
| Output Power | 25KW |
| Power Supply | 三相380V 50/60HZ |
| Oscillation Frequency | 30–100KHz |
| Dimensions (Main) | 535*245*550 |
| Main Weight | 30KG |
Selected model
HDW-25AB
KYG0707-HDW-25AB
| Output Current | 200–1200A |
|---|---|
| Output Power | 25KW |
| Power Supply | 三相380V 50/60HZ |
| Oscillation Frequency | 30–80KHz |
| Dimensions (Main) | 560*235*520 |
| Main Weight | 主:18.5KG/分:15KG |
Selected model
HDW-30AB
KYG0707-HDW-30AB
| Output Current | 400–1500A |
|---|---|
| Output Power | 30KW |
| Power Supply | 三相380V 50/60HZ |
| Oscillation Frequency | 30–80KHz |
| Dimensions (Main) | 595*275*580 |
| Main Weight | 主:35KG/分:10KG |
Selected model
HDW-35AB
KYG0707-HDW-35AB
| Output Current | 400–1600A |
|---|---|
| Output Power | 35KW |
| Power Supply | 三相380V 50/60HZ |
| Oscillation Frequency | 30–80KHz |
| Dimensions (Main) | 595*275*580 |
| Main Weight | 主:35KG/分:10KG |
Selected model
HDW-40AB
KYG0707-HDW-40AB
| Output Current | 400–1800A |
|---|---|
| Output Power | 40KW |
| Power Supply | 三相380V 50/60HZ |
| Oscillation Frequency | 30–80KHz |
| Dimensions (Main) | 595*275*580 |
| Main Weight | 主:35KG/分:10KG |
Selected model
HDW-60AB
KYG0707-HDW-60AB
| Output Current | 400–2400A |
|---|---|
| Output Power | 60KW |
| Power Supply | 三相380V 50/60HZ |
| Oscillation Frequency | 30–80KHz |
| Dimensions (Main) | 650*320*590 |
| Main Weight | 主:37KG/分:39KG |
Selected model
HDW-80AB
KYG0707-HDW-80AB
| Output Current | 400–3200A |
|---|---|
| Output Power | 80KW |
| Power Supply | 三相380V 50/60HZ |
| Oscillation Frequency | 30–80KHz |
| Dimensions (Main) | 745*345*600 |
| Main Weight | 主:54KG/分:47KG |
Selected variant
HDW-15A
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
HDW-15A
Compare variant
HDW-15AB
Output Power
DifferentSelected variant
Compare variant
Power Supply
DifferentSelected variant
Compare variant
Oscillation Frequency
DifferentSelected variant
Compare variant
Dimensions (Main)
DifferentSelected variant
Compare variant
Main Weight
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonModel | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Output Current | 200–600A | 200–600A | 200–1200A | 200–1200A | 400–1500A | 400–1600A | 400–1800A | 400–2400A | 400–3200A |
| Output Power | 15KW | 15KW | 25KW | 25KW | 30KW | 35KW | 40KW | 60KW | 80KW |
| Power Supply | 单相220V 50/60HZ | 三相380V 50/60HZ | 三相380V 50/60HZ | 三相380V 50/60HZ | 三相380V 50/60HZ | 三相380V 50/60HZ | 三相380V 50/60HZ | 三相380V 50/60HZ | 三相380V 50/60HZ |
| Oscillation Frequency | 30–100KHz | 30–100KHz | 30–100KHz | 30–80KHz | 30–80KHz | 30–80KHz | 30–80KHz | 30–80KHz | 30–80KHz |
| Dimensions (Main) | 535*245*550 | 505*235*520 | 535*245*550 | 560*235*520 | 595*275*580 | 595*275*580 | 595*275*580 | 650*320*590 | 745*345*600 |
| Main Weight | 25KG | 主:10KG/分:15KG | 30KG | 主:18.5KG/分:15KG | 主:35KG/分:10KG | 主:35KG/分:10KG | 主:35KG/分:10KG | 主:37KG/分:39KG | 主:54KG/分:47KG |
Specifications
| Timing Settings | 1–99S |
|---|---|
| Water Temperature Protection | 40°C |
Overview
Highlights
- Rapid, uniform heating minimizes cycle times and boosts productivity
- Configurable output power adapts to a wide range of heating tasks
- Reliable cooling and sturdy build for long-term industrial use
Applications
- Metal forging workshops
- Manufacturing with continuous or batch heating needs
- Heat treatment production lines
Overview
The High-Frequency Induction Heating Machine delivers reliable, high-frequency heating for demanding industrial processes. Suitable for tasks such as metal forging, heat treatment, annealing, and surface hardening, these modular units are available from 15kW to 30kW, supporting both precision and flexibility. Fast heat-up times and energy-efficient operation help streamline manufacturing workflows while ensuring consistent quality.
Engineered for industrial environments, these heaters feature easy-to-integrate designs with robust enclosures, advanced cooling, and precise control. The modularity allows users to match power output to specific application requirements, making them versatile across production lines and repair shops.
Typical uses
- Metal forging and brazing
- Surface hardening and quenching
- Annealing and bonding
