Melting & Casting
Vacuum Centrifugal Casting Machine
KYG1719

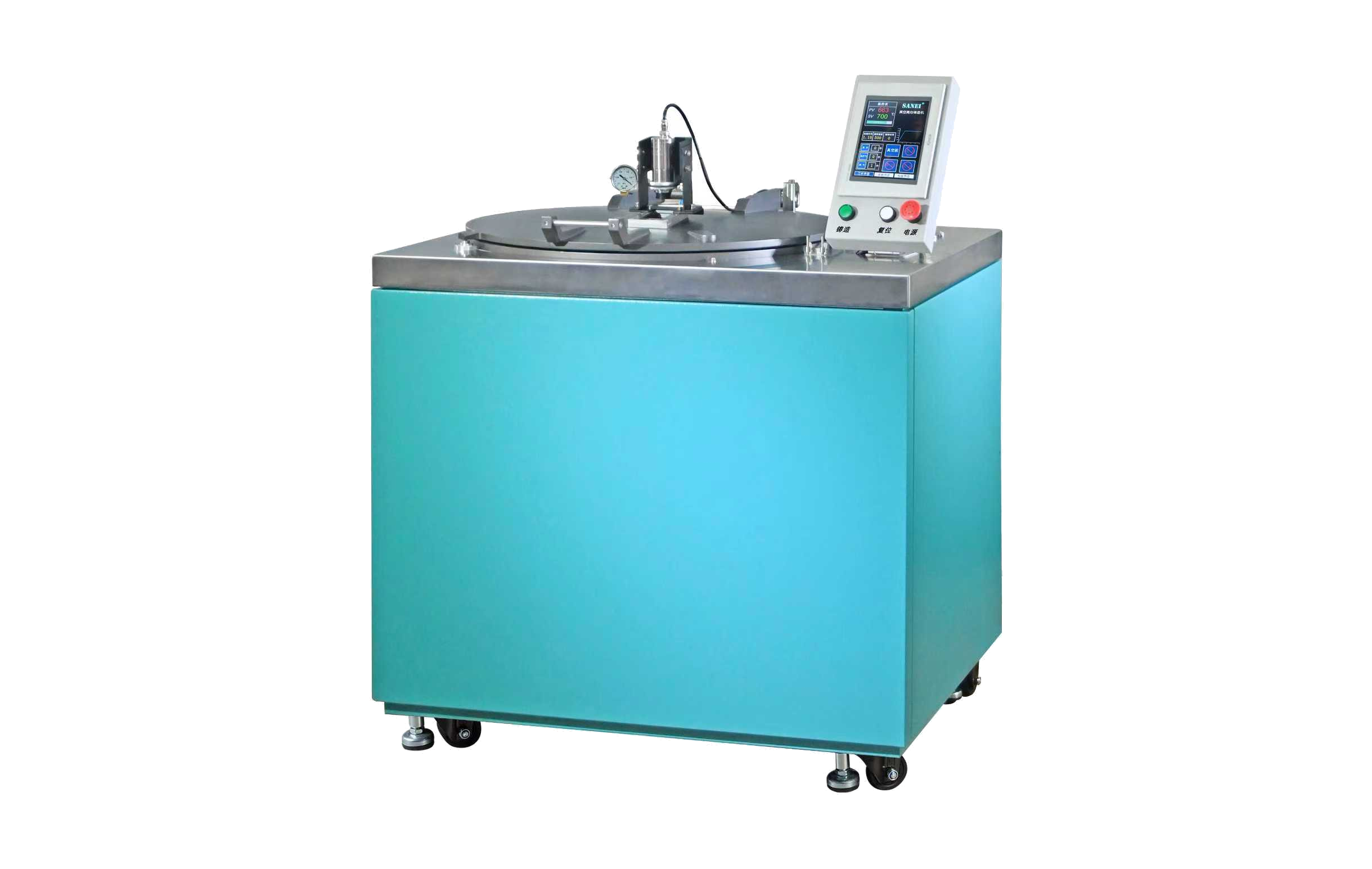

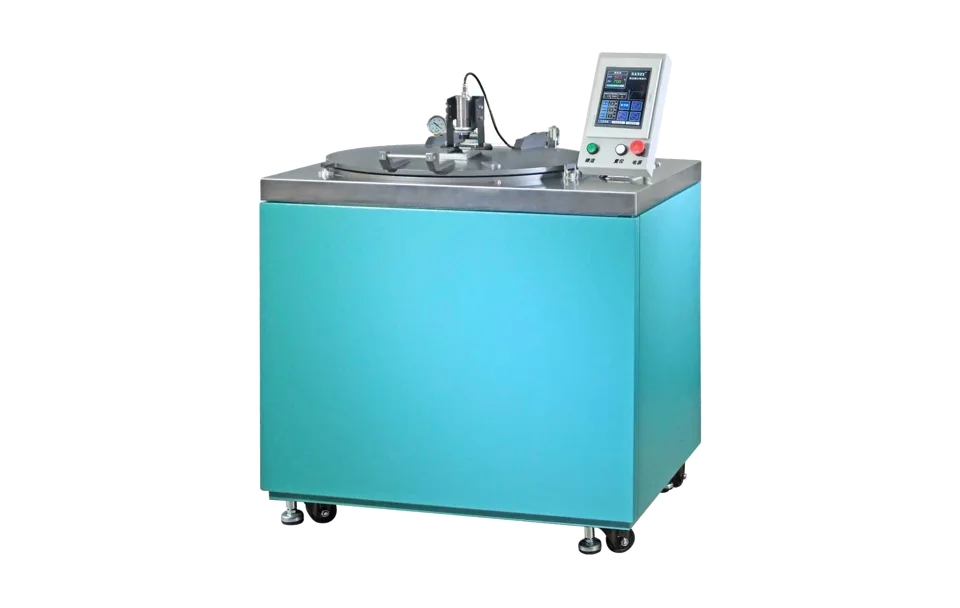

SANEI Platinum Vacuum Centrifugal Casting Machine
High-powered vacuum centrifugal casting machine for platinum and similar metals, featuring advanced temperature control and quartz crucible.
Melting & Casting
Specifications
| Power Supply | 3-phase, 380 V ±10%, 50/60 Hz, Max. 8 kVA |
|---|---|
| Output Capacity | Max. 8–10 kVA |
| Weight | 268 kg |
| Dimensions | L 1020 × W 805 × H 1070 mm |
| Maximum Casting Flask Size | Ø5 × L6 in |
| Crucible | Quartz crucible |
| Melting Materials | Platinum, palladium, etc. (iridium, ruthenium) |
| Melting Capacity | 50–500 g |
| Temperature Measurement Range | 700–2600 ℃ |
| Temperature Measurement Method | Infrared |
| Vacuum Range | 0–600 mmHg |
| Protective Gas | Argon, nitrogen |
| Cooling Method | Water cooling (≥3 L/min) |
| Casting Method | Centrifugal casting |
| Water Chiller | ≥3 HP |
| Vacuum Pump | Zhongde V0063D |
Overview
Highlights
- Up to 8–10 KVA output for heavy-duty casting
- Melts platinum and similar metals up to 500g per batch
- Advanced infrared temperature measurement (700–2600℃)
- Supports both nitrogen and argon protective gas
- Water-cooled design for stable operation
Applications
- Platinum jewelry casting
- Casting for high-melting-point precious metals
- Specialty alloy component manufacturing
- Dental alloy casting
- Laboratory metal casting research
Overview
The SANEI Platinum Vacuum Centrifugal Casting Machine is designed for efficient and precise casting of platinum and other high-melting-point metals. With robust power output and a comprehensive temperature range, it utilizes a quartz crucible, advanced vacuum technology, and supports protective gas atmospheres. Its compact footprint and water-cooling system ensure reliable operation for industrial jewelry and specialty alloy casting needs.
Package contents
- Main casting machine unit
- Quartz crucible
- Instruction manual
Frequently asked questions
Q
What materials can be melted with this machine?
A
It is suitable for platinum, palladium, and similar high-melting-point metals.
Q
What is the maximum batch melting capacity?
A
Up to 500g per batch for platinum.
Q
Which gases can be used as protective atmospheres?
A
Both nitrogen and argon can be used as protective gases.
Important notes
- Requires three-phase 380V±10% power supply.
- Ensure cooling water supply of at least 3L/min.
- Use specified vacuum pump model for optimal performance.
