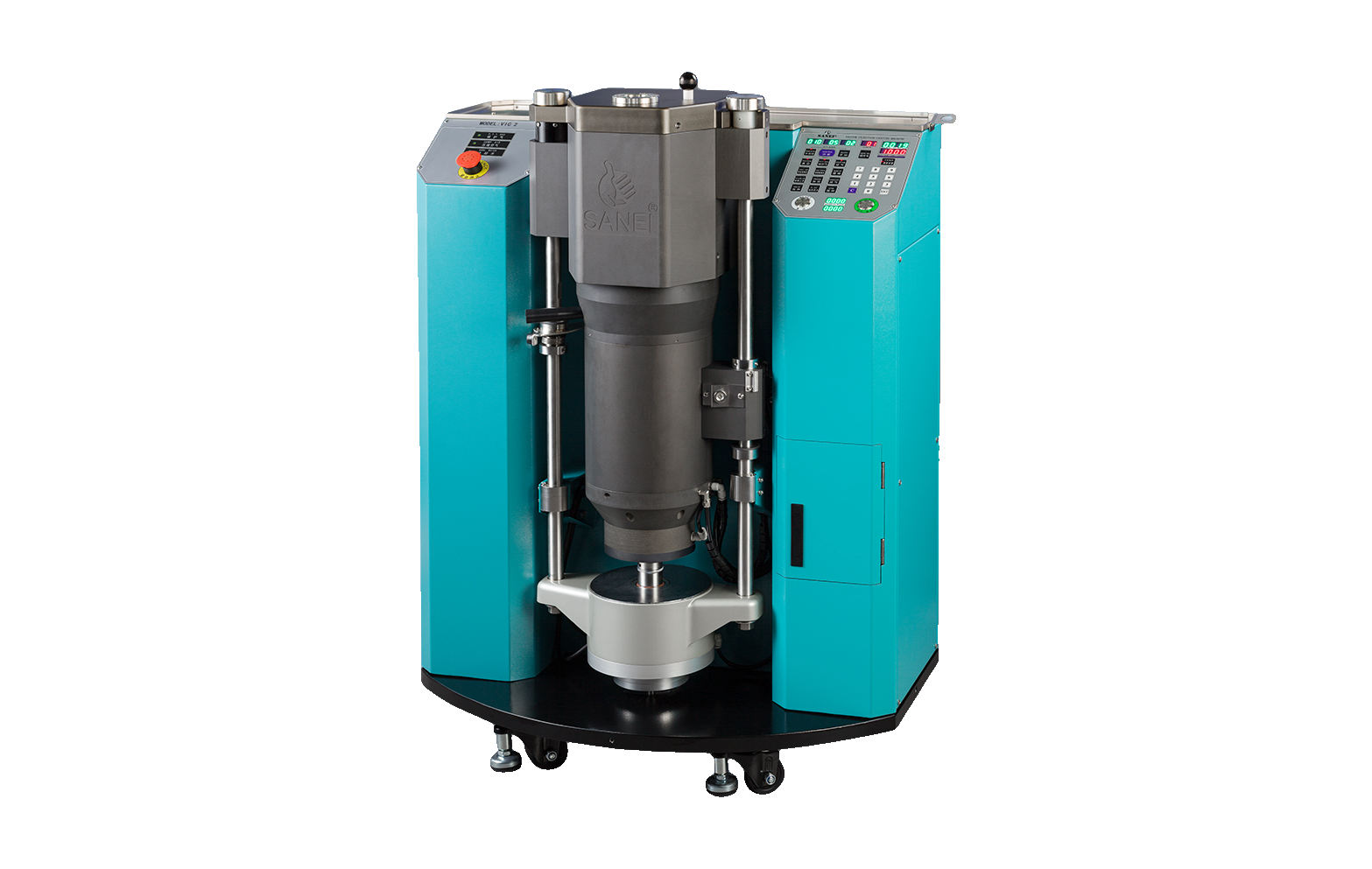

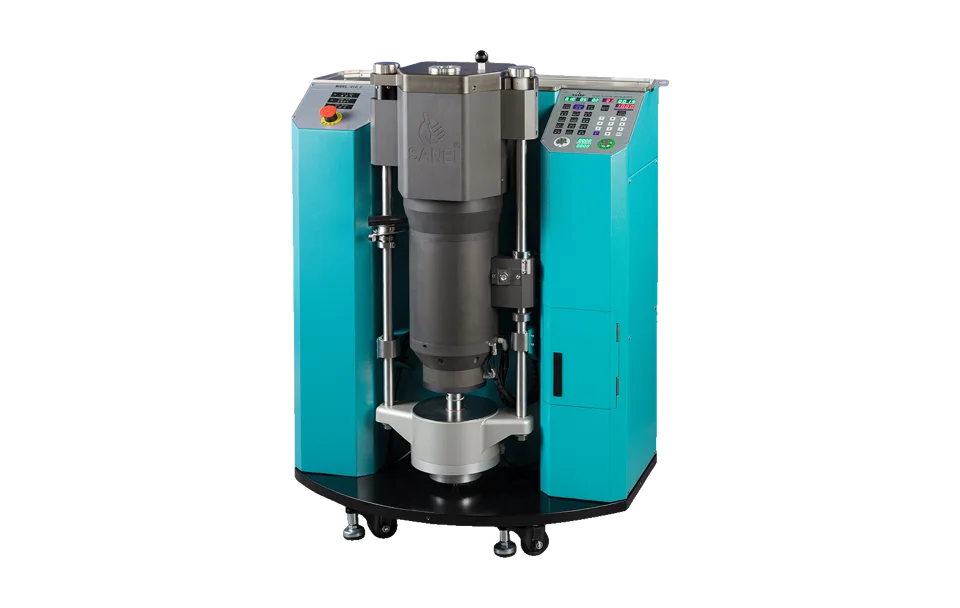

SANEI VIC-2 Automatic Vacuum Pressure Casting Machine
SANEI · VIC-2
Automatic vacuum pressure casting machine for precious metals, featuring precision temperature control, program memory, and ultra-low material loss.
Melting & Casting
Specifications
| Power Supply | 3-phase, 380 V ± 10%, 50/60 Hz |
|---|---|
| Power Input | Approx. 15 kVA |
| Maximum Output Power | 15 kW |
| Weight | Approx. 186 kg |
| Dimensions | W 470 × L 800 × H 1130 mm |
| Maximum Casting Flask Sizes | Ø127 × 254 mm (5 × 10 in); Max. 5 × 12 in |
| Crucible | Dedicated crucible |
| Crucible Size | Ø78 × 115 mm |
| Melting Materials | Gold alloys, silver alloys |
| Melting Capacity | Approx. 240 cc |
| Temperature Range | Standard: up to 1200 ℃; Optional: 1450 ℃ |
| Temperature Sensor | K-type thermocouple, 1200 ℃ standard; R-type thermocouple, 1450 ℃ optional |
| Maximum Pressurizing Pressure | 0.3 MPa |
| Protective Gas | Inert gas (nitrogen or argon) |
| Casting Program Memory | 50 programs |
| Cooling Method | Direct-flow water cooling |
| Casting Method | Vacuum-assisted pressure casting |
| Fault Alarm | Self-diagnostic fault display |
| Ambient Temperature | 5–30 ℃ |
| Ambient Humidity | ≤80% RH |
| Water Chiller | 2 HP |
| Vacuum System | Optional |
| Vacuum Pump Option 1 | Busch RA0040, Germany |
| Vacuum Pump Option 2 | Zhongde V0040D, Shanghai |
Overview
Highlights
- Powerful low-frequency stirring enables casting without opening the feed.
- Precise temperature control and excellent air tightness for oxidation protection.
- Adjustable pressurization up to 3kg; pressure speed is freely adjustable.
- Parts per thousand ultra-low material loss rate.
- Three-stage adjustable power switching from 6kW to 15kW.
Applications
- Casting of precious metal alloys (gold, silver) in jewelry manufacturing.
- Small batch precision casting applications.
- Workshops requiring oxidation-resistant, high-quality castings.
Overview
The SANEI VIC-2 Automatic Vacuum Pressure Casting Machine is engineered for precision casting of precious metal alloys such as gold and silver. Its robust low-frequency stirring system allows for casting without opening the feed, minimizing contamination. With tight air sealing and advanced anti-oxidation protection, the unit ensures reliable results. User-friendly features include adjustable pressurization up to 0.3MPa, a memory for 50 casting programs, and a self-diagnosis alarm system. Efficient operation is supported by a triple-range power setting and flexible inert gas usage, making it suitable for demanding workshops.
Package contents
- SANEI VIC-2 automatic vacuum pressure casting machine
- User manual
Frequently asked questions
Q
What is the maximum temperature the machine can reach?
A
Standard up to 1200°C, with an optional upgrade to 1450°C.
Q
Which gases are supported for casting?
A
Inert gases such as argon and nitrogen are supported.
Q
How many casting programs can be stored?
A
Up to 50 casting programs can be stored for quick recall.
Q
What is the warranty period?
A
Two years for the entire machine, and three years for the heating power supply.
Important notes
- Requires inert gas supply (argon or nitrogen) for operation.
- Special crucible is required for operation.
