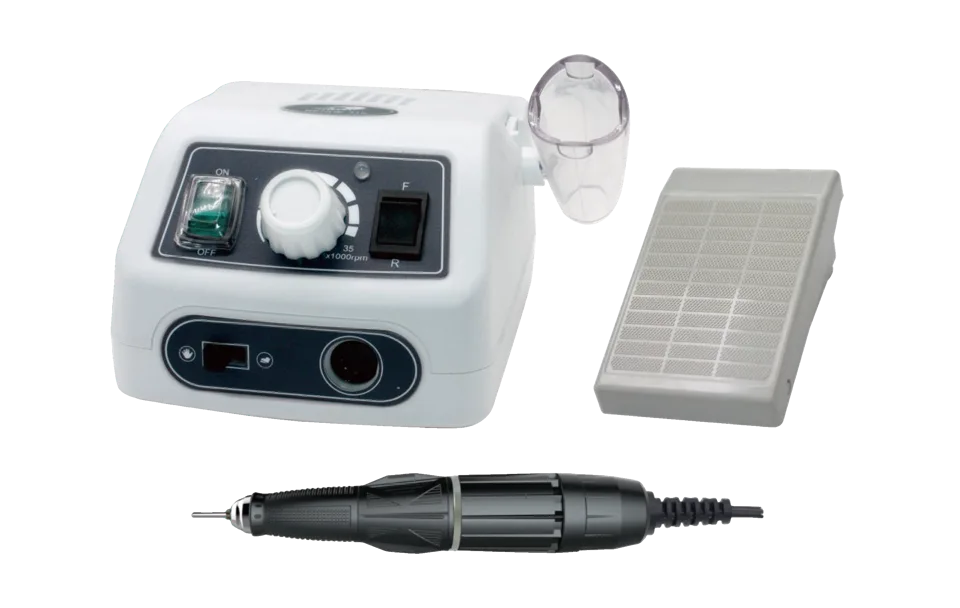

RHJC Renhe 315 High Speed Brushed Micromotor
RHJC · Renhe 315
The RHJC Renhe 315 High Speed Brushed Micromotor offers up to 35,000 RPM, 70W output, and overload protection with flexible control options, ideal for high-precision grinding and finishing tasks.
Finishing & Polishing
Specifications
| Max Speed | 35, 000 rpm |
|---|---|
| Output Voltage | 0 ~ 33 V |
| Output Power | 70 W |
| Maximum Torque | 3.0 N·cm |
| Pedal Control | Standard ON/OFF pedal; hand/pedal control optional; speed pedal control optional |
| Function Modes | Forward/reverse, overload protection, emergency stop, ON/OFF foot pedal |
| Collet Chuck Standard | Ø2.35 mm (optional Ø3.0 mm, Ø3.175 mm) |
| Handpiece Dimensions | L151 × D19 × H29 mm |
| Controller Dimensions | W116 × H74 × D187 mm |
| Specification | one set / carton (12 sets) |
| Sizes | 25*21*9cm / 53*47*33cm (12 sets) |
| Weight | 2kg / 25.5kg (12 sets) |
Overview
Highlights
- High-precision micromotor with 35,000 RPM max speed for demanding detail work.
- Multiple safety features including overload protection and emergency stop.
- Flexible operation with standard ON/OFF pedal and optional hand/pedal controls.
Applications
- Jewelry grinding and polishing in workshops.
- Dental laboratory fine finishing and shaping.
- Model making and micro-engineering repairs requiring precise speed control.
Overview
The RHJC Renhe 315 High Speed Brushed Micromotor is engineered for precision grinding, polishing, and shaping where high rotational speed and reliability are essential. With a 35,000 RPM maximum speed and robust 70W power output, it delivers consistent torque and efficiency for technical, dental, and jewelry applications. Built-in overload protection, emergency stop, and reversible motor direction enhance safety and versatility for complex procedures.
Users benefit from adaptable operation through a standard ON/OFF pedal, with optional hand or speed pedal controls to suit different workflows. Multiple collet options—standard Ø2. 35 mm, with Ø3. 0 mm and Ø3. 175 mm alternatives—expand tool compatibility. The compact, ergonomic design meets the demands of both workshop and on-site environments, ensuring comfort and stable performance for detailed tasks.
