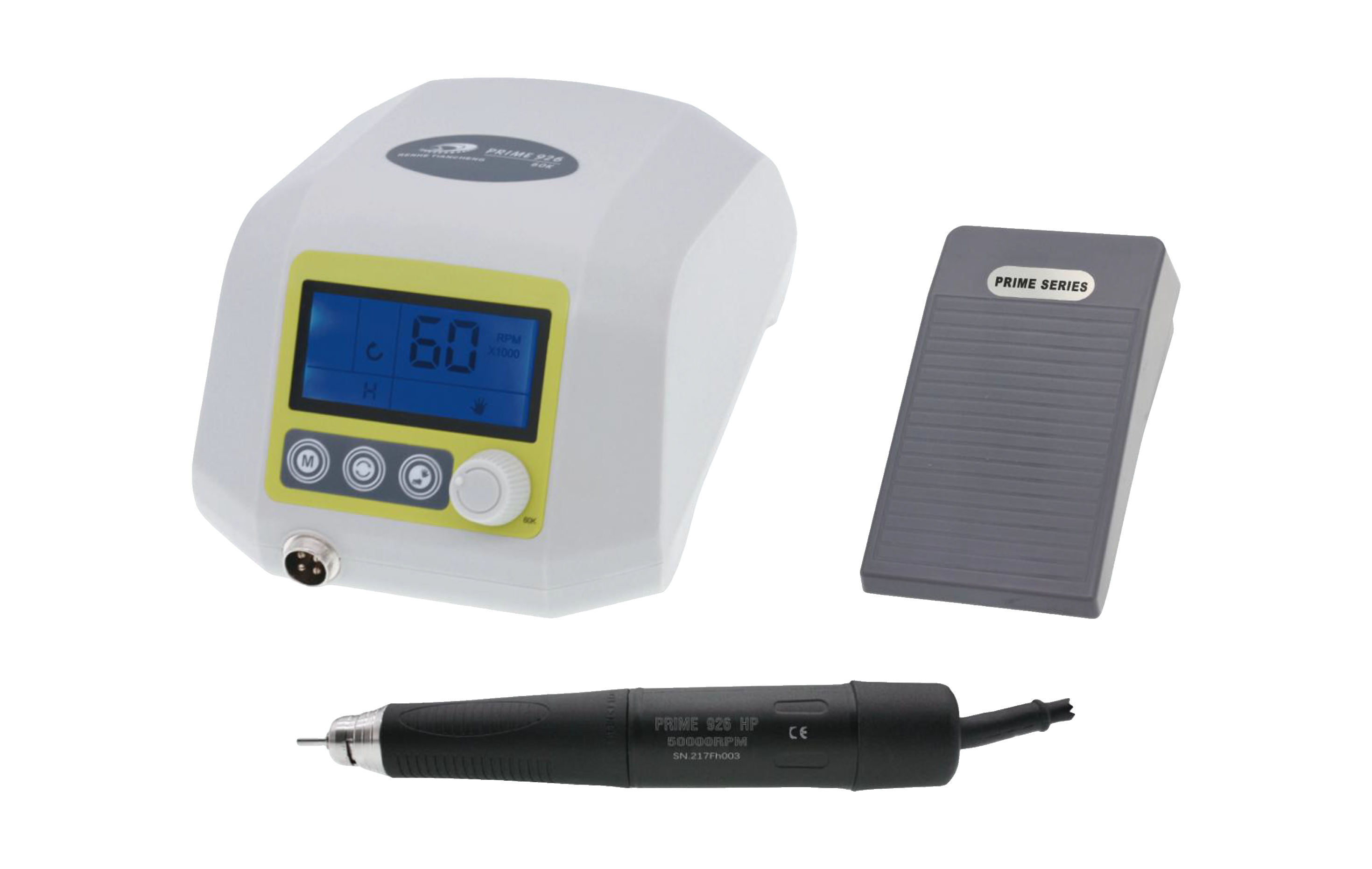

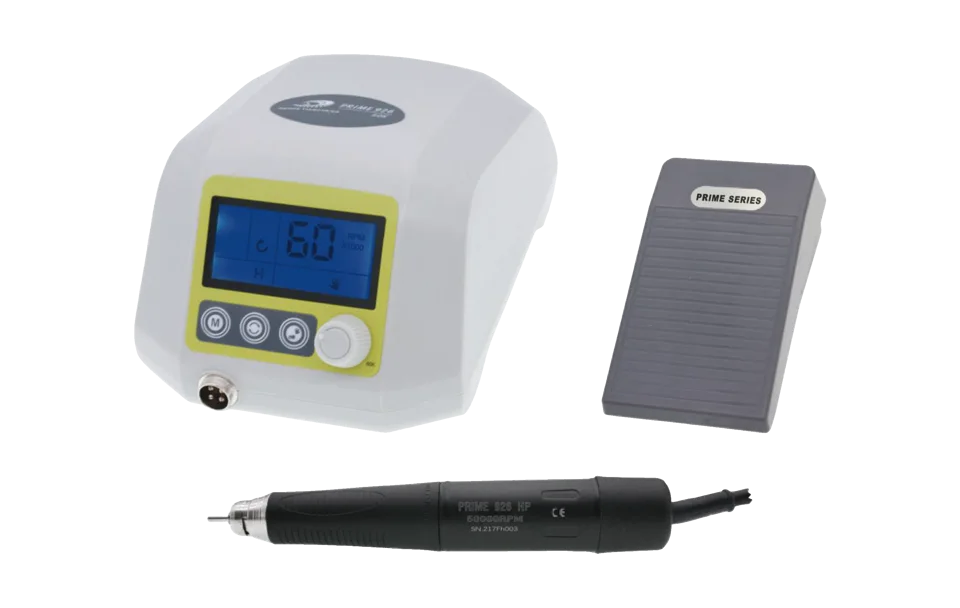

RHJC Prime 926 High Speed Brushless Micromotor
RHJC · Prime 926
RHJC Prime 926 High Speed Brushless Micromotor delivers up to 60,000 RPM, stepless hand/foot control, LCD display, and reliable overload protection for precision tasks.
Finishing & Polishing
Specifications
| Output Power | 250 W |
|---|---|
| Maximum Speed | 60, 000 rpm |
| Maximum Torque | 9.2 N·cm |
| Output Voltage | 0 – 36 V |
| Speed Modes | Low/High selectable (40K/60K RPM) |
| Rotation | Forward/Reverse |
| Display | Large LCD (liquid crystal display) |
| Control Mode | Hand and pedal stepless speed control, pedal constant speed function |
| Overload Protection | Yes (automatic) |
| Fault Prompt | Yes |
| Main Unit Size | 155 × 240 × 110 mm |
| Handpiece Size | 167 × 20 × 28 mm |
| Packaged Size | 302 × 260 × 140 mm |
| Weight | 4.5 kg (net), 28.5 kg (carton, 6 sets) |
Overview
Highlights
- Brushless motor technology for extended life and reduced maintenance needs.
- Stepless speed adjustment via hand or foot pedal for responsive, precise control.
- Large LCD and integrated overload protection ensure user safety and machine reliability.
Applications
- Polishing and finishing jewelry and watch components with high precision.
- Dental labs for smoothing and precise adjustment of dental appliances.
- Micro-drilling, deburring, and delicate finishing in laboratory or industrial environments.
Overview
The RHJC Prime 926 High Speed Brushless Micromotor combines advanced brushless technology with robust 250W power to support precise grinding and polishing tasks. Featuring stepless hand and foot-operated speed control, this micromotor reaches speeds up to 60,000 RPM and delivers high torque for consistent, accurate performance in demanding applications.
Its easy-to-read LCD display provides real-time speed and operation status, while integrated overload protection and fault prompts enhance user safety and equipment reliability. The Prime 926 provides both forward and reverse rotation options, making it versatile for dental work, fine jewelry finishing, and precision industrial use.
