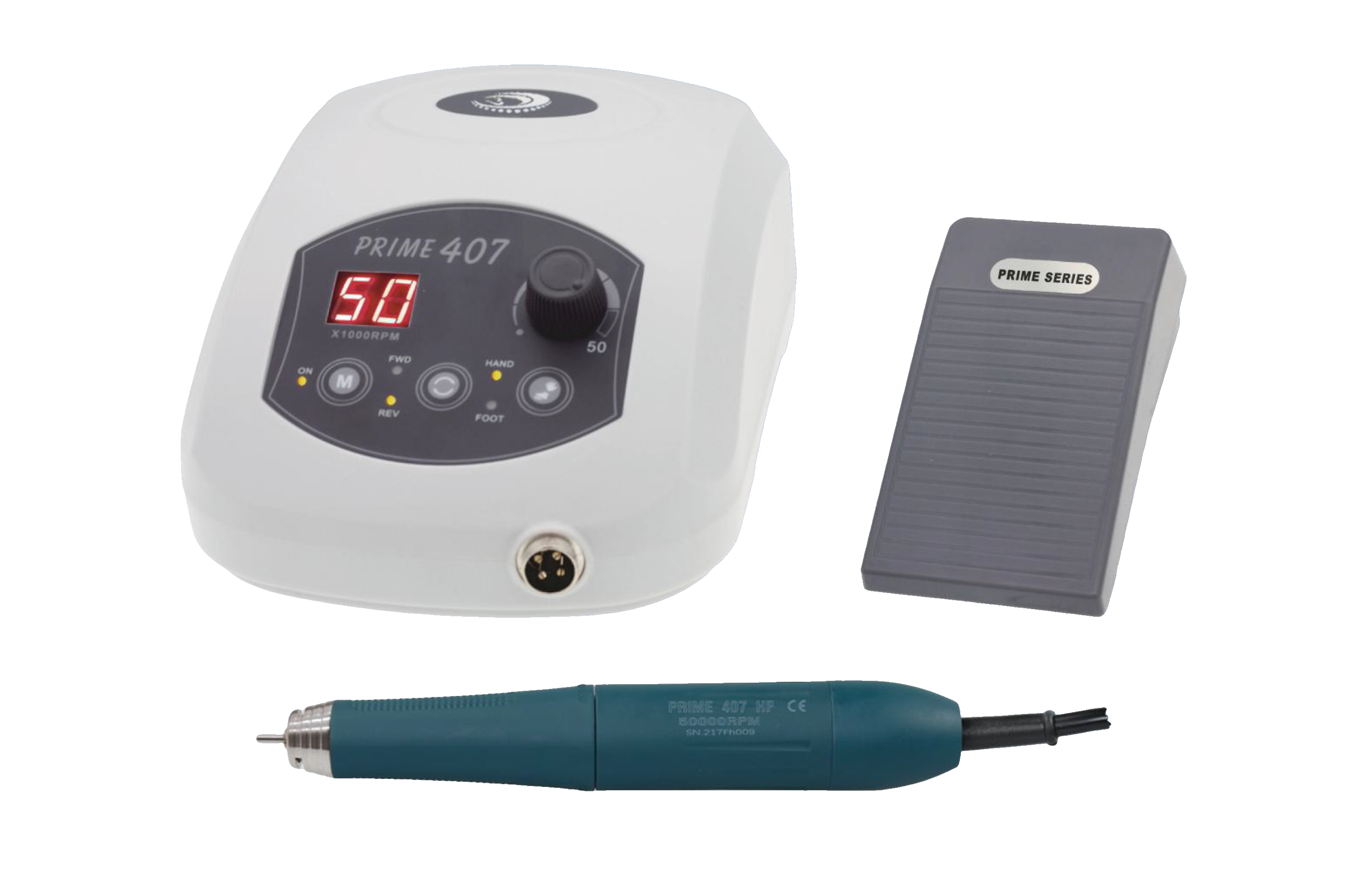

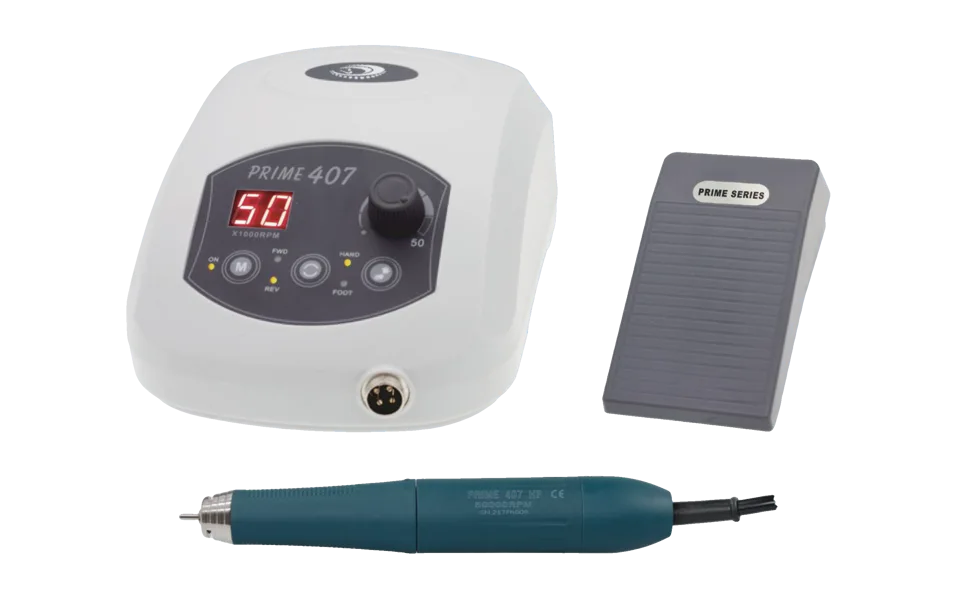

RHJC Prime 407 High Speed Brushless Micromotor
RHJC · Prime 407
RHJC Prime 407 High Speed Brushless Micromotor delivers up to 50,000 rpm with precise hand and pedal speed control, forward/reverse, and full overload protection for demanding precision work.
Finishing & Polishing
Specifications
| Motor Type | Brushless |
|---|---|
| Maximum Speed | 50000 rpm |
| Output Power | 230 W |
| Maximum Torque | 8.0N·cm |
| Output Voltage | 0–36 V |
| Control Mode | Hand/pedal speed control |
| Direction | Forward/reverse |
| Overload Protection | Yes |
| Fault Prompt Function | Yes |
| Pedal Constant Speed Function | Yes |
| Handpiece Size | 162 mm (L) x 20 mm (D) x 28 mm (H) |
| Control Unit Size | 210 mm (L) x 160 mm (W) x 100 mm (H) |
| Set Packing Size | 300 mm x 260 mm x 140 mm |
| Set Weight | 4.3 kg |
| Carton Box Size (6 Sets) | 560 mm x 350 mm x 460 mm |
| Gross Weight (6 Sets) | 27 kg |
Overview
Highlights
- Maintenance-free brushless motor extends overall service life.
- Hand and pedal dual control enables seamless speed adjustment for precision work.
- Forward/reverse, overload and fault protection functions enhance operational safety.
Applications
- High-precision polishing and finishing in dental laboratories.
- De-burring and fine detailing for jewelry and watch pieces.
- Surface preparation and micro-manufacturing in small workshops.
Overview
The RHJC Prime 407 High Speed Brushless Micromotor is engineered for precise, continuous operation in professional settings. Its brushless 230W motor provides powerful, maintenance-free performance and supports stepless speed adjustment up to 50,000 rpm, controlled via both hand and foot pedal options. Forward and reverse rotation, comprehensive overload, and fault protection features boost operational safety and reliability for extended use.
Featuring a compact yet robust construction, the Prime 407 excels in delivering stable torque and high precision for meticulous applications such as dental lab processing, jewelry finishing, and other detailed manufacturing tasks. An intuitive digital speed display and pedal constant speed function further enhance user control and efficiency in high-demand environments.
