KYG0651

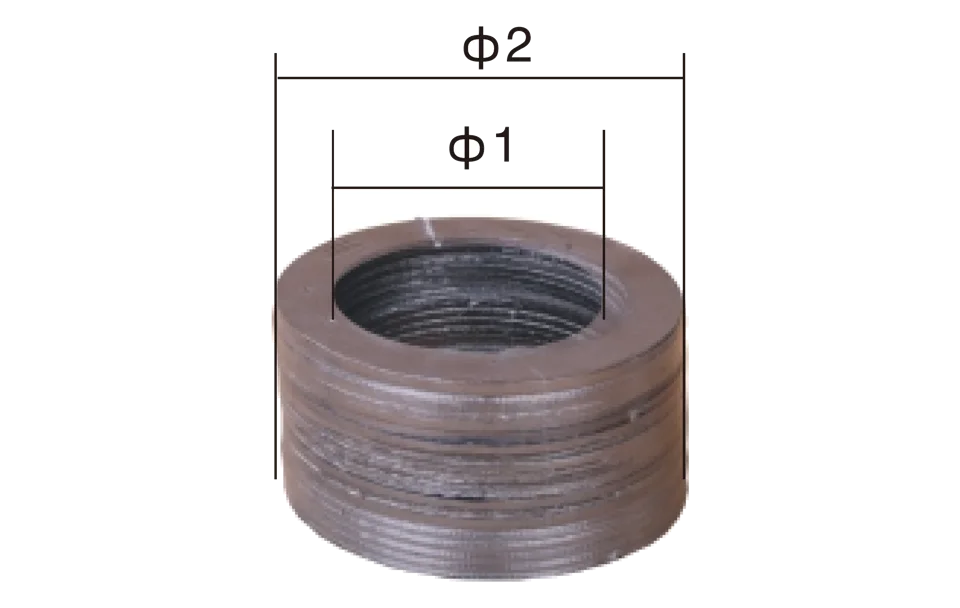

Thin Graphite Gasket
KYG0651
Thin graphite gasket offers flexible sealing across multiple industrial sizes.
Configure enquiry
Select size
Size: 2.5寸
Parameter comparison
Size parameter comparison
Compare 2.5寸, 3寸, 3.5寸, and 4寸.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected size
2.5寸
KYG0651-2.5
| H | 2.4 |
|---|---|
| φ1 | 67.5 |
| φ2 | 94.5 |
Selected size
3寸
KYG0651-3
| H | 2.5 |
|---|---|
| φ1 | 79 |
| φ2 | 106.5 |
Selected size
3.5寸
KYG0651-3.5
| H | 2.5 |
|---|---|
| φ1 | 94 |
| φ2 | 119 |
Selected size
4寸
KYG0651-4
| H | 3.0 |
|---|---|
| φ1 | 108 |
| φ2 | 137 |
Selected size
5寸
KYG0651-5
| H | 3.0 |
|---|---|
| φ1 | 131 |
| φ2 | 157 |
Selected size
6.3寸
KYG0651-6.3
| H | 3.0 |
|---|---|
| φ1 | 163 |
| φ2 | 193 |
Selected size
8.6寸
KYG0651-8.6
| H | 3.0 |
|---|---|
| φ1 | 226 |
| φ2 | 256 |
Selected size
10.5寸
KYG0651-10.5
| H | 3.0 |
|---|---|
| φ1 | 270 |
| φ2 | 295 |
Selected variant
2.5寸
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
2.5寸
Compare variant
3寸
φ1
DifferentSelected variant
Compare variant
φ2
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonSize | ||||||||
|---|---|---|---|---|---|---|---|---|
| H | 2.4 | 2.5 | 2.5 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| φ1 | 67.5 | 79 | 94 | 108 | 131 | 163 | 226 | 270 |
| φ2 | 94.5 | 106.5 | 119 | 137 | 157 | 193 | 256 | 295 |
Specifications
| Product Type | Thin Graphite Gasket |
|---|
Overview
Highlights
- Flexible graphite easily adapts to flange surfaces
- Thin profile suits tight-clearance assemblies
- Performs reliably under thermal cycling
Applications
- Sealing joints in pipelines carrying high-temperature fluids
- Machinery and pump housing gaskets
- Equipment maintenance in power plants and chemical facilities
Overview
The Thin Graphite Gasket is engineered for reliable sealing in demanding industrial environments. Its graphite construction delivers excellent heat resistance and compressibility, making it suitable for complex flange and piping systems.
With a broad range of diameters and thickness options, this gasket is ideal for use where space is limited or a low-profile seal is required without compromising durability.
Typical uses
- Sealing joints in pipelines carrying high-temperature fluids
- Machinery and pump housing gaskets
- Equipment maintenance in power plants and chemical facilities
