KYG0652

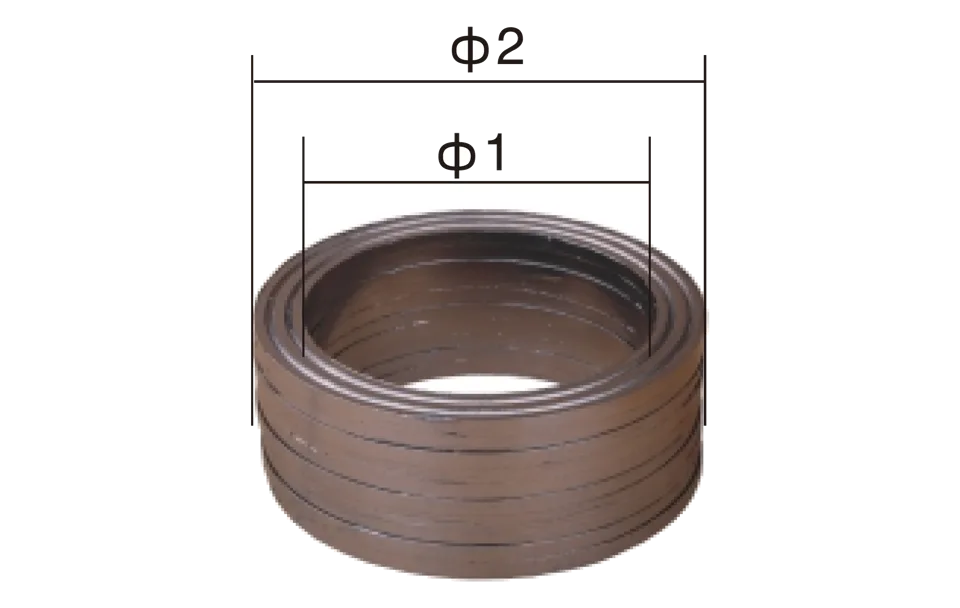

Thick Graphite Gasket
KYG0652
Graphite gasket designed for high temperature, high pressure industrial sealing tasks.
Configure enquiry
Select size
Size: 2.5寸
Parameter comparison
Size parameter comparison
Compare 2.5寸, 3寸, 3.5寸, and 4寸.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected size
2.5寸
KYG0652-2.5
| H | 4.5 |
|---|---|
| φ1 | 67.5 |
| φ2 | 94.5 |
Selected size
3寸
KYG0652-3
| H | 4.5 |
|---|---|
| φ1 | 79 |
| φ2 | 106.5 |
Selected size
3.5寸
KYG0652-3.5
| H | 4.5 |
|---|---|
| φ1 | 94 |
| φ2 | 119 |
Selected size
4寸
KYG0652-4
| H | 4.5 |
|---|---|
| φ1 | 108 |
| φ2 | 137 |
Selected size
5寸
KYG0652-5
| H | 4.5 |
|---|---|
| φ1 | 132 |
| φ2 | 157 |
Selected size
6.3寸
KYG0652-6.3
| H | 4.5 |
|---|---|
| φ1 | 162 |
| φ2 | 188 |
Selected size
8.6寸
KYG0652-8.6
| H | 3.0 |
|---|---|
| φ1 | 226 |
| φ2 | 256 |
Selected size
10.5寸
KYG0652-10.5
| H | 3.0 |
|---|---|
| φ1 | 270 |
| φ2 | 295 |
Selected variant
2.5寸
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
2.5寸
Compare variant
3寸
φ1
DifferentSelected variant
Compare variant
φ2
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonSize | ||||||||
|---|---|---|---|---|---|---|---|---|
| H | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 3.0 | 3.0 |
| φ1 | 67.5 | 79 | 94 | 108 | 132 | 162 | 226 | 270 |
| φ2 | 94.5 | 106.5 | 119 | 137 | 157 | 188 | 256 | 295 |
Specifications
| Material | Graphite |
|---|
Overview
Highlights
- Suitable for high temperature and high pressure
- Thicker profile enhances durability
- Reliable performance with graphite material
Applications
- High-temperature pipeline sealing
- Industrial plant reactor and vessel sealing
- Pressure containment in utility and power installations
Overview
The Thick Graphite Gasket is built for robust sealing under extreme temperature and pressure conditions. Offered in a variety of standard sizes, its thick graphite composition ensures excellent thermal endurance and mechanical stability, making it a go-to option for demanding industrial applications.
Its enhanced thickness allows it to maintain integrity where thinner materials may fail, providing reliable, long-term sealing in pipelines, reactors, and industrial plants.
Typical uses
- High-temperature pipeline sealing
- Industrial plant reactor and vessel sealing
- Pressure containment in utility and power installations
