Inspection & Measurement
Precious Metal Analyzer
KYG1651

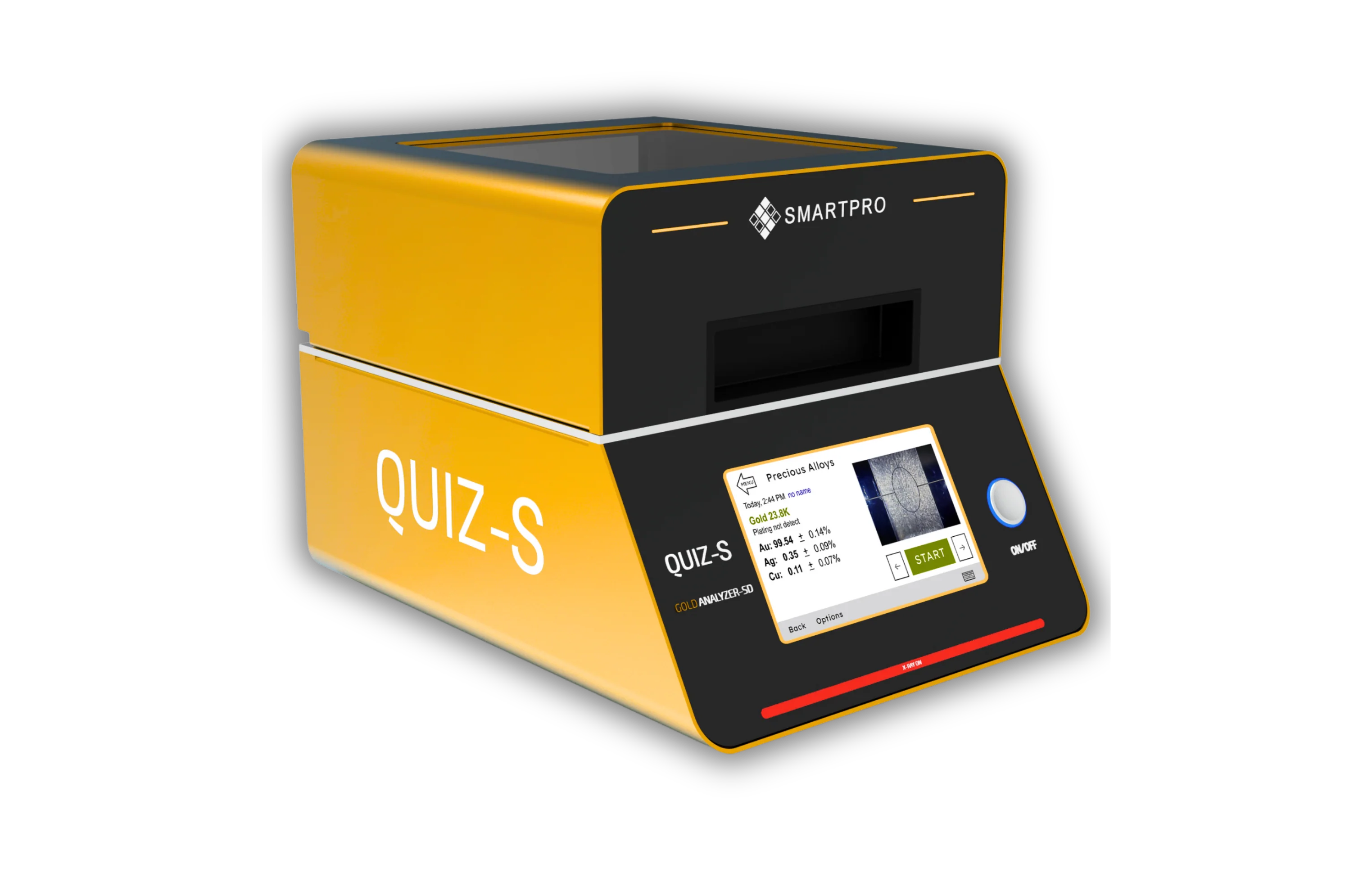

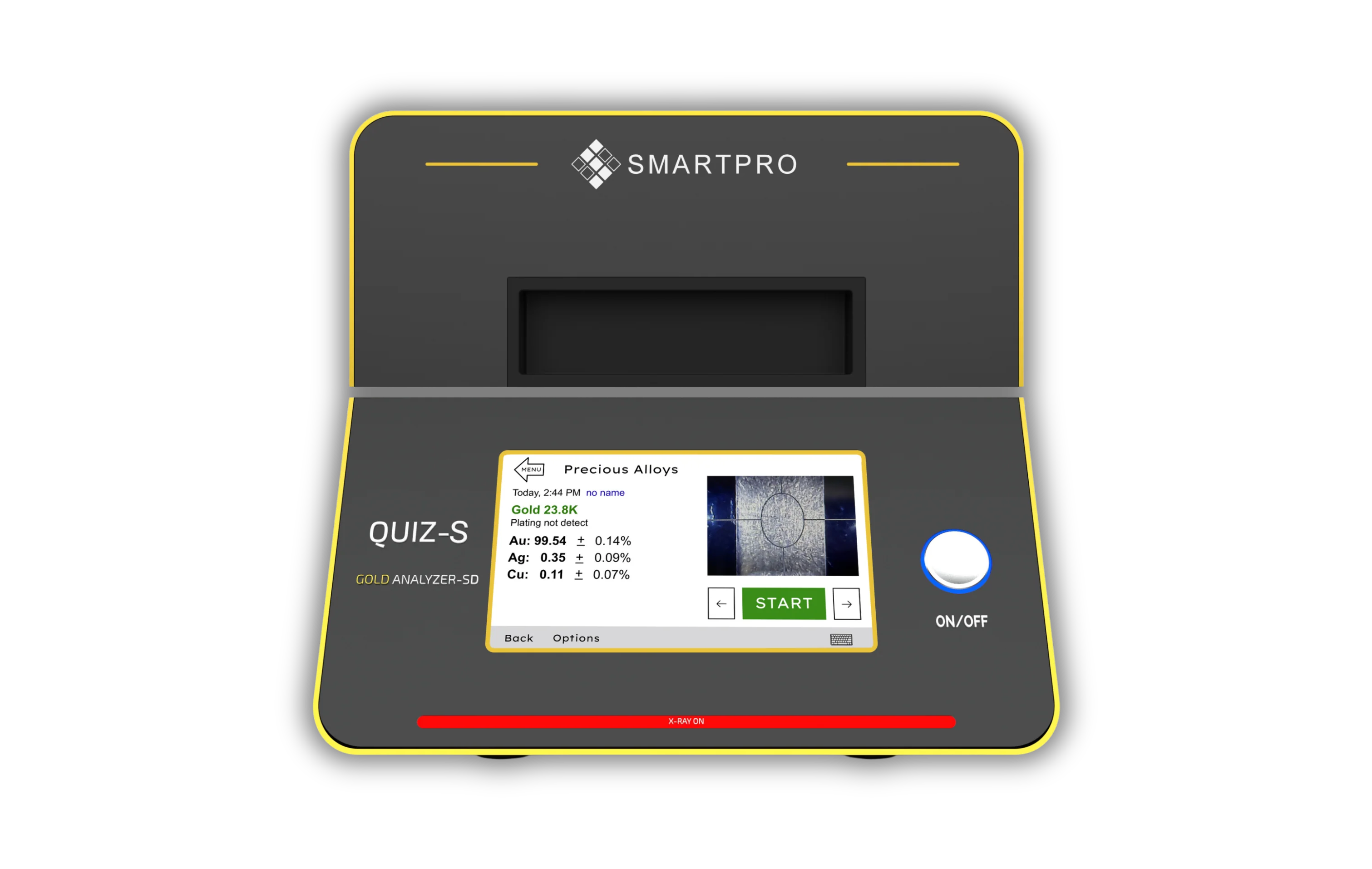

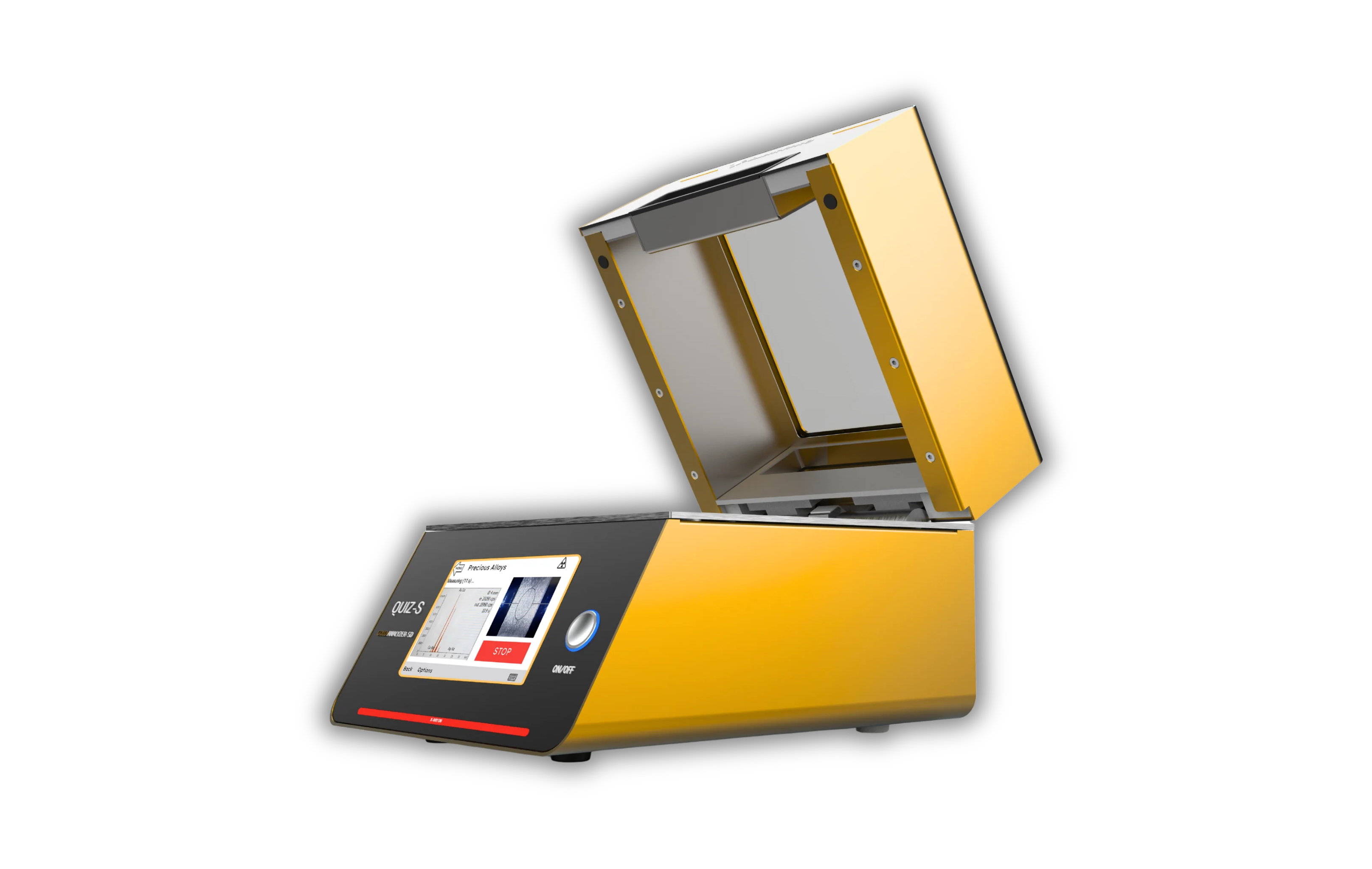

SmartPro QUIZ-S Precious Metal Analyzer
SmartPro · QUIZ-S
SmartPro QUIZ-S Precious Metal Analyzer Compact XRF analyzer for fast, accurate precious metal and alloy verification, offering advanced detection with Si-Pin or SDD detectors.
Configure enquiry
Select option
Detector: SDD
Parameter comparison
Variant parameter comparison
Compare SDD and Si-Pin.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected option
SDD
KYG1651-SDD
| Detectable Elements | 81 elements (from Mg (12) to U (92)) |
|---|---|
| Detector Type | Standard High-resolution SDD detector, 135–145 eV at Mn Kα, Active area 25 mm² |
Selected option
Si-Pin
KYG1651-SI-PIN
| Detectable Elements | 71 elements (from Ti (22) to U (92)) |
|---|---|
| Detector Type | Si-PIN diode detector, Active area 6 mm² |
Selected variant
SDD
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
SDD
Compare variant
Si-Pin
Detector Type
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonDetector | ||
|---|---|---|
| Detectable Elements | 81 elements (from Mg (12) to U (92)) | 71 elements (from Ti (22) to U (92)) |
| Detector Type | Standard High-resolution SDD detector, 135–145 eV at Mn Kα, Active area 25 mm² | Si-PIN diode detector, Active area 6 mm² |
Specifications
| Typical Accuracy (Precious Metals & Jewelry) | <0.10% (application/method dependent) |
|---|---|
| Radiation Safety | Lid interlock auto-shutdown; radiation level <1 µSv/h |
| X-Ray Source | 40 kV microfocus tube, long-life design |
| Collimator | Fixed 1 mm analysis spot |
| Camera System | HD live-view targeting camera with LED illumination |
| Analysis Chamber | Protective X-ray shielded chamber with sample tray |
| User Interface | 5-inch High-resolution touchscreen |
| Operating System | Embedded: Windows CE | PC (optional): Windows XP / Vista / 7 / 8 |
| Connectivity & I/O | USB, MicroSD, Ethernet (LAN), Wi-Fi |
| Power | 100–240 V AC, 50/60 Hz |
| Dimensions (Unit) | 210 mm x 272 mm x 198 mm |
| Dimensions (Chamber) | 160 mm x 174 mm x 74 mm |
| Net Weight | > 5.5 kg |
Overview
Highlights
- Delivers full precious metal composition results in just 10–60 seconds for rapid analysis.
- Select from high-resolution SDD or Si-Pin detector for tailored detection range and accuracy.
- Enhanced safety with lid interlock auto-shutdown and low-radiation chamber for user protection.
Applications
- Fast gold karat identification for jewelry retailers and pawnshops.
- Alloy composition verification for precious metal manufacturers and refiners.
- In-house quality control and inspection in assay offices and laboratories.
Overview
The SmartPro QUIZ-S Precious Metal Analyzer is a compact XRF instrument designed for rapid and reliable gold and alloy verification. Leveraging advanced QUIZ XRF processing algorithms, it provides full precious metal composition results in just 10 to 60 seconds, making it an ideal solution for jewelry retailers, manufacturers, refiners, assay offices, and inspection authorities.
The analyzer features laboratory-grade accuracy, selectable high-resolution SDD or Si-Pin detection, and a precise 1 mm analysis spot supported by an integrated HD camera for confident sample targeting. Its intuitive 5-inch touchscreen interface, user-friendly workflow, and robust safety measures—including automatic lid interlock with radiation protection—ensure both performance and customer confidence for everyday testing needs.
