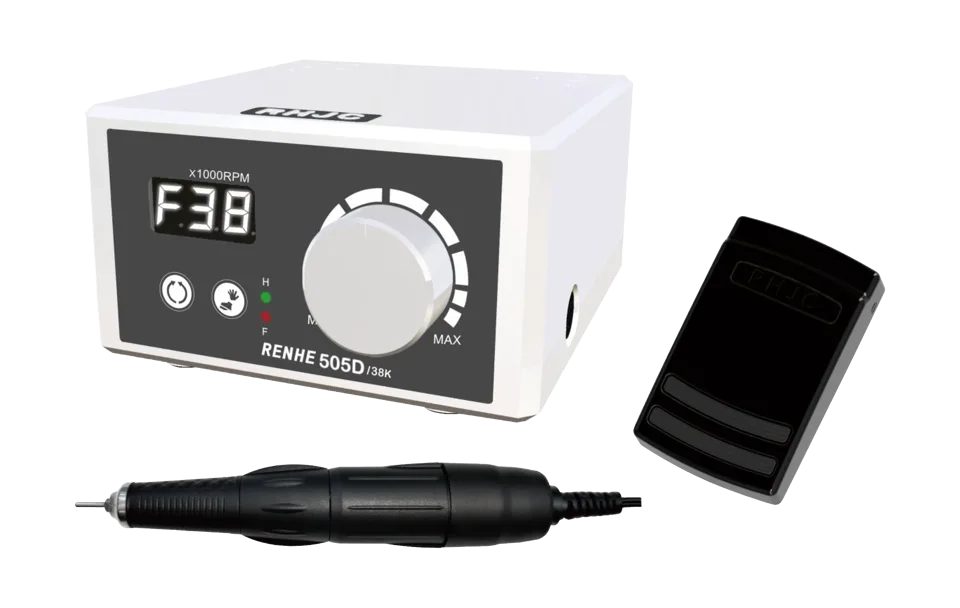

RHJC Renhe 505D / 38K High Speed Brushed Micromotor
RHJC · Renhe 505D / 38K
The RHJC Renhe 505D / 38K High Speed Brushed Micromotor features up to 38,000 RPM, digital speed display, and dual hand/pedal controls for intricate grinding work.
Finishing & Polishing
Specifications
| Max Speed | 38, 000 rpm |
|---|---|
| Output Voltage | 0 ~ 33 V |
| Output Power | 80 W |
| Maximum Torque | 3.2 N·cm |
| Standard Control | ON/OFF pedal |
| Speed Display | Digital |
| Speed/Pedal Control | Hand and pedal control (optional speed pedal available) |
| Rotation Direction | Forward/Reverse |
| Protection Functions | Overload protection, fault prompt |
| Collet Chuck Standard | 2.35 mm (optional 3.0 mm, 3.175 mm) |
| Handpiece Size | L150 × D15 × H28 mm |
| Control Box Size | W120 × L130 × H87 mm |
| Shell Color | Black effect shell (customizable) |
| Specification of One Set | One set |
| Size | 25*24*8 cm |
| Weight | 2.5 kg |
| Carton Specification | 53×41×37 cm (10 sets) |
| Weight (Carton) | 25.8 kg (10 sets) |
Overview
Highlights
- High-performance 80W brush motor with up to 38,000 RPM for precise work.
- Flexible operation with digital speed display, forward/reverse, and optional speed pedal.
- Comprehensive protection with overload and fault prompt functions for safe use.
Applications
- Precision grinding and finishing in dental labs.
- Jewelry and watchmaking deburring and polishing.
- Industrial electronics part machining and shaping.
Overview
The RHJC Renhe 505D / 38K High Speed Brushed Micromotor delivers up to 38,000 RPM for demanding precision grinding, with a digital speed display that provides clear, real-time feedback. It supports both hand and optional foot pedal control, allowing flexible adjustment for different workflow needs.
Forward/reverse rotation, compact design, and comprehensive protection features—such as overload and fault prompts—ensure reliable operation in professional settings like dental labs, jewelry crafting, and electronic assembly.
