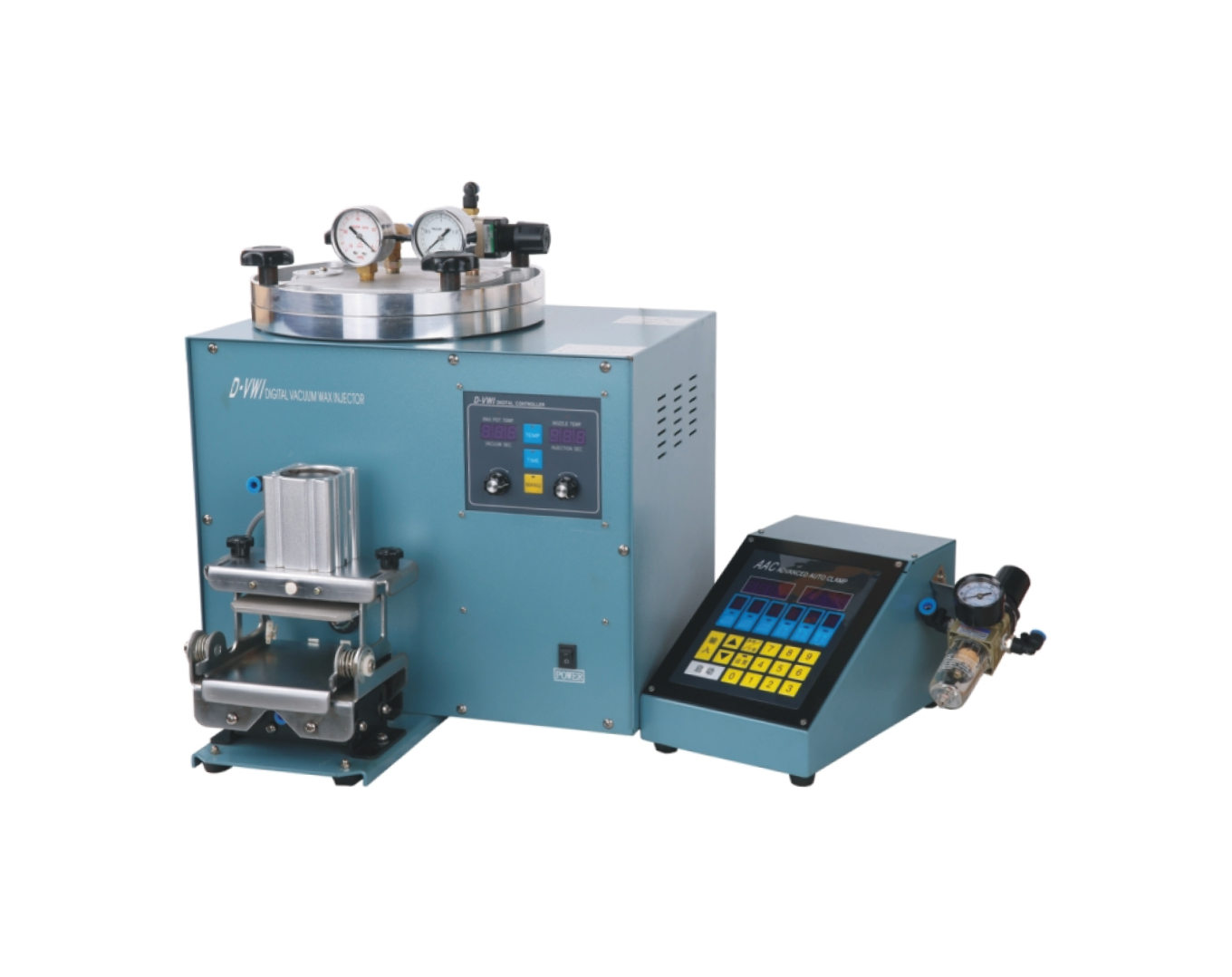

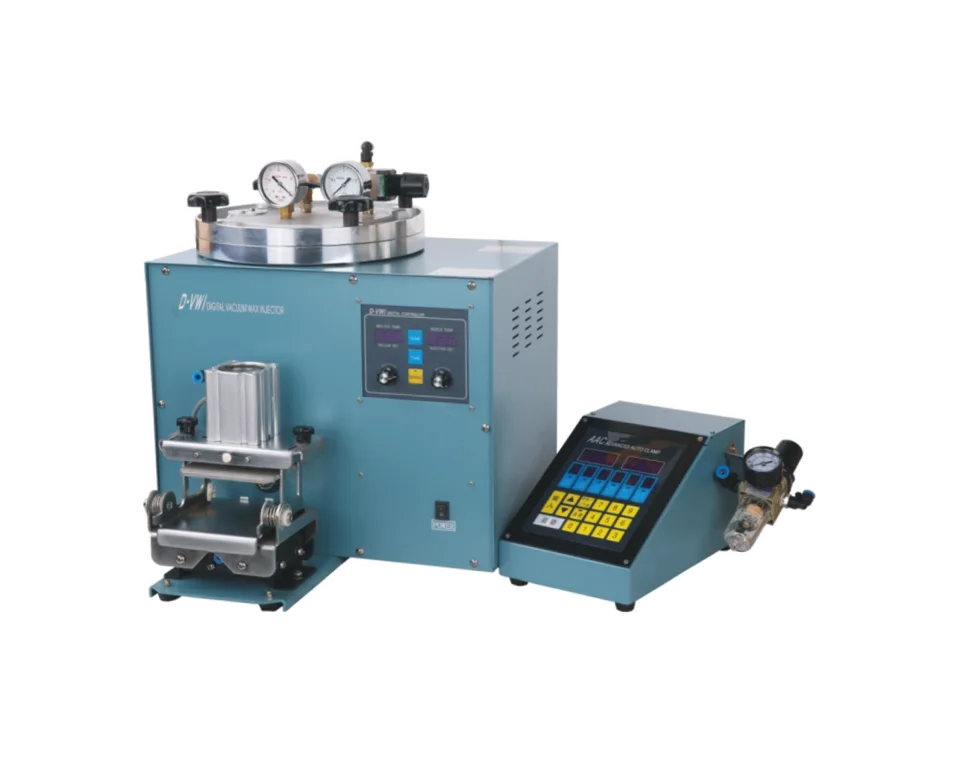

DVWI Automatic Vacuum Wax Injector
DVWI
The DVWI Automatic Vacuum Wax Injector provides accurate, programmable wax injection with 3kg capacity, delivering consistent results for casting and jewelry production.
Waxing & Mould Making
Specifications
| Power Supply | AC 110 V / 220 V 50 Hz / 60 Hz Single phase |
|---|---|
| Power Consumption | 500 W |
| Fuse | 5 A |
| Wax Capacity | about 3 kg |
| Temperature Precision | ±0.2 °C |
| Air Pressure Supply | 4–7 kg/cm² |
| Pressure Range | 0–2 kg/cm² |
| Temperature Display Range | 40–99.9 °C |
| Temperature Adjustment Range | 40–99.9 °C |
| Vacuum Setting Time Range | 0–24.9 seconds |
| Wax Injection Setting Time Range | 0–24.9 seconds |
| Timer Range | 0–99.9 hours |
Overview
Highlights
- Accurate digital control for repeatable injection quality
- Large 3kg wax capacity supports extended operation
- Programmable settings for temperature, pressure, and cycles
Applications
- Precision wax pattern production for jewelry casting
- Automated mold making in investment casting processes
- Consistent batch output for industrial manufacturing environments
Overview
The DVWI Automatic Vacuum Wax Injector offers programmable digital control for precise wax injection, making it an ideal solution for investment casting and jewelry manufacturing. Its intuitive interface allows for accurate adjustment of wax temperature and pressure, ensuring repeatable, high-quality wax patterns.
Featuring a 3kg wax capacity and wide temperature and pressure adjustment ranges, this machine is built for versatility and efficiency in demanding production settings. Reliable operation and programmable cycles enhance workflow consistency, supporting both batch and continuous production environments.
