Casting Preparation & Burnout

Burnout Furnace

KYG0622

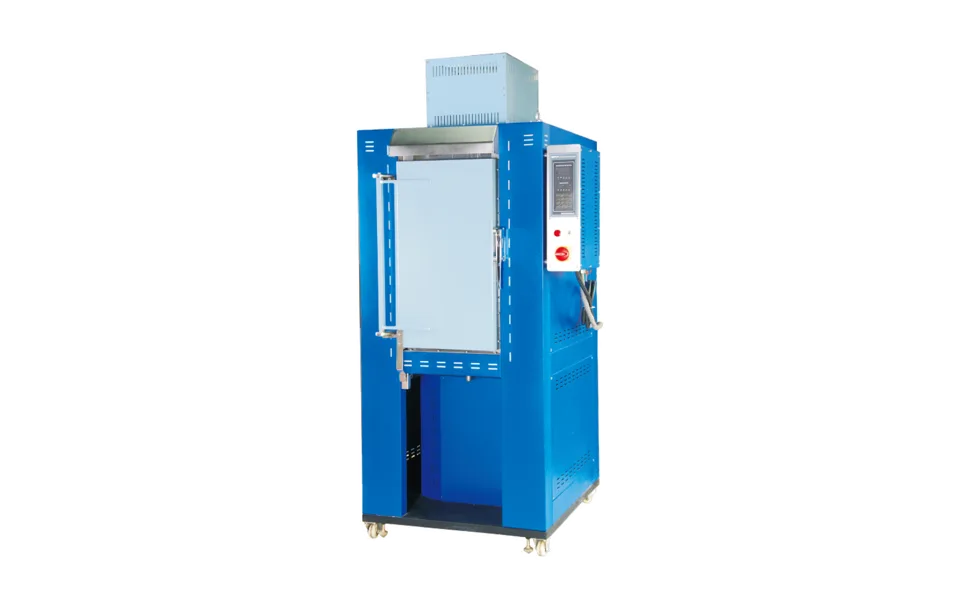

Double-Decker Rotary Electric Furnace

High-capacity rotary furnace with 37 cups for efficient, continuous material processing.

Share product

WhatsApp

Casting Preparation & Burnout

Specifications

Power7KW/380V/50/60Hz
Secondary Burner带二次燃烧器3KW
Max Temperature1100℃ (built-in temperature control)
Rotary Furnace DiskΦ550mm x 2层
Configurable Powder CupΦ101mm(4") 37盘（cups）
Height of Powder Cup上层300mm 下层280mm
External Dimensions1000x850x1830mm
Weight600kg

Overview

Highlights

  • Maximizes productivity with dual rotary layers and 37 cup capacity
  • Independent heating zones ensure consistent results for each batch
  • Engineered for continuous use with stable, robust build

Applications

  • Accelerated batch testing in material science labs
  • High-volume sample ashing in industrial quality control
  • Thermal treatment processes for ceramics and metallurgy

Overview

The Double-Decker Rotary Electric Furnace (37 Cups) is designed for demanding industrial and laboratory environments requiring high-throughput, uniform heating. Its robust construction and dual-level design maximize output while allowing precise control over temperature profiles, making it ideal for continuous batch processing and materials research.
