Casting Preparation & Burnout
Burnout Furnace
KYG0612

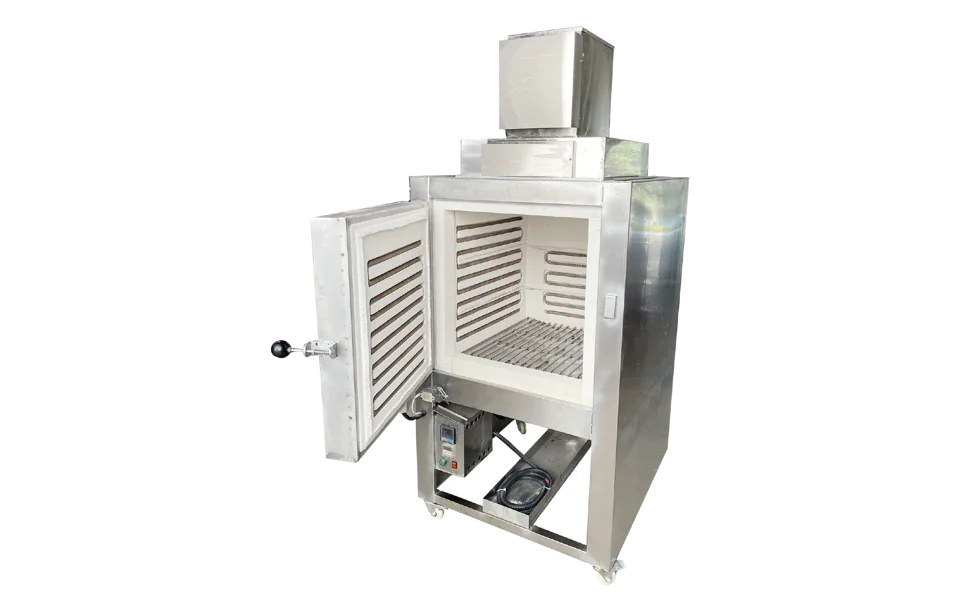

Digital Burnout Furnace (2-40 Flasks)
High-capacity digital burnout furnace with programmable control for up to 40 flasks.
Configure enquiry
Select specification
Capacity: 2 Flasks
Parameter comparison
Variant parameter comparison
Compare 2 Flasks, 4 Flasks, 9 Flasks, and 12 Flasks.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected specification
2 Flasks
KYG0612-2-FLASKS
| Power/Voltage | 2KW/220V |
|---|---|
| Inside Size (L × W × H) | 150 × 300 × 275 mm |
| Outside Size (L × W × H) | 350 × 550 × 570 mm |
Selected specification
4 Flasks
KYG0612-4-FLASKS
| Power/Voltage | 3KW/220V |
|---|---|
| Inside Size (L × W × H) | 300 × 300 × 275 mm |
| Outside Size (L × W × H) | 500 × 550 × 570 mm |
Selected specification
9 Flasks
KYG0612-9-FLASKS
| Power/Voltage | 4KW/220V |
|---|---|
| Inside Size (L × W × H) | 420 × 460 × 305 mm |
| Outside Size (L × W × H) | 660 × 850 × 1160 mm |
Selected specification
12 Flasks
KYG0612-12-FLASKS
| Power/Voltage | 5.5KW/380V |
|---|---|
| Inside Size (L × W × H) | 300 × 460 × 550 mm |
| Outside Size (L × W × H) | 580 × 820 × 1450 mm |
Selected specification
24 Flasks
KYG0612-24-FLASKS
| Power/Voltage | 8KW/380V |
|---|---|
| Inside Size (L × W × H) | 480 × 590 × 550 mm |
| Outside Size (L × W × H) | 750 × 960 × 940 mm |
Selected specification
32 Flasks
KYG0612-32-FLASKS
| Power/Voltage | 12KW/380V |
|---|---|
| Inside Size (L × W × H) | 600 × 600 × 600 mm |
| Outside Size (L × W × H) | 920 × 1050 × 1500 mm |
Selected specification
40 Flasks
KYG0612-40-FLASKS
| Power/Voltage | 13KW/380V |
|---|---|
| Inside Size (L × W × H) | 610 × 730 × 630 mm |
| Outside Size (L × W × H) | 910 × 1250 × 1530 mm |
Selected variant
2 Flasks
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
2 Flasks
Compare variant
4 Flasks
Inside Size (L × W × H)
DifferentSelected variant
Compare variant
Outside Size (L × W × H)
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonCapacity | |||||||
|---|---|---|---|---|---|---|---|
| Power/Voltage | 2KW/220V | 3KW/220V | 4KW/220V | 5.5KW/380V | 8KW/380V | 12KW/380V | 13KW/380V |
| Inside Size (L × W × H) | 150 × 300 × 275 mm | 300 × 300 × 275 mm | 420 × 460 × 305 mm | 300 × 460 × 550 mm | 480 × 590 × 550 mm | 600 × 600 × 600 mm | 610 × 730 × 630 mm |
| Outside Size (L × W × H) | 350 × 550 × 570 mm | 500 × 550 × 570 mm | 660 × 850 × 1160 mm | 580 × 820 × 1450 mm | 750 × 960 × 940 mm | 920 × 1050 × 1500 mm | 910 × 1250 × 1530 mm |
Specifications
| Capacity | 40 Flasks |
|---|---|
| Power/Voltage | 13KW/380V |
| Outside Size (L × W × H) | 910 × 1250 × 1530 mm |
| Inside Size (L × W × H) | 610 × 730 × 630 mm |
Overview
Highlights
- Handles large batch processing for higher productivity
- Ensures uniform heating for consistent burnout results
- Programmable operation minimizes manual oversight
Applications
- Jewelry casting and investment burnout
- Dental laboratory flask processing
- Ceramics and small-scale metalwork
Overview
Engineered for efficient and precise burnout processing, the Digital Burnout Furnace (2-40 Flasks) features advanced programmable controls, enabling accurate cycle management for industrial and laboratory environments. Its spacious chamber is designed to handle large batch processing, making it an excellent choice where high throughput is essential.
A robust heating system and quality insulation deliver rapid temperature uniformity and stable operation, crucial for consistent results in jewelry casting, dental flask processing, or ceramics.
Typical uses
This furnace is relied on for critical tasks in metal casting, investment burnout, and manufacturing workflows that demand reliable heat treatment for multiple flasks in each run.
