Casting Preparation & Burnout
Burnout Furnace
KYG0605

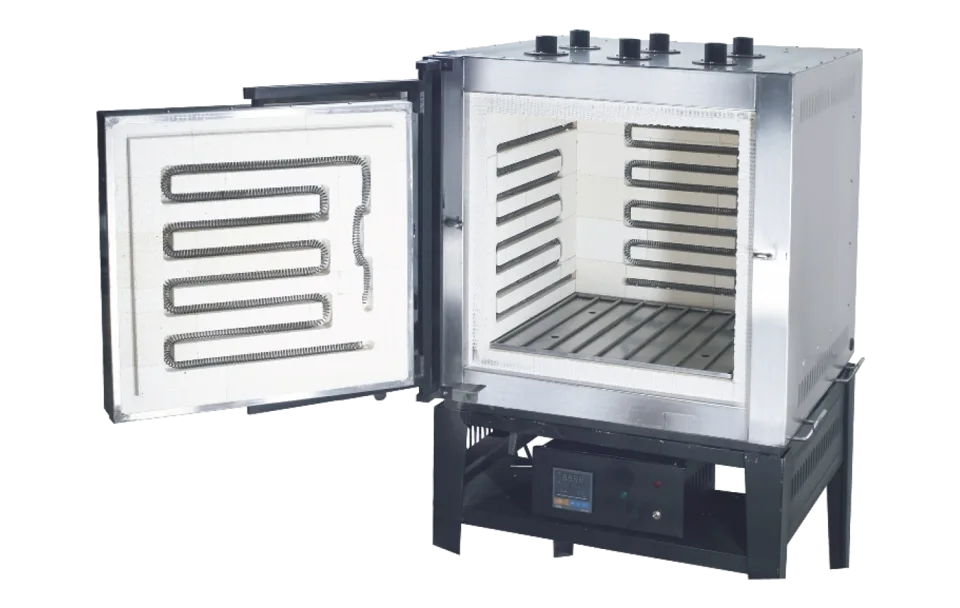

Digital Burnout Furnace (2-40 Flasks)
Programmable burnout furnace with digital controls, available in sizes for 2 to 40 flasks.
Configure enquiry
Select size
Specification: 2 flasks, 4 x 9 inch
Parameter comparison
Size parameter comparison
Compare 2 flasks, 4 x 9 inch, 4 flasks, 4 x 9 inch, 6 flasks, 4 x 9 inch, and 12 flasks, 4 x 9 inch.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected size
2 flasks, 4 x 9 inch
KYG0605-2-FLASKS-4-X-9-INCH
| Power | 2.5KW |
|---|---|
| Voltage | 220V |
| Inside Size | 300 × 150 × 260mm |
| Net Weight | 49kg |
| Outside Size | 490 × 450 × 475mm |
Selected size
4 flasks, 4 x 9 inch
KYG0605-4-FLASKS-4-X-9-INCH
| Power | 3KW |
|---|---|
| Voltage | 220V |
| Inside Size | 300 × 300 × 270mm |
| Net Weight | 100kg |
| Outside Size | 700 × 550 × 750mm |
Selected size
6 flasks, 4 x 9 inch
KYG0605-6-FLASKS-4-X-9-INCH
| Power | 4KW |
|---|---|
| Voltage | 220V |
| Inside Size | 450 × 300 × 270mm |
| Net Weight | 125kg |
| Outside Size | 800 × 550 × 750mm |
Selected size
12 flasks, 4 x 9 inch
KYG0605-12-FLASKS-4-X-9-INCH
| Power | 6KW |
|---|---|
| Voltage | 380V |
| Inside Size | 450 × 300 × 480mm |
| Net Weight | 165kg |
| Outside Size | 800 × 550 × 750mm |
Selected size
18 flasks, 4 x 9 inch
KYG0605-18-FLASKS-4-X-9-INCH
| Power | 9KW |
|---|---|
| Voltage | 380V |
| Inside Size | 450 × 430 × 480mm |
| Net Weight | 190kg |
| Outside Size | 800 × 550 × 750mm |
Selected size
24 flasks, 4 x 9 inch
KYG0605-24-FLASKS-4-X-9-INCH
| Power | 9KW |
|---|---|
| Voltage | 380V |
| Inside Size | 570 × 440 × 480mm |
| Net Weight | 215kg |
| Outside Size | 900 × 720 × 750mm |
Selected size
32 flasks, 4 x 9 inch
KYG0605-32-FLASKS-4-X-9-INCH
| Power | 12KW |
|---|---|
| Voltage | 380V |
| Inside Size | 580 × 580 × 530mm |
| Net Weight | 285kg |
| Outside Size | 970 × 840 × 850mm |
Selected size
40 flasks, 4 x 9 inch
KYG0605-40-FLASKS-4-X-9-INCH
| Power | 13KW |
|---|---|
| Voltage | 380V |
| Inside Size | 700 × 580 × 550mm |
| Net Weight | 350kg |
| Outside Size | 1040 × 840 × 850mm |
Selected size
Secondary Burner
KYG0605-SECONDARY-BURNER
| Power | 3KW |
|---|---|
| Voltage | 220V |
| Inside Size | — |
| Net Weight | 30kg |
| Outside Size | 480 × 330 × 490mm |
Selected variant
2 flasks, 4 x 9 inch
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
2 flasks, 4 x 9 inch
Compare variant
4 flasks, 4 x 9 inch
Voltage
DifferentSelected variant
Compare variant
Inside Size
DifferentSelected variant
Compare variant
Net Weight
DifferentSelected variant
Compare variant
Outside Size
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonSpecification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Power | 2.5KW | 3KW | 4KW | 6KW | 9KW | 9KW | 12KW | 13KW | 3KW |
| Voltage | 220V | 220V | 220V | 380V | 380V | 380V | 380V | 380V | 220V |
| Inside Size | 300 × 150 × 260mm | 300 × 300 × 270mm | 450 × 300 × 270mm | 450 × 300 × 480mm | 450 × 430 × 480mm | 570 × 440 × 480mm | 580 × 580 × 530mm | 700 × 580 × 550mm | — |
| Net Weight | 49kg | 100kg | 125kg | 165kg | 190kg | 215kg | 285kg | 350kg | 30kg |
| Outside Size | 490 × 450 × 475mm | 700 × 550 × 750mm | 800 × 550 × 750mm | 800 × 550 × 750mm | 800 × 550 × 750mm | 900 × 720 × 750mm | 970 × 840 × 850mm | 1040 × 840 × 850mm | 480 × 330 × 490mm |
Specifications
| Wooden Box Size | L1040 × W980 × H970mm |
|---|---|
| Packed Weight | 285kg |
Overview
Highlights
- Precise digital temperature programming for reliable results
- Chamber sizes and power options tailored for different production scales
- Rugged insulated construction for dependable high-temperature operation
Applications
- Jewelry casting and lost-wax processes
- Dental prosthetic production
- Heat treatment in small manufacturing
Overview
Digital Burnout Furnace (2-40 Flasks) is engineered for precision and consistency in high-temperature tasks such as jewelry casting, dental labs, and small-scale manufacturing. Its programmable digital controls enable accurate temperature management, optimizing results for demanding burnout and heat-treatment cycles.
Available in multiple chamber sizes and power configurations, this furnace efficiently supports workflows that require handling anywhere from 2 to 40 flasks per cycle, making it adaptable to varying production volumes.
Durable insulation ensures chamber reliability at sustained high temperatures, while the digital interface enables efficient, repeatable process settings for superior outcomes.
Typical uses
- Ideal for burnout operations in jewelry and dental industries
- Supports lost-wax casting and precision mold work
- Useful for small-part manufacturing and heat treating
