Finishing & Polishing
Barrel Polishing Machine
KYG0335
Wet Type Polishing Tumbler (Single/Double/Triple)
Durable wet polishing tumbler with flexible single, double, or triple barrel options for versatile finishing tasks.
Configure enquiry
Select model
Model: VA18
Parameter comparison
Model parameter comparison
Compare VA18, V18, VA18, and VA36.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected model
VA18
KYG0335-VA18-1
| Power | 0.75KW |
|---|---|
| Working Capacity | 14L |
| Voltage | 220V/50-60HZ |
| Overall Dimension | 690×850×1440mm |
| Weight | 150KG |
| Volume | 18L |
Selected model
V18
KYG0335-V18-2
| Power | 2×0.75KW |
|---|---|
| Working Capacity | 2×14L |
| Voltage | 220V/50-60HZ |
| Overall Dimension | 1170×850×1440mm |
| Weight | 280KG |
| Volume | 2×18L |
Selected model
VA18
KYG0335-VA18-3
| Power | 3×0.75KW |
|---|---|
| Working Capacity | 3×14L |
| Voltage | 220V/50-60HZ |
| Overall Dimension | 1680×850×1440mm |
| Weight | 410KG |
| Volume | 3×18L |
Selected model
VA36
KYG0335-VA36-1
| Power | 2.20KW |
|---|---|
| Working Capacity | 28L |
| Voltage | 380V/50-60HZ |
| Overall Dimension | 880×780×1450mm |
| Weight | 210KG |
| Volume | 36L |
Selected model
VA36
KYG0335-VA36-2
| Power | 2×2.20KW |
|---|---|
| Working Capacity | 2×28L |
| Voltage | 380V/50-60HZ |
| Overall Dimension | 1480×780×1450mm |
| Weight | 380KG |
| Volume | 2×36L |
Selected model
VA36
KYG0335-VA36-3
| Power | 3×2.20KW |
|---|---|
| Working Capacity | 3×28L |
| Voltage | 380V/50-60HZ |
| Overall Dimension | 2120×780×1450mm |
| Weight | 540KG |
| Volume | 3×36L |
Selected variant
VA18
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
VA18
Compare variant
V18
Working Capacity
DifferentSelected variant
Compare variant
Voltage
DifferentSelected variant
Compare variant
Overall Dimension
DifferentSelected variant
Compare variant
Weight
DifferentSelected variant
Compare variant
Volume
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonModel | ||||||
|---|---|---|---|---|---|---|
| Power | 0.75KW | 2×0.75KW | 3×0.75KW | 2.20KW | 2×2.20KW | 3×2.20KW |
| Working Capacity | 14L | 2×14L | 3×14L | 28L | 2×28L | 3×28L |
| Voltage | 220V/50-60HZ | 220V/50-60HZ | 220V/50-60HZ | 380V/50-60HZ | 380V/50-60HZ | 380V/50-60HZ |
| Overall Dimension | 690×850×1440mm | 1170×850×1440mm | 1680×850×1440mm | 880×780×1450mm | 1480×780×1450mm | 2120×780×1450mm |
| Weight | 150KG | 280KG | 410KG | 210KG | 380KG | 540KG |
| Volume | 18L | 2×18L | 3×18L | 36L | 2×36L | 3×36L |
Specifications

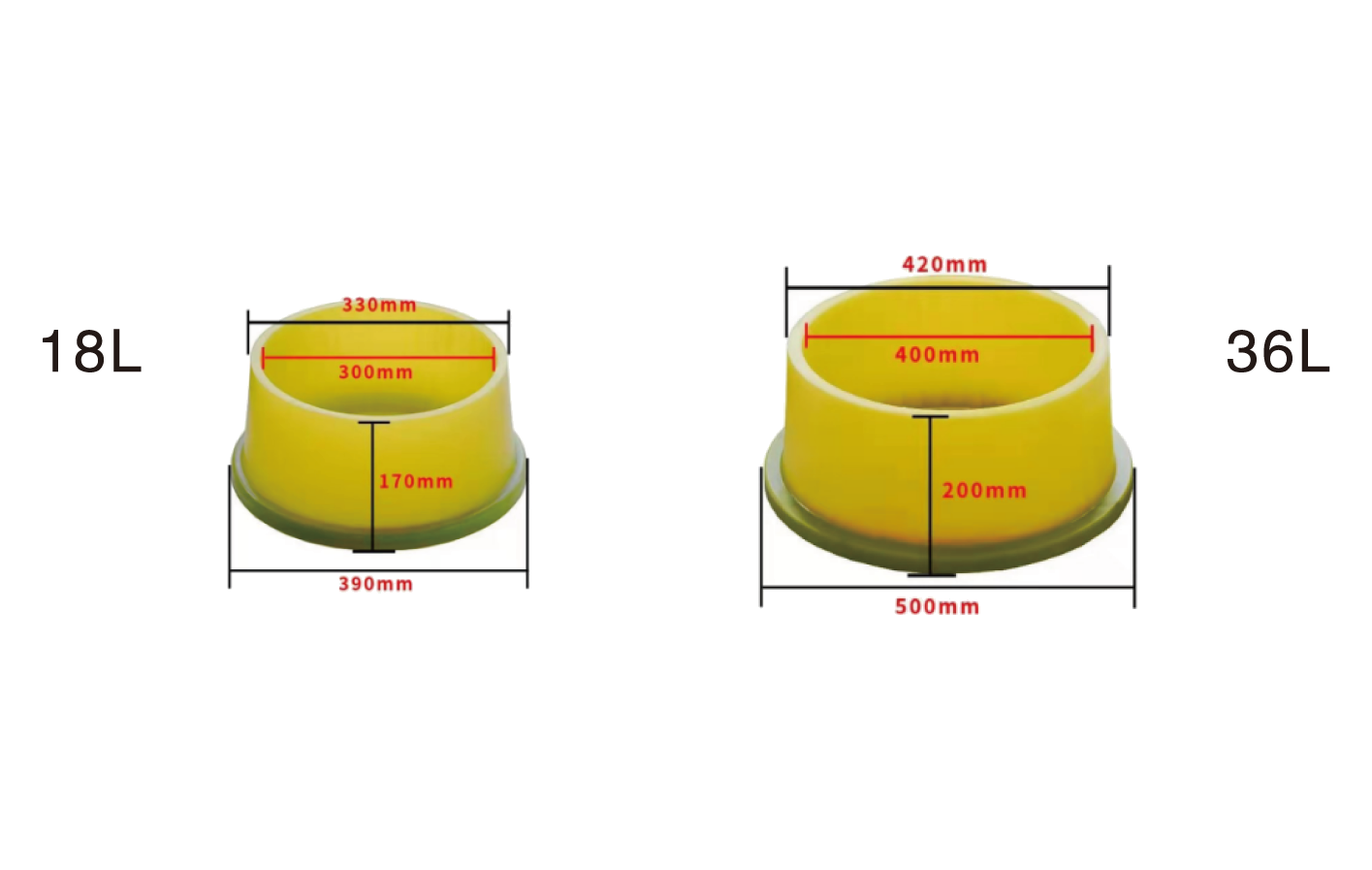

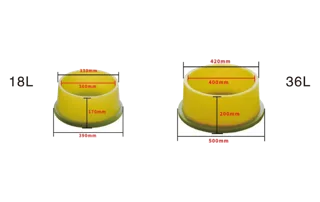

| Volume | 18L / 36L (single barrel) |
|---|---|
| Voltage | 220V or 380V / 50-60Hz |
| Power | 0.75KW (18L) / 2.20KW (36L) |
| Overall Dimension | 690×850×1440mm to 2120×780×1450mm (configuration-dependent) |
| Weight | 150KG to 540KG (configuration-dependent) |
Overview
Highlights
- Durable alloy construction withstands heavy use
- Flexible barrel options match batch sizes and throughput needs
- Resource-saving water circulation system improves cost efficiency
Applications
- Surface polishing of metal parts in manufacturing
- Deburring and edge rounding for CNC-machined components
- Batch processing multiple workpieces for consistent finishing
Overview
Wet Type Polishing Tumbler (Single/Double/Triple) is engineered for reliable and efficient finishing, offering single, double, or triple barrel configurations. Its robust structure, made with high wear-resistant alloy components, ensures longevity and optimal performance across demanding polishing operations.
A built-in circulating water system reduces water usage and enhances the recovery of polishing media, supporting both cost-efficiency and environmental responsibility. The machine suits a wide spectrum of finishing needs—accommodating wet or dry processes—making it an ideal solution for workshops handling varying batch sizes and task complexities.
Typical uses
This tumbler is commonly used for surface polishing, burr removal, and finishing of small and medium-sized metal components across machinery, tooling, and general manufacturing industries.
