KYG0705

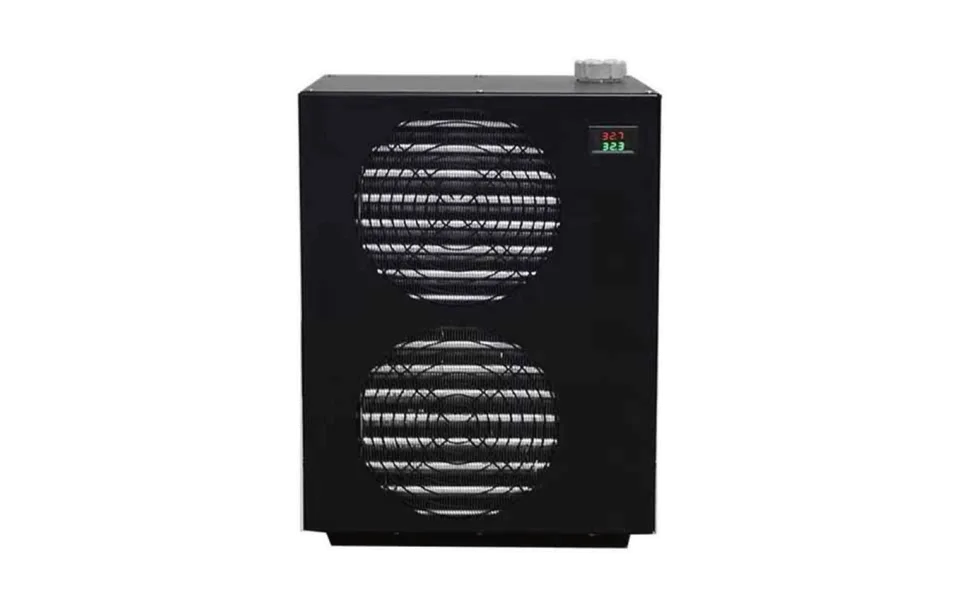

Water Cooling Machine
Industrial water chiller designed for reliable cooling in smelting power supply systems.
Configure enquiry
Select specification
Capacity/Model: 4L
Parameter comparison
Variant parameter comparison
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected specification
4L
KYG0705-4L
| Operating Power | 130W |
|---|---|
| Gross Weight | 18kg |
| Outline Dimension | 345*316*495 mm |
| Water Cycle | 0.8L/min |
Selected specification
5.5L
KYG0705-5.5L
| Operating Power | 220V/200W |
|---|---|
| Gross Weight | 28kg |
| Outline Dimension | 345*290*720 mm |
| Water Cycle | 1.2L/min |
Selected variant
4L
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
4L
Compare variant
5.5L
Gross Weight
DifferentSelected variant
Compare variant
Outline Dimension
DifferentSelected variant
Compare variant
Water Cycle
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonCapacity/Model | ||
|---|---|---|
| Operating Power | 130W | 220V/200W |
| Gross Weight | 18kg | 28kg |
| Outline Dimension | 345*316*495 mm | 345*290*720 mm |
| Water Cycle | 0.8L/min | 1.2L/min |
Specifications
| Working Power Supply | Power supply by smelting power supply |
|---|---|
| Operating Power | 130W / 220V/200W |
| Water Capacity | 4L / 5.5L |
| Water Cycle | 0.8L/min / 1.2L/min |
| Inlet Water Temperature | ≤80°C |
| Effluent Temperature | 35–45°C |
| Outline Dimension | 345*316*495 mm / 345*290*720 mm |
| Gross Weight of Machine | 18kg / 28kg |
Overview
Highlights
- Dual capacity options adapt to varied cooling demands
- Engineered for continuous duty in tough environments
- Withstands high inlet water temperatures for industrial reliability
Applications
- Industrial power supply and smelting equipment cooling
- Process temperature control in manufacturing
- Efficient cooling for high-heat industrial machinery
Overview
This industrial water cooling machine is engineered for demanding environments where maintaining precise temperature control is critical, such as in smelting power supply systems and industrial manufacturing lines. By offering dual capacity options, it provides reliable and efficient water-based cooling for continuous operations where equipment protection and process stability are essential. This robust system is designed to handle the high temperatures of industrial applications, helping prevent overheating and prolonging the service life of vital machinery.
