Casting Preparation & Burnout
Vacuum Investing Machine
KYG0735

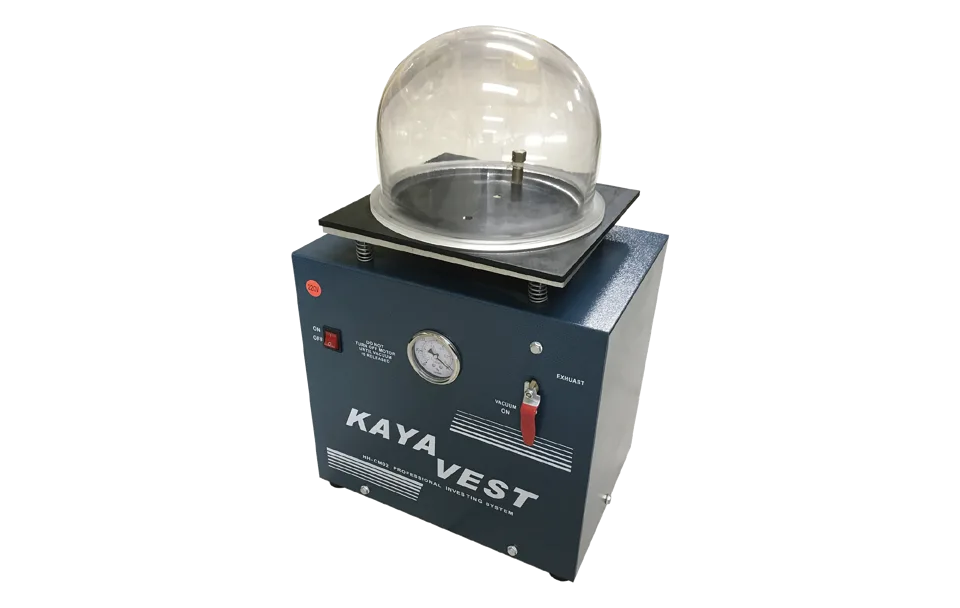

Vacuum Investing Machine 2L/4L
KAYA VEST · HH-CM02
Vacuum investing machine with 2L/4L capacity, dual voltage, and compact footprint for casting preparation.
Configure enquiry
Select specification
Capacity: 2L
Parameter comparison
Variant parameter comparison
Compare 2L and 4L.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected specification
2L
KYG0735-2L
| Casting Power | 375W |
|---|---|
| Dimension | 380 x 280 x 460 mm |
| Gross Weight | 27.5 kg |
| Machine Shipping Dimension | 650 x 410 x 550 mm |
| Maximum Casting Flasks | 3.5"/4" x 6" |
Selected specification
4L
KYG0735-4L
| Casting Power | 750W |
|---|---|
| Dimension | 480 x 300 x 470 mm |
| Gross Weight | 40 kg |
| Machine Shipping Dimension | 885 x 355 x 515 mm |
| Maximum Casting Flasks | 3.5"/4" x 7" |
Selected variant
2L
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
2L
Compare variant
4L
Dimension
DifferentSelected variant
Compare variant
Gross Weight
DifferentSelected variant
Compare variant
Machine Shipping Dimension
DifferentSelected variant
Compare variant
Maximum Casting Flasks
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonCapacity | ||
|---|---|---|
| Casting Power | 375W | 750W |
| Dimension | 380 x 280 x 460 mm | 480 x 300 x 470 mm |
| Gross Weight | 27.5 kg | 40 kg |
| Machine Shipping Dimension | 650 x 410 x 550 mm | 885 x 355 x 515 mm |
| Maximum Casting Flasks | 3.5"/4" x 6" | 3.5"/4" x 7" |
Specifications
| Casting Power | 375W (2L) / 750W (4L) |
|---|---|
| Voltage | 220V/110V |
| Investment Plate Size | 280 x 280 mm |
| Bell Jar Size | φ280 x H200 mm |
Overview
Highlights
- Choice of 2L or 4L to match different casting volumes
- Works with both 220V and 110V, eliminating voltage concerns
- Optimizes workspace with a compact, streamlined design
Applications
- Dental laboratories
- Jewelry casting workshops
- Industrial material preparation processes
Overview
Vacuum Investing Machine 2L/4L is engineered for professional casting applications requiring high-quality investment preparation. It delivers consistent vacuum conditions, ensuring bubble-free, homogeneous material—crucial for precise dental, jewelry, and industrial molds. Its dual-capacity option (2L or 4L) allows users to choose the right size for their workload, while its compact structure helps maximize workspace efficiency.
Operators benefit from intuitive controls and a robust bell jar, supporting reliable, repeatable investment cycles. The machine accommodates both 220V and 110V inputs, ideal for diverse global settings.
Typical uses
- Dental and jewelry investment casting setups
- Research and teaching laboratories handling vacuum-based processes
- Production environments demanding flexible batch sizes
