Welding, Laser & Engraving
Fiber Laser Marking Machine
KYG0771

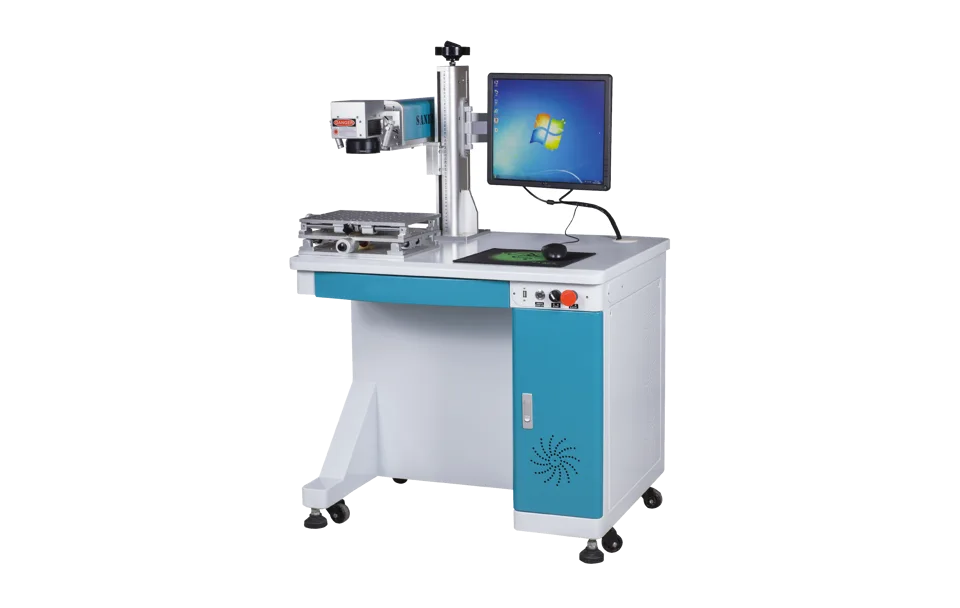

SANEI Fiber Laser Marking Machine
Industrial fiber laser marker for fast, high-precision marking across a variety of materials.
Configure enquiry
Select option
Power: 10W
Parameter comparison
Variant parameter comparison
Compare 10W, 20W, 30W, and 50W.
Small screens show the selected variant first. Swipe the variant chips to switch.
Selected option
10W
KYG0771-10W
| Machine Power Consumption | 500W |
|---|---|
| Beam Quality (M2) | <2 |
| Marking Depth | ≤0.3mm |
Selected option
20W
KYG0771-20W
| Machine Power Consumption | 500W |
|---|---|
| Beam Quality (M2) | <2 |
| Marking Depth | ≤0.3mm |
Selected option
30W
KYG0771-30W
| Machine Power Consumption | 500W |
|---|---|
| Beam Quality (M2) | <3 |
| Marking Depth | ≤0.5mm |
Selected option
50W
KYG0771-50W
| Machine Power Consumption | 1000W |
|---|---|
| Beam Quality (M2) | <5 |
| Marking Depth | ≤1.0mm |
Selected variant
10W
The selected variant stays on the left. Pick one more variant to compare side by side.
Selected variant
10W
Compare variant
20W
Beam Quality (M2)
DifferentSelected variant
Compare variant
Marking Depth
DifferentSelected variant
Compare variant
These two variants do not differ across the visible parameters.
View full comparison table
| Parameter comparisonPower | ||||
|---|---|---|---|---|
| Machine Power Consumption | 500W | 500W | 500W | 1000W |
| Beam Quality (M2) | <2 | <2 | <3 | <5 |
| Marking Depth | ≤0.3mm | ≤0.3mm | ≤0.5mm | ≤1.0mm |
Specifications
| Laser Power Options | 10 W, 20 W, 30 W, 50 W |
|---|---|
| Laser Wavelength | 1060nm |
| Repetition Frequency | 0-1000kHz |
| Beam Quality (M2) | <2 (10 W / 20 W), <3 (30 W), <5 (50 W) |
| Marking Speed | ≤7000 mm/s |
| Minimum Line Width | 0.01 mm |
| Minimum Character | 0.15 mm |
| Repetition Accuracy | ±0.002 |
| Power Supply | AC 90-260 V / 50Hz-60 Hz |
| Machine Power Consumption | 500 W (10 W / 20 W / 30 W), 1000 W (50 W) |
| Marking Depth | ≤0.3 mm (10 W / 20 W / 30 W), ≤1.0 mm (50 W) |
| Operating System | Win98/Win2000/WinXP |
| Cooling Method | Built-in air cooling |
| Control Interface | Standard USB |
| Marking Area | 30 mm / 30mm–300 mm / 300 mm |
| File Format | All font types in Windows OS |
Overview
Highlights
- Delivers crisp, permanent markings that resist wear and fading
- Maximizes productivity with high marking speeds and minimal downtime
- Flexible for small batches or large-scale production runs
Applications
- Traceable marking of metal parts in automotive and aerospace manufacturing
- Permanent branding and logo engraving for consumer products
- Compliance and serial number marking for electronic or medical equipment
Overview
SANEI Fiber Laser Marking Machine deliver permanent, high-contrast marks on metals and plastics, making them essential for traceability, branding, and identification in manufacturing. They offer rapid, maintenance-free operation and are valued for both their accuracy and adaptability across industries.
With multiple power levels to choose from, this machine can be configured to suit small-scale workshops or demanding production lines. It integrates seamlessly into modern workflows with user-friendly controls and software compatibility for streamlined operation.
